What Is the Difference Between Step-Up and Step-Down Transformers?

At a Glance

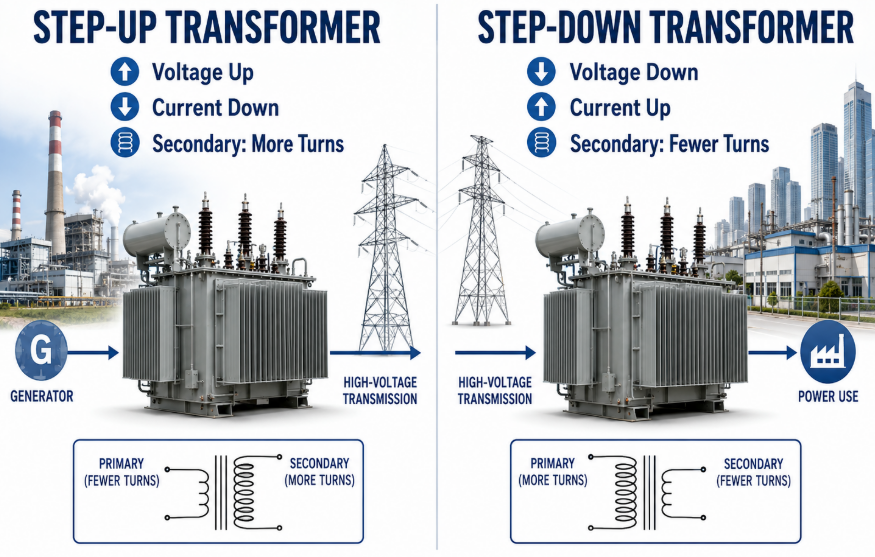

The fundamental difference between a step-up and a step-down transformer lies in their voltage transformation ratio: a step-up configuration raises the voltage from primary to secondary windings while lowering current, whereas a step-down configuration reduces high input voltage to a lower, safer output level while increasing the current capacity for localized commercial and industrial operations.

1. What Is a Step-Up Transformer and How Does It Work?

A step-up configuration of a Power Transformer serves the primary objective of raising electrical voltage from a lower input value to a significantly higher output value through optimized electromagnetic winding ratios.

In high-capacity utility grids, a step-up Power Transformer plays a pivotal role in bridging generation plants with transmission infrastructure. When electrical energy is generated at modern power stations, the output voltage typically resides in a moderate range, often between 11 kilovolts and 25 kilovolts. Attempting to transmit electricity over hundreds of miles at these generation-level voltages would result in massive energy losses due to line resistance, dissipating substantial portions of the generated energy as wasted ambient heat. To circumvent this thermodynamic limitation, a step-up Power Transformer is deployed immediately at the generation substation to step up the voltage to extra-high voltage or ultra-high voltage levels, allowing efficient cross-country distribution.

The operational framework of this system is governed strictly by Faraday's Law of Electromagnetic Induction. Within the structural frame of a step-up Power Transformer, alternating current entering the primary winding creates a continuously changing magnetic flux within a highly permeable laminated steel core. This flux propagates throughout the common magnetic circuit and cuts across the secondary winding. Because the secondary winding contains a far greater number of physical copper conductor turns than the primary winding, a larger electromotive force is induced at the output terminals. This architectural configuration guarantees that the voltage steps up in direct proportion to the specific turns ratio of the coils.

To endure the immense electrical stresses and extreme thermal gradients generated during voltage elevation, industrial operators select robust configurations designed for sustained thermal equilibrium. Utilizing a specialized 20kv-22kv Oil Immersed Power Transformer ensures that the high dielectric strength of insulating oil surrounds the heavy-duty windings, effectively eliminating internal arcing risks and accelerating heat dissipation away from the dense magnetic core assembly during peak grid transmission hours.

Step-Up Configuration Specifications and Components

2. What Is a Step-Down Transformer and How Does It Work?

A step-down Power Transformer reduces high-voltage electrical energy derived from transmission grids to lower, standardized voltage levels suitable for commercial, industrial, and downstream distribution applications.

While high voltages are mandatory for transporting energy efficiently across long geographic spans, extra-high voltage lines are far too dangerous and physically incompatible with standard factory machinery and commercial equipment. Therefore, as transmission lines approach urban perimeters, industrial zones, or manufacturing facilities, a step-down Power Transformer must step in to lower the electrical potential. This conversion occurs in successive stages, transitioning power from long-distance transmission levels down to primary sub-transmission distribution levels, and eventually to highly manageable end-user voltages.

Mechanically, a step-down Power Transformer operates on the exact same principles of mutual induction as its step-up counterpart, but utilizes a completely reversed winding geometry. In this layout, the high-voltage input line connects to the primary winding, which consists of a large number of turns of highly insulated, relatively thin wire. The secondary winding, which delivers the functional output power, contains far fewer turns but is wound using thick-gauge copper conductors. This thick wire configuration is mandatory because, as the voltage drops across the magnetic circuit, the current escalates proportionally, requiring substantial cross-sectional area to minimize resistive heating.

Managing the severe thermal loads generated by high current multiplication requires exceptional cooling designs that protect the structural integrity of the copper windings. High-capacity industrial facilities frequently implement systems such as an advanced ONAN Power Transformer, which employs natural oil convection coupled with ambient air circulation currents across external radiator fins to guarantee continuous, uncompromised cooling performance under heavy industrial demands.

Step-Down Configuration Specifications and Components

3. How Do Voltage and Current Levels Differ Between Step-Up and Step-Down Transformers?

The differential relationship between voltage and current levels within any Power Transformer is defined by the law of conservation of energy, dictating that voltage and current remain strictly inversely proportional to each other across the magnetic transformation circuit.

To fully comprehend the electrical behavior of a high-performance Power Transformer, engineers rely on precise mathematical ratios derived from ideal conservation laws. Assuming negligible internal losses, the apparent power entering the primary winding must equal the apparent power exiting the secondary winding. This equilibrium is represented by the formula where primary voltage multiplied by primary current equals secondary voltage multiplied by secondary current. Consequently, if a specific Power Transformer is configured to increase the secondary voltage by a factor of ten, the available secondary current must decrease by that exact same factor of ten to preserve the total energy balance of the electrical network.

In a step-up Power Transformer, the voltage amplification causes a sharp contraction in current magnitude within the secondary coils. This reduction in current is the exact mechanism that makes long-distance transmission practical. According to Joule's first law, line power losses are directly proportional to the square of the current multiplied by line resistance. By stepping up the voltage and forcing the current down, line losses drop exponentially, allowing power utilities to utilize smaller, more cost-effective aluminum or copper conductors across thousands of miles of high-voltage transmission towers.

Conversely, inside a step-down Power Transformer, the secondary winding experiences a significant reduction in voltage coupled with a massive amplification in operational current capacity. This massive current availability is essential for powering high-capacity heavy machinery, electric arc furnaces, automated assembly lines, and multi-tenant commercial centers. Because the secondary current is so massive, the physical design of the secondary distribution infrastructure must feature highly specialized low-impedance termination blocks and extra-thick copper winding arrangements to prevent catastrophic thermal degradation during peak operating shifts.

Voltage and Current Mathematical Relationship Comparison

4. What Are the Key Differences in Design, Application, and Purpose of Step-Up and Step-Down Transformers?

The key differences in design, application, and purpose center on where the Power Transformer is positioned relative to the generation source and how its internal insulation, core geometry, and cooling systems are engineered to withstand specific electrical parameters.

The operational purpose dictates every facet of structural design for these vital grid components. A step-up Power Transformer is designed specifically for installation at generation stations, wind farms, and utility-scale solar installations. Its primary architectural challenge is managing high input current at the primary side while maintaining absolute dielectric isolation on the high-voltage secondary side. The insulation materials must withstand prolonged voltage stress, and the outer bushings must be exceptionally long to prevent lightning-induced flashovers or phase-to-ground short circuits at the high-voltage terminals.

On the other hand, a step-down Power Transformer is engineered with a primary focus on voltage stability, fault tolerance, and localized current capacity. These units are deployed in transmission substations, urban distribution centers, and private industrial step-down stations. Because they sit closer to the end consumers, they are frequently equipped with advanced on-load tap changers that automatically adjust the internal turns ratio in real-time, compensating for voltage fluctuations caused by fluctuating factory loads or sudden spikes in grid consumption. Furthermore, the cooling systems in step-down units must be highly reliable to manage the persistent thermal cycles associated with shifting commercial energy demands throughout the day.

From an architectural standpoint, both systems utilize specialized cooling and fluid dynamics to preserve their internal components over decades of uninterrupted service. High-voltage substations depend heavily on heavy-duty oil-immersed platforms to maintain reliable operation. Whether stepping up generation output or stepping down distribution voltages for heavy machinery, deploying a resilient, fluid-insulated Power Transformer ensures complete operational longevity, minimal core loss, and excellent short-circuit survival capabilities under the most challenging industrial grid environments worldwide.

Comprehensive Design, Application, and Purpose Comparison
