How do you interpret transformer ratings and specifications?

Interpreting transformer ratings and specifications involves systematically reading the equipment nameplate to understand its primary electrical capacity, voltage limits, cooling methods, and impedance values. This documentation ensures the power transformer operates within its safe design parameters, maintains system efficiency, and integrates seamlessly into the electrical grid without risk of thermal failure or premature degradation.

At a Glance

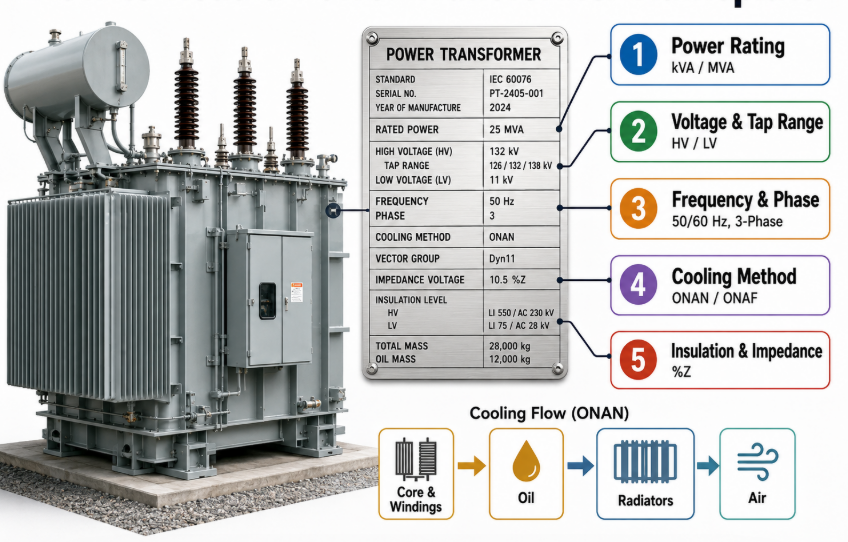

How Can You Understand Transformer Nameplate Data?

Understanding transformer nameplate data requires a systematic analysis of the manufacturer certified technical placard affixed to the exterior tank, which serves as the official operational blueprint for safe deployment. This data provides engineers and field technicians with critical electrical limits, structural configurations, and performance indicators necessary for successful installation, routine diagnostic testing, and system integration.

The nameplate of a power transformer functions as its comprehensive technical biography. It contains verified empirical data derived from factory testing, ensuring that the asset conforms to international standards such as IEEE, IEC, or ANSI. Without accurate interpretation of these figures, grid operators risk subjecting the machinery to improper loading, incorrect phase alignment, or incompatible voltage thresholds, all of which can lead to immediate catastrophic failure or long term thermal degradation.

Every electrical parameter listed on the nameplate is interconnected. For instance, a change in operating voltage via the tap changer directly influences the magnetic flux density within the core, which subsequently alters the efficiency and thermal output of the system. Therefore, site engineers must view the nameplate not as a collection of isolated numbers, but as a holistic matrix of operational boundaries that dictate the lifecycle management of the asset.

Furthermore, proper interpretation of these specifications is vital for executing successful preventive maintenance strategies. Diagnostic indicators such as winding insulation thresholds and baseline impedance values are referenced directly against the original nameplate values during routine power factor or dissolved gas analysis tests. For industrial facilities seeking robust distribution solutions, utilizing a certified high performance 20kv to 22kv oil-immersed power transformer guarantees that the physical nameplate specifications align precisely with rigorous utility standards.

What Does the Power Rating (kVA/MVA) on a Transformer Mean?

The power rating expressed in kilovolt-amperes or megavolt-amperes denotes the maximum continuous apparent power that a power transformer can safely deliver to a load under specified ambient conditions without exceeding its thermal design limits. This specification serves as the fundamental metric for capacity planning, determining how much electrical demand the unit can sustain during peak operational periods.

Apparent power represents the vector sum of active power, measured in kilowatts, and reactive power, measured in kilovolt-amperes reactive. Because a power transformer manufacturer cannot predict the exact power factor of the end user industrial load, the equipment must be rated strictly in apparent power capacity. This ensures that the conducting copper or aluminum windings are sized correctly to handle the total current volume flowing through the circuit, regardless of whether that current is performing useful work or maintaining magnetic fields.

When sizing an electrical substation, selecting the appropriate kVA or MVA threshold requires evaluating both continuous loading profiles and transient inrush currents. Overloading a unit beyond its nameplate kVA rating accelerates the degradation of the paper insulation surrounding the conductors due to excessive Joule heating. This thermal stress exponentially shortens the operational lifespan of the internal components, turning what should be a thirty year asset into a high risk liability.

To optimize network distribution, modern engineering designs frequently employ multi rated systems that account for forced cooling mechanisms. A single nameplate might display a rating such as 10 MVA ONAN and 13.3 MVA ONAF, indicating that the unit can safely scale its output when auxiliary cooling fans are activated to dissipate the extra thermal energy generated by higher current flows.

Factors Influencing Power Rating Selection

1 Load Profile Characteristics

The nature of the connected load dictates the necessary headroom required above the nominal power rating. Continuous, unvarying industrial loads demand a higher baseline capacity compared to cyclic residential loads that peak for only a few hours per day.

2 Ambient Temperature Variations

Standard ratings assume a specific maximum ambient environment, typically forty degrees Celsius. If an industrial plant operates in an arid region with higher ambient heat, the effective power rating of the system must be derated to prevent internal overheating.

3 Future Capacity Expansion

Smart infrastructure planning requires incorporating an additional twenty to thirty percent margin into the baseline power rating. This accommodates future industrial facility growth and prevents the premature need for secondary infrastructure installation.

What Do Voltage Ratings and Tap Range on a Transformer Nameplate Mean?

Voltage ratings indicate the exact nominal primary and secondary voltage levels the power transformer is designed to accept and step down or step up, while the tap range specifies the adjustable percentage increments available to modulate the turn ratio and correct for external grid voltage fluctuations. These values dictate the exact electrical nodes where the equipment can be safely connected within a distribution layout.

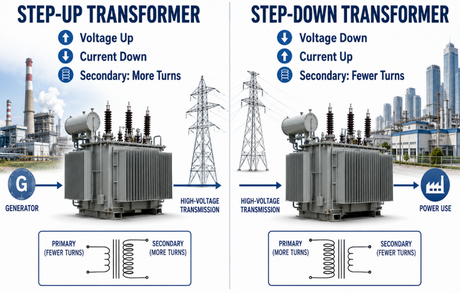

The primary voltage rating corresponds to the system voltage of the incoming transmission or distribution lines, while the secondary voltage matches the requirements of the downstream facility or load center. For example, a rating of 22000V to 400V indicates a step down configuration. Maintaining operations at these specific design voltages prevents magnetic core saturation, which occurs when excessive voltage forces the magnetic flux beyond the physical capacity of the electrical steel, causing severe overheating and harmonic distortion.

Because utility grid voltages naturally fluctuate based on total regional load demands, a nameplate will detail a specific tap changer configuration, often ranging from plus five percent to minus five percent in fixed intervals. By altering the active number of turns in the high voltage winding, operators can stabilize the output secondary voltage, ensuring that downstream industrial machinery receives steady, clean power despite volatile upstream line conditions.

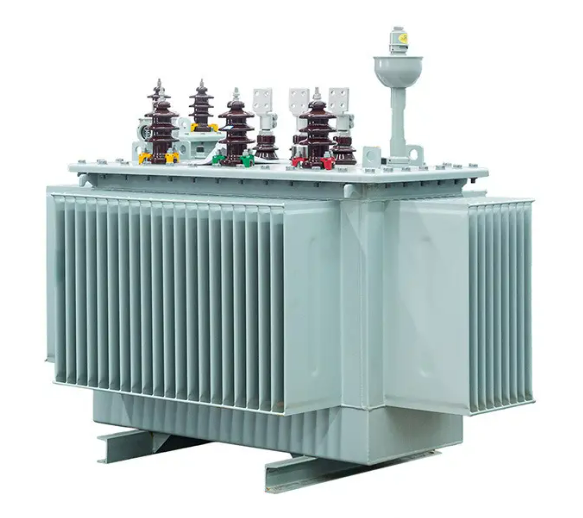

Using a highly engineered reliable oil-immersed power transformer systems provides precise voltage regulation through robust tap range setups, allowing industrial operators to maintain seamless voltage continuity even when faced with heavy fluctuating industrial machine demands.

What Do Frequency and Phase Configuration on a Transformer Nameplate Mean?

Frequency and phase configuration denote the structural and synchronization compatibility of the power transformer with the electrical grid, specifying whether the unit operates on a single phase or three phase system and whether it aligns with fifty hertz or sixty hertz alternating current cycles. These parameters are non negotiable architectural traits that must perfectly match the regional utility infrastructure.

Operating a unit at an incorrect frequency can result in catastrophic equipment failure. A system designed for sixty hertz will experience a significant increase in magnetic flux density if energized on a fifty hertz network, driving the core into deep saturation, increasing core losses, and generating extreme heat. Conversely, a fifty hertz unit run on a sixty hertz line will exhibit higher inductive reactance, altering the overall voltage regulation and impedance characteristics of the circuit.

Phase configuration defines the spatial arrangement and internal connection of the windings, typically categorized into delta or wye configurations for three phase systems. The nameplate will display a vector diagram and a alphanumeric code such as Dyn11, which signifies a delta connected primary winding, a wye connected secondary winding with an accessible neutral terminal, and a thirty degree phase shift where the secondary voltage leads the primary voltage by eleven o'clock on a standard clock diagram.

Core Benefits of Correct Vector Group Alignment

1 Parallel Operation Capability

Two units can only operate in parallel to share a common load if their vector groups match perfectly. Mismatched phase displacement creates an immediate phase to phase short circuit across the busbars.

2 Triplen Harmonic Suppression

A delta primary configuration provides a closed loop circulating path for third harmonic currents, preventing these destructive electrical distortions from propagating back into the main utility supply lines.

3 Unbalanced Load Handling

A secondary wye configuration with a neutral terminal allows the system to supply single phase loads across individual phases while stabilizing the neutral point against severe load imbalances.

What Do Cooling Methods and Temperature Rise on a Transformer Nameplate Mean?

Cooling methods and temperature rise specifications define how internal thermal energy generated by electrical losses is dissipated from the core and windings, and the maximum allowable temperature increase above ambient conditions that the system can sustain at full capacity. Proper thermal management is the single most critical factor in preserving the integrity of the solid dielectric insulation materials.

The cooling classification is designated by standard four letter acronyms established by international committees. The first two letters describe the internal cooling medium and its mechanism of movement, while the last two letters describe the external cooling medium and its circulation method. For example, ONAN stands for Oil Natural Air Natural, meaning that the mineral oil circulates inside the tank via natural convection currents, while the heat from the external radiator panels is carried away by ambient air currents without auxiliary blowers.

Temperature rise refers to the permissible average temperature increase of the windings above a standard baseline ambient environment, usually fixed at an average of thirty degrees Celsius over a twenty four hour period. A typical nameplate specification reads sixty five degrees Celsius rise, indicating that under full load, the physical copper windings can safely reach an absolute temperature of one hundred degrees Celsius before exceeding design safety margins. Utilizing an efficient oil natural air natural cooling power transformer ensures that these structural temperature limits are maintained through optimized cooling channel distribution.

What Do Insulation Class and Impedance Mean on a Transformer Nameplate?

Insulation class designates the maximum absolute temperature that the internal dielectric materials can survive without structural breakdown, while the percent impedance represents the voltage drop across the unit under full load due to its internal winding resistance and inductive reactance. These two properties dictate the short circuit survivability and fault current levels of the entire system.

The insulation class is categorized by letter ratings that correspond to specific temperature limits. Class A insulation, traditional Kraft paper impregnated with mineral oil, is thermally rated for one hundred and five degrees Celsius. Modern synthetic insulation materials can achieve Class H or Class K ratings, allowing safe operation at significantly higher temperatures. If a power transformer is pushed beyond these designated insulation limits, the chemical bonds within the paper degrade, drastically lowering its dielectric strength and leading to internal arc faults.

Percent impedance is an essential value for calculating short circuit currents during grid fault conditions. It is determined by short circuiting the secondary terminals and measuring the percentage of rated primary voltage required to circulate full rated current through the windings. A transformer with a five percent impedance will allow a maximum fault current equal to twenty times its rated current if a downstream short circuit occurs.

1 Fault Current Control

A higher percent impedance limits the maximum destructive fault current flowing through the grid during an accidental short circuit, protecting delicate downstream infrastructure from mechanical deformation.

2 Voltage Regulation Balance

While high impedance improves safety during faults, it increases internal voltage drop during normal operation. Engineers must balance safety with the need for stable voltage maintenance across variable loads.

3 Protective Relay Calibration

The exact percentage impedance listed on the nameplate is programmed directly into protective substation relays to ensure accurate, rapid trip sequences during localized phase faults.

Summary

Interpreting the ratings and specifications of a power transformer is an essential discipline for securing electrical grid reliability and maximizing asset longevity. From understanding the core kVA capacity to analyzing complex phase displacement codes and thermal rise boundaries, every data point on the nameplate guides safe integration. By cross referencing these parameters against real world load requirements and choosing high quality systems designed to meet exact industrial standards, facility managers can guarantee optimized energy distribution, minimal downtime, and superior short circuit protection across their entire operational network.
