What are the best practices for grounding and protection of power transformers?

Implementing comprehensive grounding and protection for a power transformer is critical to isolating electrical faults, mitigating transient overvoltages, suppressing catastrophic thermal overruns, and ensuring systemic grid reliability. By combining advanced differential relays, strategic neutral grounding regimes, and robust surge accommodation, industrial facilities can prevent permanent insulation breakdown, minimize downtime, and protect valuable capital assets from downstream short-circuit anomalies.

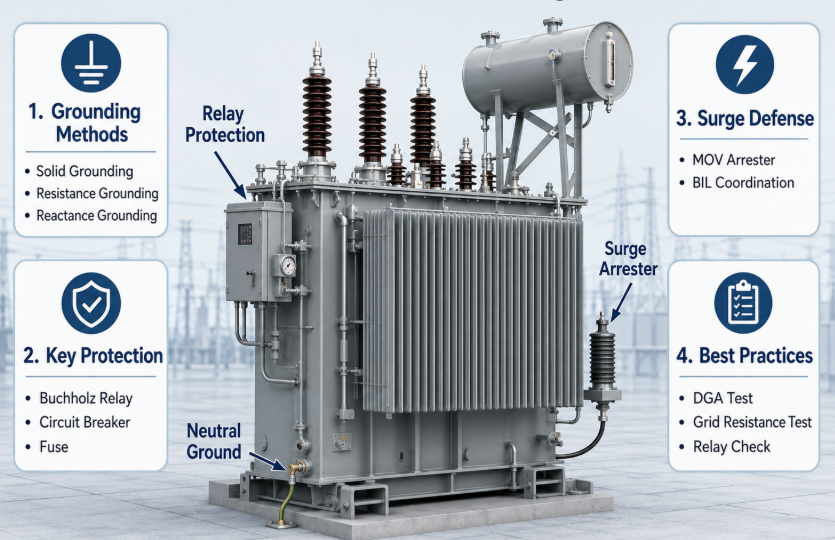

Table of Contents

1. Why Is Proper Grounding Essential for Power Transformers?

2. What Are the Common Grounding Methods Used in Power Transformers?

3. How Do Protective Devices Safeguard Transformers from Faults?

4. What Role Do Relays, Circuit Breakers, and Fuses Play in Protection?

5. How Can Surge Arresters and Insulation Coordination Prevent Damage?

6. What Are the Industry Best Practices for Ensuring Reliable Grounding and Protection?

Why Is Proper Grounding Essential for Power Transformers?

Proper grounding for a power transformer is foundational because it establishes a stable voltage reference point, protects structural insulation from catastrophic voltage swelling, ensures swift clearing of phase-to-ground faults, and guarantees absolute safety for operational personnel handling the equipment.

When an electrical system operates without a defined, engineered ground connection, the neutral point can drift wildly during unbalanced load conditions or single-phase-to-ground faults. In an ungrounded grid, a single phase hitting the earth does not cause an immediate overcurrent trip, but it raises the voltage potential of the remaining healthy phases relative to the ground by a factor of square root of three. This sustained stress accelerates the degradation of internal dielectric materials within the power transformer winding structure, eventually culminating in a destructive phase-to-phase short circuit. Establishing an intentional, low-impedance path to the earth grid ensures that fault currents are channeled safely away from core structural elements.

Furthermore, proper grounding plays an instrumental role in modern digital substation monitoring systems. High-sensitivity protection schemes rely heavily on predictable, measurable ground-fault currents to accurately locate and isolate anomalies. Without a stable ground return vector, residual current relays cannot function optimally, leading to delayed tripping or hazardous blind spots in the protection zone. For instance, when configuring a highly resilient heavy-duty 20kv-22kv oil-immersed power transformer solution, a precisely engineered grounding matrix acts as the first line of defense against excessive static charge accumulation caused by rapid internal oil circulation.

From a personnel standpoint, improper grounding introduces lethal touch and step potentials around the perimeter of the substation pad. During a severe internal fault event, the structural steel tank of the power transformer can experience temporary voltage elevation if the grounding conductors possess high impedance. A robust, well-distributed ground mesh forces the entire enclosure to remain at a unified earth potential, shielding utility engineers from dangerous shock hazards.

1. Key Benefits of Grounding

• Voltage Stabilization: Prevents neutral-point shifting and maintains steady steady-state phase voltages under dynamic or highly unbalanced industrial loads.

• Rapid Fault Detection: Maximizes ground-fault current levels to guarantee instantaneous relay response times, neutralizing faults within milliseconds.

• Transient Overvoltage Control: Channels high-frequency switching surges and lightning strikes safely to earth without stressing the winding insulation.

2. Primary Grounding Hazards

• Thermal Stress: Uncontrolled fault currents generate intense localized heat, threatening structural seals and aging oil insulation matrixes.

• Winding Distortion: Massive electrodynamic forces generated by unmitigated faults can physically warp structural copper coils over time.

• Touch Potential Escalation: High-impedance grounding paths elevate the risk of lethal surface voltages on structural metal enclosures during active faults.

What Are the Common Grounding Methods Used in Power Transformers?

The most common grounding methods used in power transformer architectures include solid grounding, low-resistance grounding, high-resistance grounding, and reactance grounding, with each method selected based on specific voltage levels, system fault thresholds, and operational continuity needs.

Solid grounding connects the neutral point of the power transformer winding directly to the substation earth grid via a heavy copper busbar without any intentional intervening impedance. This approach is standard in ultra-high-voltage transmission grids where suppressing overvoltages is paramount to lowering insulation costs. Under solid grounding conditions, fault currents reach their absolute theoretical maximum, allowing simple overcurrent relays to detect and isolate faults immediately. However, the sheer mechanical stress exerted on the internal core laminations and windings of the power transformer during a solid ground fault can be exceptionally severe, making it less ideal for sensitive industrial distribution networks.

Resistance grounding introduces a specifically calibrated metallic or liquid resistor assembly between the neutral point and the earth grid. In low-resistance grounding setups, the ground-fault current is limited to a controlled range, typically between 200A and 800A, which is sufficient to trip protection breakers while significantly reducing mechanical shock to the windings. High-resistance grounding limits the fault current to trivial levels, often under 10A, which completely prevents immediate breaker tripping and allows critical industrial continuous production processes to keep running safely until an orderly shutdown can be scheduled.

Reactance grounding utilizes an inductive reactor to counteract the natural capacitive charging current of extensive underground cable systems. A specialized sub-type, the Peterson Coil, is a highly tuned, adjustable reactor that resonates precisely with the network's phase-to-ground capacitance. When a temporary arc occurs, the inductive current perfectly cancels out the capacitive fault current, extinguishing the arc automatically without interrupting power. This advanced method is highly valued in sprawling distribution networks equipped with premium ONAN power transformer systems to maintain grid uptime despite challenging outdoor environmental parameters.

1. Advantages of Resistance Grounding

• Winding Stress Reduction: Lowers electromagnetic distortion forces inside the main tank, extending core structural integrity.

• Arc Flash Suppression: Decreases hazardous arc flash energy magnitudes at the point of fault occurrence, enhancing site safety profiles.

• Minimal Transient Swells: Effectively dampens destructive high-frequency resonance phenomena during single-phase clearing cycles.

2. Common Applications by Method

• Solid Grounding: Standard across major municipal utility substations and global high-voltage transmission networks exceeding 110kV.

• High-Resistance Grounding: Broadly deployed in continuous-process heavy manufacturing, petrochemical installations, and critical data centers.

• Reactance Grounding: Implemented in complex urban underground distribution networks prone to elevated line capacitance spikes.

How Do Protective Devices Safeguard Transformers from Faults?

Protective devices safeguard a power transformer from internal and external faults by constantly monitoring physical and electrical anomalies such as oil pressure surges, high gas concentrations, thermal overruns, and tank expansions, and then triggering immediate trip alarms before internal damage occurs.

A modern power transformer relies on a multi-tiered array of mechanical and structural diagnostic instruments built directly onto the main tank assembly. At the heart of internal physical protection is the Buchholz relay, which is mounted on the pipe connecting the main transformer tank to the oil conservator vessel. This gas-actuated mechanical device is uniquely designed to capture minor insulation outgassing. When internal dielectric oil decomposes due to minor localized arcing or core hot spots, hydrogen, methane, and carbon monoxide gases bubble upward toward the conservator, becoming trapped inside the Buchholz housing. The accumulation of gas drops a balanced float mechanism to sound an early warning alarm, preventing minor insulation degradation from escalating into a full-scale meltdown.

For catastrophic, explosive fault conditions where a massive high-energy internal short circuit causes instant oil vaporization, structural pressure relief valves provide vital mechanical venting. These spring-loaded safety valves open within milliseconds when internal tank pressure spikes past pre-configured structural thresholds, safely expelling pressurized oil and preventing the main steel tank from rupturing. This system is crucial for safeguarding high-value infrastructure like high-voltage oil-immersed power transformer architecture against structural deformation and environmental oil contamination.

Thermal tracking devices complement these pressure-focused protection layers. Winding Temperature Indicators (WTIs) and Oil Temperature Indicators (OTIs) monitor real-time thermal boundaries using internal resistance temperature detectors or capillary bulb sensors. If load current spikes cause the temperature of the internal copper winding to approach critical design limits, these thermal monitors automatically activate auxiliary cooling fan banks, trigger an early alert, or execute a forced emergency breaker trip to preserve the transformer's lifespan.

1. Core Structural Indicators

• Dissolved Gas Accumulation: Early warning metric signaling minor tracking arcs, tracking current leaks, or core lamination degradation.

• Abrupt Pressure Spikes: Definitive signal indicating high-energy phase-to-phase short-circuit insulation blowouts inside the main tank.

• Thermal Boundary Excursions: Excessive operational heat that degrades cellulose insulation paper and drastically reduces asset life.

2. Mechanical Protective Functions

• Gas-Actuated Deflection: Uses dual-float mechanical assemblies to differentiate between slow, ambient outgassing and violent oil surges.

• Rapid Venting Action: Employs high-tension spring-loaded diaphragms to instantly vent pressure and preserve structural integrity.

• Automated Cooling Stages: Sequentially energizes multi-stage radiator fan systems based on real-time internal thermal trends.

What Role Do Relays, Circuit Breakers, and Fuses Play in Protection?

Relays, circuit breakers, and fuses form the definitive electrical protection clearing system for a power transformer, acting continuously to sense anomalous current vectors, calculate phase differentials, and rapidly isolate faulty equipment from the active utility grid.

The core electrical defense for any large-capacity power transformer is the percentage differential protection relay (ANSI device code 87T). This highly accurate digital tracking scheme operates on the principle of Kirchhoff’s Current Law, comparing the vector difference between the primary incoming current and the secondary outgoing current. Under normal operating conditions or external through-faults, the scaled current entering the power transformer perfectly matches the current exiting the unit. However, if an internal inter-turn short circuit occurs, the current vectors diverge. Once this differential current exceeds a specific pre-set percentage threshold, the differential relay identifies an internal fault and sends an instantaneous trip signal to all connected circuit breakers.

To prevent the differential relay from mistakenly tripping during initial power-up due to magnetizing inrush current, modern digital relays utilize harmonic restraint algorithms. When a power transformer is first energized, the core undergoes temporary magnetic saturation, drawing an initial current spike that can look like an internal fault. Because this inrush current contains a high concentration of second-harmonic components, the relay filters out these specific frequencies, temporarily blocking a trip action to ensure reliable, nuisance-free start-ups.

For backup protection, time-overcurrent relays (ANSI 51) and instantaneous overcurrent relays (ANSI 50) track sustained overloads and external through-faults down the line. If a downstream fault persists because a secondary breaker fails to open, the backup overcurrent relay on the power transformer calculates the time-to-clear delay and trips its own circuit breaker to protect the winding from thermal overload. On smaller distribution systems, specialized high-voltage current-limiting expulsion fuses offer a cost-effective alternative, clearing high-energy short circuits within a quarter-cycle through pure thermal melting.

1. Essential Relay Zones

• Primary Differential Zone: Strict monitoring boundary between incoming and outgoing current sensors, completely isolating internal faults.

• Overcurrent Backup Boundary: Extends protection downstream, protecting the system if primary line breakers fail to operate.

• Restricted Earth Fault (REF): High-sensitivity monitoring designed to catch hard-to-detect phase-to-ground faults near the neutral point.

2. Disadvantages of Fuses Over Breakers

• Single-Phase Melting Risk: May cause partial phase loss, leading to hazardous unbalanced operating states on three-phase equipment.

• Manual Replacement Needed: Requires manual field replacement after every trip event, extending system downtime.

• Fixed Time-Current Profiles: Lacks the adjustable, programmable flexibility of intelligent digital relay software.

How Can Surge Arresters and Insulation Coordination Prevent Damage?

Surge arresters and comprehensive insulation coordination prevent damage to a power transformer by safely clipping high-voltage transient spikes caused by lightning or grid switching events, diverting excessive energy to ground before it can breach internal winding insulation.

A power transformer connected to open overhead transmission lines is continually exposed to severe atmospheric lightning strikes and steep-fronted switching transients. To shield vulnerable internal copper windings from these extreme voltage spikes, Metal Oxide Varistors (MOVs) are installed immediately adjacent to the primary bushings. These modern surge arresters act as non-linear, voltage-dependent resistors. At normal system voltages, the arrester maintains exceptionally high electrical resistance, drawing negligible leakage current. However, the instant a high-voltage surge hits the line, the varistor seamlessly transitions into a highly conductive, low-resistance path, safely dumping the transient surge energy directly to earth.

The success of this strategy relies on meticulous insulation coordination, which involves balancing the electrical strength of the transformer's insulation with the protective characteristics of the surge arresters. Engineers quantify this relationship using the Basic Impulse Insulation Level (BIL). The BIL defines the peak crest voltage of a standardized 1.2 *50 us wave profile that the internal insulation must withstand without flashing over or failing.

For maximum reliability, the surge arrester's maximum residual voltage must remain significantly below the power transformer's BIL rating, establishing a dependable protective safety margin. In systems utilizing highly optimized ONAN power transformer configurations, maintaining these protective margins is vital to keeping dielectric oils clean and preventing premature degradation of the winding insulation matrix.

1. Types of Grid Transients

• Atmospheric Lightning Overvoltages: Extremely fast, high-amplitude voltage spikes capable of puncturing structural insulation instantly.

• Switching Surges: Low-frequency transients generated by opening or closing large breaker networks or capacitor banks.

• Temporary Overvoltages (TOV): Sustained voltage swells caused by sudden load rejection or line-to-ground faults.

2. Insulation Strategies

• Strategic Grade Stepping: Arranging insulation barriers so that non-critical components flash over safely before core windings are stressed.

• Bushing Shielding Layers: Integrating capacitive layer shields within structural bushings to distribute electrical stress evenly.

• Lead-Length Minimization: Keeping grounding leads on arresters as short as possible to eliminate parasitic inductive voltage drops.

What Are the Industry Best Practices for Ensuring Reliable Grounding and Protection?

Industry best practices for ensuring reliable grounding and protection of a power transformer involve performing periodic low-frequency ground grid resistance tests, routine insulation power factor checking, regular dissolved gas analysis (DGA), and verification of relay timing circuits.

Maintaining an effective grounding network requires ongoing testing to ensure that seasonal changes and soil corrosion have not degraded the subsurface copper mesh. Utilizing the classic Fall-of-Potential method with three auxiliary ground stakes ensures the earth grid's resistance stays below the industry-standard 1-Ohm threshold. At the same time, high-current injection testing verifies that all heavy copper bonding straps between the power transformer tank and the main ground grid remain physically secure and free of localized corrosion.

Regular Dissolved Gas Analysis (DGA) is equally critical for monitoring internal health. By extracting oil samples from the main tank, engineers can track trace amounts of key fault gases dissolved in the insulating fluid. Tracking the ratios of gases like acetylene, ethylene, and methane allows maintenance teams to identify active internal problems—such as core hot spots or breakdown of paper insulation—long before they cause a catastrophic failure.

Finally, checking relay protection systems through regular secondary current injection guarantees that electronic control components will operate reliably when a real fault occurs. Simulating fault currents allows technicians to confirm that differential, overcurrent, and ground-fault relays trip their associated circuit breakers within designated millisecond windows.

1. Core Diagnostic Test Routines

• Dissolved Gas Analysis (DGA): Highly sensitive oil testing capable of identifying arcing, tracking, and localized hot spots early.

• Insulation Power Factor Testing: Measures dielectric loss angles to detect moisture ingress and aging insulation paper.

• Sweep Frequency Response (SFRA): Captures mechanical footprints to check if high-energy short circuits have shifted or warped the internal windings.

2. Maintenance Action Items

• Bushing Cleaning Programs: Periodic washing of porcelain surfaces to prevent tracking currents and dirty flashovers.

• Contact Torque Verifications: Routine physical checking of neutral grounding busbar connections to avoid high-resistance paths.

• Breaker Trip Timing Validation: Periodic testing of trip circuits to ensure rapid clearing times and limit through-fault damage.

Summary

Effectively grounding and protecting a power transformer requires a carefully integrated strategy that combines mechanical sensors, digital electrical relays, solid grounding design, and matched surge protection. Following industry-standard maintenance schedules—including regular earth grid testing, dissolved gas analysis, and routine relay calibration—allows operations teams to catch potential faults early and prevent catastrophic equipment failures. Investing in robust grounding practices and high-quality protective components ensures long-term grid stability, protects multi-million dollar substation assets, and maintains safe operating conditions for field personnel.
