What exactly is a dry type transformer?

A dry-type transformer is a stationary, solid-state electrical device that transfers alternating current between circuits through electromagnetic induction without utilizing liquid coolants like mineral oil. It relies entirely on natural air convection or forced airflow surrounding its copper or aluminum windings to dissipate thermal energy generated during operation, offering superior fire safety, environmental security, and minimal maintenance requirements.

At a Glance

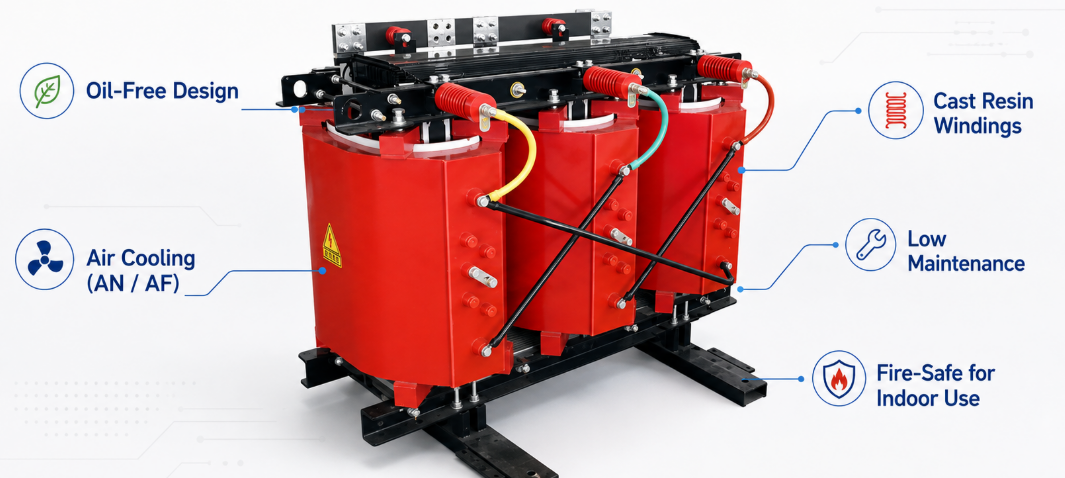

What Exactly Is a Dry-Type Transformer?

A dry-type transformer is an electrical voltage conversion apparatus constructed with solid dielectric insulation materials where the core and windings are cooled directly by air rather than submerged in flammable insulating liquids.

At its core, a dry-type transformer performs the identical electromagnetic function as an oil-immersed unit: stepping up or stepping down voltage levels across distribution networks to match equipment requirements. However, the fundamental engineering divergence lies in dielectric containment and thermal management. Instead of relying on hydrocarbon-based oil or synthetic ester fluids to absorb heat and prevent electrical flashover, dry-type units utilize high-grade solid materials such as epoxy resin, aramid paper, or high-temperature varnish, paired with integrated air channels.

From a structural engineering standpoint, the transformer assembly consists of a grain-oriented silicon steel core, primary and secondary coils wound with high-purity copper or aluminum conductors, solid inter-layer insulation, and a protective steel enclosure engineered for specific NEMA or IP protection ratings. The absence of liquid coolants eliminates internal hydraulic pressure buildup, structural oil expansion tanks, radiator banks, and complex seals that are traditionally susceptible to degradation and leaking over time.

Because these units eliminate liquid flammability risks entirely, they align seamlessly with strict building codes, environmental safety standards, and indoor electrical room specifications. For heavy commercial and industrial developments requiring localized step-down power, high-grade Three-Phase Dry-Type Transformers provide compact, self-contained voltage management that can be safely situated adjacent to main load centers without requiring external fire-containment vaults.

How Does a Dry-Type Transformer Work?

A dry-type transformer operates on the principle of mutual electromagnetic induction, where alternating current in the primary winding creates a time-varying magnetic flux in the laminated iron core, which induces a proportional secondary voltage.

When alternating voltage is applied to the primary winding, it drives an alternating current through the conductor turns. This current establishes a dynamic magnetic field within the closed magnetic circuit formed by the cold-rolled grain-oriented silicon steel core. The core acts as a low-reluctance pathway, channeling the magnetic flux through its structure and effectively linking the primary winding turns to the secondary winding turns. As this flux continuously expands, contracts, and reverses polarity in harmony with the source frequency, it induces an electromotive force (EMF) across the secondary winding in direct accordance with Faraday’s Law of Electromagnetic Induction.

The ratio between the primary voltage and secondary voltage is strictly governed by the physical turns ratio of the primary coil relative to the secondary coil. Because energy transfer occurs via magnetic field linkage rather than direct electrical connection, the primary and secondary circuits remain galvanically isolated from one another. During continuous operation, energy losses manifest in two primary forms: core losses caused by magnetic hysteresis and eddy currents within the steel laminations, and conductor losses resulting from electrical resistance within the copper or aluminum windings.

Heat generated by these losses must be continuously evacuated to prevent thermal breakdown of the solid dielectric insulation. Air channels integrated directly between the primary and secondary coil layers allow ambient air to pass over the winding surfaces through natural thermal convection. As air enters through the bottom of the transformer enclosure, it absorbs thermal energy from the hot coil faces, decreases in density, and rises out through top ventilation louvers. When higher continuous output ratings are required, automated cooling fans can be engaged to accelerate airflow across the core channels, boosting total thermal dissipation capacity significantly.

Core clamping torque maintenance: During long-term operating cycles, repeated thermal expansion and mechanical vibration caused by magnetic forces can loosen the mechanical clamping systems securing core laminations. Maintaining strictly specified clamping torque values on tie rods and core frame bolts prevents lamination flutter, mitigates operational noise increase, and avoids localized core insulation failure.

What Insulation Systems Are Used in Dry-Type Transformers?

Dry-type transformers utilize high-performance solid and fibrous dielectric insulation systems categorized under NEMA and IEC thermal classes, primarily Class F, Class H, and Class C, to withstand continuous elevated operating temperatures.

Because dry-type transformers lack the high dielectric strength and thermal cooling capacity of liquid mineral oil, their reliability depends entirely on the quality and thermal rating of their solid insulation materials. Insulation systems must possess high dielectric withstand strength, superior mechanical resistance to thermal stress, resistance to moisture absorption, and self-extinguishing flame properties. The primary insulating components consist of turn-to-turn wire insulation, layer-to-layer barrier sheets, phase-to-phase barriers, and ground insulation separating live conductors from the grounded steel core and structural frame.

Thermal classification defines the maximum allowable continuous operating temperature at which the insulation material can maintain its structural and dielectric integrity throughout its intended operational life. Modern industrial dry-type transformers are primarily constructed using Class F, Class H, or Class C systems. Class F materials allow a total maximum thermal limit of 155°C, designed for a baseline standard ambient temperature of 40°C with an allowable average winding temperature rise of 100°C, leaving a 15°C margin for localized internal hot spots.

Class H insulation systems elevate this capability to a maximum thermal limit of 180°C, accommodating an average winding temperature rise of 125°C under nominal loading conditions. Advanced Class C systems, which incorporate inorganic materials like fiberglass, mica, and specialized aramid paper, offer thermal capability up to and exceeding 220°C, accommodating a 150°C temperature rise. Designing equipment with higher insulation classes provides significant thermal headroom, enabling the transformer to tolerate peak overload conditions, severe harmonic currents, and high ambient temperatures without accelerating thermal aging or dielectric degradation.

What Are the Main Types of Dry-Type Transformers?

The two dominant industrial dry-type transformer designs are Cast Resin Dry-Type (CRT) transformers, which encapsulate windings in solid epoxy resin, and Vacuum Pressure Impregnated (VPI) transformers, which utilize high-temperature resin penetration over wound conductors.

The fundamental difference between transformer construction styles centers on how the solid insulation is applied to the primary and secondary coils, which directly governs environmental protection levels, short-circuit withstand capabilities, and mechanical durability. Understanding these structural variations is vital when consulting a comprehensive Guide to Dry-Type Transformers for specialized facility planning.

1. Cast Resin Dry-Type (CRT / CRGE) Transformers

Cast Resin transformers feature high-voltage primary windings that are completely cast and encapsulated inside epoxy resin compounds under precise vacuum conditions. Before casting, quartz powder or alumina trihydrate fillers are blended into the resin mixture to optimize thermal conductivity, increase mechanical shear strength, and introduce fire-retardant characteristics. The secondary low-voltage windings are typically wound with continuous sheet metal foil (copper or aluminum) and bonded with pre-impregnated insulation sheets to ensure uniform thermal distribution and complete resistance to axial short-circuit forces.

Because the energized conductors are totally sealed inside a dense, solid resin barrier, atmospheric moisture, chemical fumes, heavy industrial dust, and conductive salt air cannot penetrate the insulation matrix. This solid encapsulation yields exceptionally low partial discharge levels (typically under 10 pC), eliminating micro-arcing and internal dielectric tracking over decades of service.

2. Vacuum Pressure Impregnated (VPI) Transformers

Vacuum Pressure Impregnated transformers utilize high-temperature aramid paper insulation inter-layered between winding turns, which are then placed into a sealed vacuum pressure vessel. The vessel undergoes a deep vacuum cycle to remove trapped air and moisture pockets from within the winding structure. High-temperature polyester or silicone varnish is subsequently injected into the chamber under high pressure, driving the fluid deep into every microscopic void between the conductor strands and insulating sheets.

After impregnation, the assembly is baked in industrial ovens to cure the varnish into a durable, solid structural mass. VPI transformers offer outstanding heat transfer efficiency because the thin varnish coating minimizes thermal resistance between conductors and surrounding cooling air. They are mechanically robust, highly repairable compared to solid-cast units, and cost-effective for indoor installations with controlled ambient humidity.

3. Open Wound Dry-Type Transformers

Open wound units represent an traditional VPI variant where coils are treated via dip-and-bake resin applications rather than dynamic vacuum-pressure cycles. While lightweight and budget-friendly, open-wound transformers exhibit lower resistance to aggressive environmental contaminants and are restricted to clean, dry indoor applications.

What Advantages Do Dry-Type Transformers Offer?

Dry-type transformers offer unmatched fire safety, minimal environmental risk, simplified installation architecture, high mechanical overload resilience, and reduced long-term operating costs.

Modern power distribution engineering prioritizes life safety, operational continuity, and environmental stewardship. Transitioning from traditional liquid-filled units to solid-insulated dry-type technology delivers fundamental advantages across all phase stages of facility design, installation, and decades of utility lifecycle.

1. Superior Fire Safety and Self-Extinguishing Properties

Because dry-type transformers eliminate flammable mineral oil, they pose zero fire or explosion hazard during electrical fault events. Cast resin formulations and high-grade aramid papers are inherently self-extinguishing and non-propagating. In the event of an external flashover or intense arc fault, the solid insulation materials do not produce explosive gases or sustained combustion. This fire safety profile allows dry-type units to be installed inside commercial buildings, basement vaults, and high-density manufacturing floors without constructing expensive explosion-proof concrete containment structures or installing liquid catchment pits.

2. Environmental Protection and Zero Contamination Risk

Liquid-filled transformers present continuous environmental liability due to potential dielectric fluid leaks, soil contamination, and hazardous waste disposal mandates. Dry-type units contain no toxic synthetic fluids, PCBs, or mineral oils, completely eliminating the possibility of soil or groundwater contamination during operation, transportation, or catastrophic structural damage. This eco-friendly construction makes them ideal for environmentally sensitive locations, watershed protection zones, and food or pharmaceutical processing facilities where fluid contamination cannot be tolerated.

3. Reduced Installation Footprint and Civil Engineering Savings

Installing an oil-immersed transformer inside or directly adjacent to a facility requires extensive civil infrastructure, including concrete oil containment sumps, fire segregation walls, fire-rated doors, and specialized automatic deluge water or foam suppression systems. Dry-type transformers bypass these civil engineering overhead costs entirely. Their compact dimensions, reduced weight profile, and zero-leak design allow engineers to place units directly adjacent to primary load centers, lowering expensive low-voltage secondary cable runs and reducing internal electrical I^2R power distribution losses across the facility.

4. Low Maintenance Requirements and Reduced Total Cost of Ownership

Maintaining liquid-filled transformers demands regular oil sampling, dissolved gas analysis (DGA), fluid filtration, moisture testing, bushing seal replacements, and continuous monitoring of tank integrity. In contrast, dry-type units require minimal maintenance beyond periodic visual inspections, infrared thermography sweeps, and routine removal of accumulated dust from internal air channels using compressed air or vacuums. Eliminating fluid testing and seal maintenance lowers long-term operational expenditure (OPEX) and drastically minimizes scheduled facility downtime.

For critical commercial applications and industrial infrastructure needing scalable, continuous voltage step-down performance, deploying a Three-Phase Dry-Type Transformer ensures reliable load balance, clean wave-shape transmission, and sustained thermal margin under demanding harmonic load conditions.

Where Are Dry-Type Transformers Commonly Used?

Dry-type transformers are primarily deployed in environments with stringent fire safety regulations, high personnel density, sensitive indoor equipment, or strict environmental contamination limits.

The operational characteristics of dry-type transformers make them the preferred engineering choice across diverse industrial, municipal, and commercial landscapes. Selecting between Cast Resin and Vacuum Pressure Impregnated variants depends on specific local environmental challenges, such as humidity, ambient dust composition, chemical air content, and load variability.

1. High-Density Commercial and Residential Buildings

High-rise residential towers, commercial office complexes, shopping centers, and urban hospitals present high human occupancy levels where structural fire safety is paramount. Placing step-down transformers inside basement utility vaults or mechanical equipment floors requires equipment that generates zero toxic smoke or fire risk. Dry-type transformers meet national building safety codes without requiring heavy fire isolation barriers, enabling efficient power distribution directly within building footprints.

2. Critical Infrastructure and Underground Transport Systems

Subway networks, underground railway stations, road tunnels, and international airports rely on uninterrupted distribution power for lighting, ventilation, signaling, and safety automation. These subterranean and confined spaces present extreme smoke extraction challenges during emergencies. Cast resin transformers are widely specified across transit systems because they produce negligible smoke and zero toxic halogen gas emissions under high thermal stress, protecting public safety.

3. Industrial Manufacturing, Chemical, and Mining Operations

Industrial facilities—including automotive assembly lines, chemical processing plants, pulp and paper mills, and mining substations—expose electrical infrastructure to heavy conductive dust, chemical fumes, severe mechanical vibration, and dynamic motor-starting surge currents. In these severe industrial environments, cast resin units provide an impenetrable solid barrier against ambient pollutants, ensuring steady electrical step-down performance without internal arc faulting.

4. Marine, Offshore Platforms, and Renewable Energy Installations

Offshore oil and gas platforms, floating production vessels (FPSO), cruise ships, and offshore wind turbine nacelles present highly corrosive salt-spray environments coupled with severe space and weight constraints. Moisture-proof, corrosion-resistant dry-type units withstand constant marine humidity and mechanical roll-and-pitch vibrations while eliminating liquid spill hazards into ocean waters.

When specifying power infrastructure for specialized facilities, reviewing a dedicated Guide to Dry-Type Transformers allows engineering teams to map insulation classes, enclosure IP protection degrees, and thermal rise margins directly against site-specific environmental conditions.

Summary and Key Considerations

Dry-type transformers represent a critical cornerstone of modern, safe, and sustainable electrical distribution infrastructure. By completely replacing flammable dielectric liquids with advanced solid insulation systems—such as cast epoxy resins and vacuum-impregnated high-temperature varnishes—these transformers resolve long-standing trade-offs between high-voltage power distribution and indoor site safety.

Whether specified for dense urban commercial centers, underground transit networks, offshore energy platforms, or heavy chemical manufacturing facilities, dry-type transformers deliver a robust combination of self-extinguishing fire safety, zero environmental spill risk, compact installation footprints, and minimal routine maintenance overhead.

When selecting a dry-type transformer, engineers and facility operators should carefully evaluate core criteria:

1. Environmental class ratings (E0 to E3): Ensures the insulation matrix withstands site condensation and heavy humidity.

2. Climatic and fire behavior classifications (C1/C2, F1): Verifies cold-start mechanical integrity and self-extinguishing properties under thermal flash conditions.

3. Harmonic load profile (K-Factor selection): Protects neutral conductors and winding layers against eddy-current heating induced by non-linear industrial loads.

4. Thermal margin and insulation class (Class F vs Class H/C): Provides necessary headroom for ambient temperature peaks and temporary overload demands.

By matching transformer structural architecture—whether Cast Resin or Vacuum Pressure Impregnated—to site operational stresses, engineering teams can guarantee reliable, low-loss power distribution for decades of continuous operation.
