The backbone of modern electrical grids and heavy industrial operations relies entirely on continuous and reliable energy transmission. At the heart of this complex network lies the High Voltage Power Transformer. Specifically, oil-immersed variants are engineered to step up or step down voltage levels efficiently. They endure immense thermal and electrical stress on a daily basis. Picture a sprawling manufacturing plant or a remote utility substation. Without these robust units, the seamless flow of power simply collapses.
Are you upgrading aging grid infrastructure? Or perhaps designing a bespoke power system for an industrial facility? Understanding the technical specifications, structural components, and ideal applications of these electrical behemoths is absolutely vital. Consequently, this comprehensive guide will walk you through the essential details. We approach this from a frontline engineering perspective, ensuring your next procurement decision yields a safe and highly efficient project.
Essential Functionality: These units are critical for elevating voltage for long-distance transmission or reducing it for safe industrial consumption.
Superior Cooling: Oil-immersed designs utilize specialized mineral or synthetic fluids. This offers significantly better insulation and heat dissipation compared to dry-type counterparts.
Engineering Specifications: Parameters such as 110kV and 115kV voltage ratings, specific vector groups, and ONAN or ONAF cooling methods dictate overall site suitability.
Broad Applications: They are indispensable across utility substations, renewable solar and wind energy grids, and heavy manufacturing sectors.
Long-Term ROI: Rigorous maintenance, encompassing routine oil testing and dissolved gas analysis, can stretch equipment lifespan well beyond three decades.

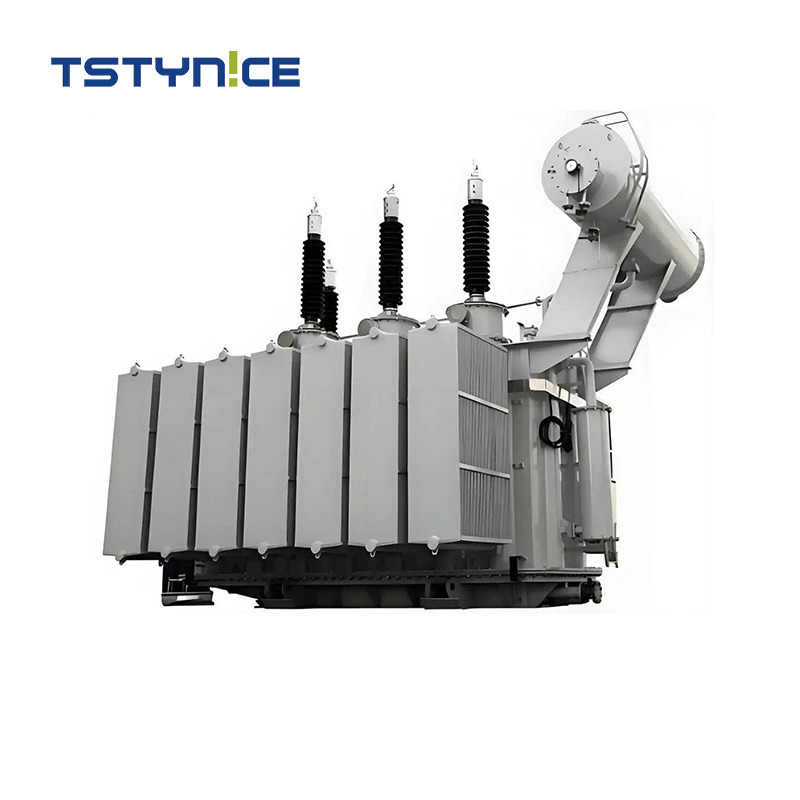

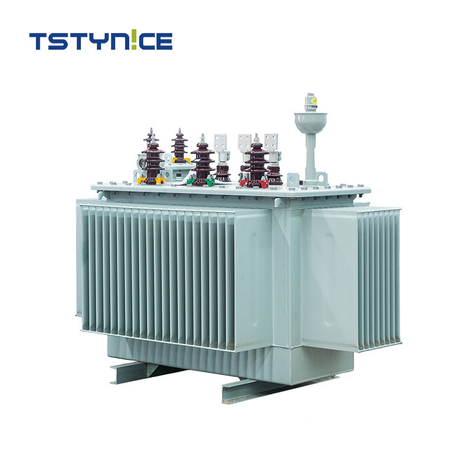

Fundamentally, this equipment serves as a static electrical device. It transfers energy between two or more circuits via electromagnetic induction. Unlike dry-type alternatives that depend entirely on ambient air for cooling, oil-immersed models take a different approach. They submerge their active components, namely the core and windings, inside a rugged tank flooded with dielectric fluid.
Why choose oil? The surrounding liquid serves a dual mandate. Primarily, it acts as a formidable electrical insulator. It actively prevents internal arcing and catastrophic short circuits under extreme electrical loads. Furthermore, it functions as a highly efficient heat transfer medium. The internal components generate substantial thermal energy during peak operation. The fluid absorbs this heat and circulates it toward external radiators. This continuous convection cycle keeps the equipment operating safely within its designated temperature thresholds.
When evaluating a system for your facility, diving into specific technical parameters is non-negotiable. These metrics dictate compatibility and long-term reliability. Let us look at real-world engineering benchmarks commonly seen in top-tier manufacturing.
Voltage Ratings: Primary and secondary voltage ratings stand as the most critical baseline specifications. Common high-voltage classifications for regional transmission and large-scale industrial deployment include 110kV and 115kV. Verifying that the hardware aligns perfectly with your local grid voltage profile is the foundational step in any procurement strategy.
Rated Capacity: Measured in kilovolt-amperes or megavolt-amperes, capacity determines the absolute maximum load the equipment can sustain continuously. For instance, a premium High Voltage Power Transformer designed for 110kV or 115kV networks typically offers a broad capacity range from 6,300 kVA up to a massive 120,000 kVA. Pushing beyond your specified rating risks severe thermal degradation.
Cooling Methods: Thermal management dictates performance limits. The ONAN method relies on the natural convection of both the internal liquid and ambient outside air. In contrast, the ONAF method integrates external fans to forcefully blow air across the radiator fins. This substantially boosts cooling efficiency during peak demand. For massive loads, the OFAF setup utilizes mechanical pumps to drive fluid circulation alongside heavy-duty fans.
Vector Groups and Impedance: The vector group configuration defines winding connections. A common standard for 110kV systems is YNd11. This determines the resulting phase shift between primary and secondary voltages. In parallel, impedance voltage remains a vital specification. It directly influences voltage drop calculations and short-circuit current mitigation. Field engineers always look for low no-load loss and minimal partial discharge to guarantee high operational efficiency.
Looking at the broader landscape, the high-voltage equipment sector is undergoing a rapid transformation. Global grid modernization initiatives are driving this massive shift. Industry analysts note a surge in demand for ultra-reliable transmission infrastructure. The aggressive integration of decentralized renewable energy sources largely fuels this growth. Vast wind and solar farms are proliferating globally. Consequently, modern grids require highly adaptable transformers capable of handling fluctuating and intermittent loads without degrading over time.
Moreover, there is a distinct shift toward smart digitalization across the sector. Modern units are increasingly outfitted with advanced internet-connected sensors. These devices monitor oil temperature, moisture levels, and dissolved gases in real-time. This transition from reactive maintenance to predictive analytics significantly reduces unplanned downtime for plant operators. Additionally, regulatory pressures are encouraging the exploration of biodegradable ester fluids. This signals a greener and more sustainable future for global transmission networks.
Understanding the physical anatomy of your installation greatly assists in proactive maintenance. It also speeds up troubleshooting when control room alarms sound.
The Core and Windings: Constructed from precisely stacked, high-grade cold-rolled grain-oriented silicon steel, the core is engineered to minimize magnetic hysteresis and eddy current losses. The surrounding windings are typically wound from electrolytic copper or aluminum. They are heavily insulated with specialized kraft paper to endure relentless high-voltage stresses.
The Transformer Tank and Radiators: Serving as the primary housing, the heavy-duty steel tank encapsulates the core, windings, and dielectric fluid. It is meticulously welded to withstand internal pressure surges and harsh external weathering. Attached to the tank exterior, the radiator banks dramatically expand the surface area available for thermal exchange.
Conservator and Breather System: Mounted prominently above the main housing, the conservator tank accommodates the natural expansion and contraction of the oil as operating temperatures fluctuate. Connected to this is the breather, which is often packed with color-indicating silica gel. When a maintenance technician inspects the unit, the breather ensures that any ambient air drawn into the conservator is completely stripped of moisture. This safeguards the fluid dielectric integrity.
Tap Changers: To maintain a stable output despite fluctuating grid inputs, On-Load Tap Changers or Off-Circuit Tap Changers physically alter the winding ratio. On-Load variants are particularly valuable. They execute these voltage adjustments seamlessly without interrupting the facility power supply.
When finalizing a procurement strategy, selecting the liquid-filled variant offers several distinct operational advantages. The table below highlights the critical differences.
Feature | Oil-Immersed High Voltage Transformer | Dry-Type Transformer |
|---|---|---|
Cooling Efficiency | Exceptional. Liquid dielectric rapidly transfers heat away from core components. | Moderate. Relies solely on ambient air circulation. |
Voltage & Capacity Limits | Scales massively up to 110kV, 115kV, and capacities exceeding 120,000 kVA. | Generally restricted to medium voltage and lower capacity applications. |
Installation Location | Ideal for harsh outdoor environments. Hermetically sealed against rain and UV. | Strictly indoor use. Highly sensitive to moisture and dust ingress. |
Maintenance Needs | Requires periodic oil sampling and dissolved gas analysis. | Minimal fluid maintenance, but requires frequent vacuuming of air ducts. |
Initial Capital Cost | Highly cost-effective at large utility scales. | Significantly more expensive per kVA at higher capacities. |
These highly adaptable systems are deployed across some of the most demanding sectors in the global economy.
Utility Substations and Grid Transmission: Transporting electricity across vast geographical distances often incurs crippling line losses. To prevent this, utility companies leverage a High Voltage Power Transformer to drastically step up the voltage at the generation plant. Subsequently, similar units step the voltage back down at localized substations before distribution to residential and commercial networks.
Renewable Energy Integration: Green energy installations inherently generate power at lower, often variable voltages. Specialized step-up transformers are absolutely essential to elevate this harvested energy to transmission-grade levels. This allows solar and wind farms to synchronize seamlessly with the national grid.
Heavy Manufacturing and Mining: Industrial titans consume massive amounts of stable electricity. This includes steel mills, petrochemical refineries, and deep-shaft mining operations. Oil-immersed setups deliver the rugged, continuous power required to drive heavy machinery, arc furnaces, and conveyor systems without devastating interruptions.
How do you actually select the right unit? Let us translate abstract advantages into a concrete selection checklist for engineering teams.
Assess Your Load Profile: Calculate your continuous baseline load and peak demand. Always build in a twenty percent capacity buffer for future expansion. If your facility currently demands 50 MVA, specify a 60 MVA unit to prevent future bottlenecks.
Determine the Installation Environment: If the unit sits outdoors exposed to torrential rain, snow, and UV radiation, a hermetically sealed oil-immersed tank is mandatory. Dry-type units simply cannot survive these harsh conditions without expensive custom enclosures.
Evaluate Total Cost of Ownership: Look beyond the initial purchase price. High-efficiency oil-immersed transformers feature ultra-low no-load losses. This translates to massive electricity savings over a thirty-year operational lifespan. Compare the guaranteed loss values from different manufacturers.
Verify Compliance and Testing: Demand full Factory Acceptance Testing documentation. Ensure the equipment passes lightning impulse tests, temperature rise evaluations, and acoustic sound level measurements strictly per IEC 60076 or IEEE standards.
Protecting this substantial capital investment requires strict adherence to a proactive maintenance regimen.
Dissolved Gas Analysis: Extracting and analyzing the dielectric fluid is arguably the most critical diagnostic procedure. This analysis detects microscopic traces of combustible gases suspended in the oil. By interpreting these gas signatures, technicians can identify nascent internal faults, such as localized arcing or cellulose degradation, long before they manifest as catastrophic hardware failures.
Routine Visual and Electrical Testing: Field operators must conduct regular visual sweeps. Check the silica gel breather, cooling fan operation, and structural welds for microscopic oil weeps. Simultaneously, scheduled electrical diagnostics, including insulation resistance and winding resistance tests, confirm the unit remains within factory safety parameters.
Adherence to Global Standards: It is imperative that the equipment is engineered and maintained in strict accordance with global frameworks. Compliance with these rigorous standards guarantees the hardware can safely endure the violent electrical transients and thermal cycling inherent to high-voltage environments.
Integrating a High Voltage Power Transformer into your infrastructure is a monumental decision. It dictates the safety, efficiency, and resilience of your entire electrical network. By thoroughly understanding core technical metrics, ranging from voltage classes to advanced cooling methodologies, you can map them directly to your specific industrial requirements. This positions your facility for decades of uninterrupted productivity. As the energy landscape continues to evolve, prioritize uncompromising build quality and adherence to strict international standards.
Are you ready to secure a reliable power backbone for your next project? Evaluate your grid requirements and explore high-performance solutions tailored to your exact specifications. Visit TSTY to find the precise equipment that matches your project demands and ensures long-term operational excellence.
With a rigorous maintenance schedule, routine oil diagnostics, and strict adherence to rated load limits, these robust units can easily operate reliably for twenty-five to thirty years. In many well-maintained utility applications, they have been known to exceed four decades of continuous service.
Industry best practices strongly recommend performing a comprehensive dissolved gas analysis and general fluid quality assessment at least once annually. However, for aging infrastructure or units subjected to relentless peak loads, accelerating this to a bi-annual testing cycle is highly advisable to catch degradation early.
While their massive physical footprint and the inherent flammability of mineral oil typically relegate them to outdoor switchyards, indoor installation is entirely possible. Doing so requires strict compliance with local fire codes. You must install advanced blast walls, automated fire suppression systems, and extensive oil catchment bunding to contain potential fluid leaks.
The distinction lies entirely within the nominal voltage classifications utilized by different regional power grids. Both fall squarely under the high-voltage umbrella. However, a transformer must be precisely wound and engineered to match the exact voltage profile of the grid it interfaces with. This prevents excessive core losses and ensures optimal power transfer.
Fresh silica gel is typically blue or bright orange, acting as a highly effective desiccant. When it transitions to a pink or clear hue, it indicates total moisture saturation. At this point, it can no longer protect the conservator tank. Maintenance personnel must replace or thermally regenerate the gel immediately. Failure to do so allows ambient moisture to contaminate the dielectric fluid, rapidly destroying its insulating capabilities.
Due to the complex engineering, custom winding processes, and rigorous factory testing required, lead times typically range from six to twelve months. Large-scale bespoke units exceeding 100 MVA may take even longer. Procurement teams must factor these manufacturing timelines into their project schedules early on.
Extreme cold can increase oil viscosity, temporarily reducing cooling efficiency during startup. Conversely, severe heatwaves push the ambient temperature closer to the equipment maximum thermal threshold, limiting its peak load capacity. High-quality manufacturers account for regional climate extremes during the design phase, specifying appropriate oil grades and oversized radiator banks to ensure stable operation.
