The Importance and Function of Transformer Oil Pillow

Transformers are vital components in electrical power systems, and their reliable operation depends on proper insulation and cooling. One key element that helps maintain transformer efficiency is the oil pillow (also called a conservator tank or expansion tank). This small but crucial device plays a significant role in protecting the transformer from damage caused by temperature changes and external contaminants.

How Does a Transformer Oil Pillow Work?

Transformer oil serves as both an insulator and a coolant. However, as the transformer operates, the oil heats up and expands. When the transformer is off, the oil cools and contracts. Without a proper system to handle these volume changes, the transformer could develop leaks, internal pressure issues, or even insulation failure.

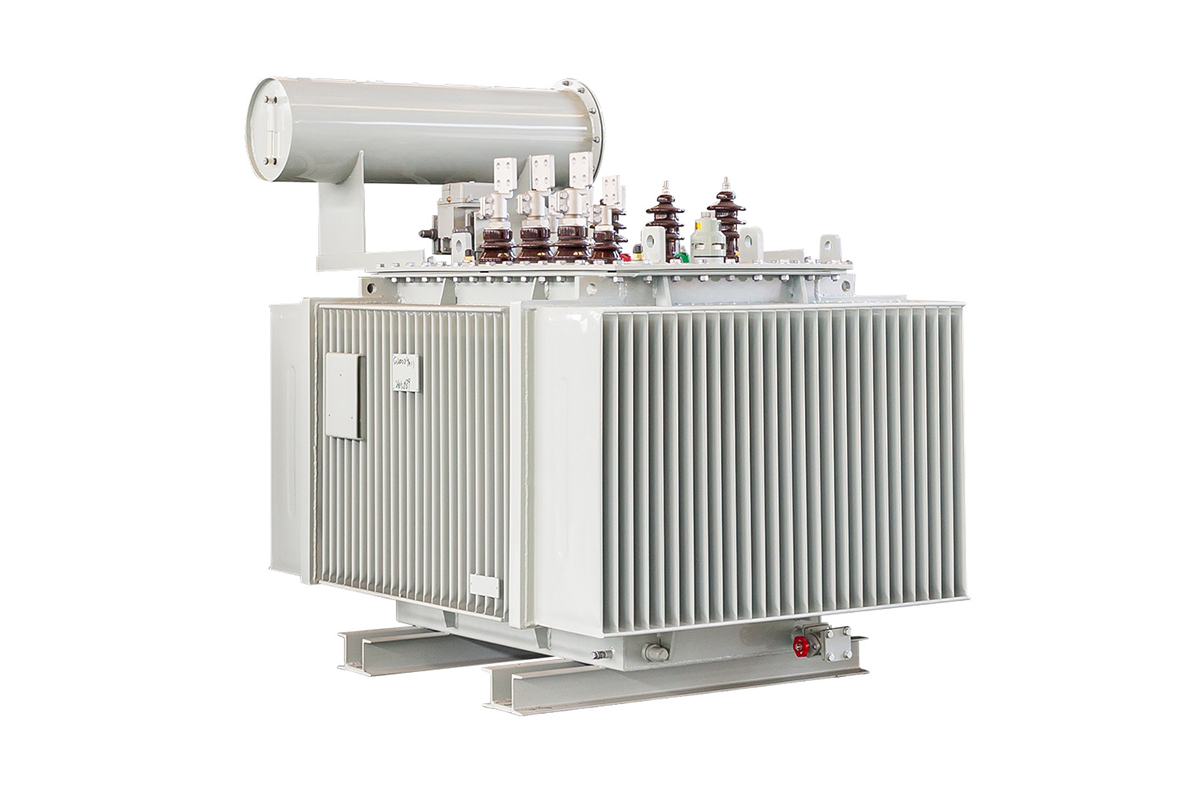

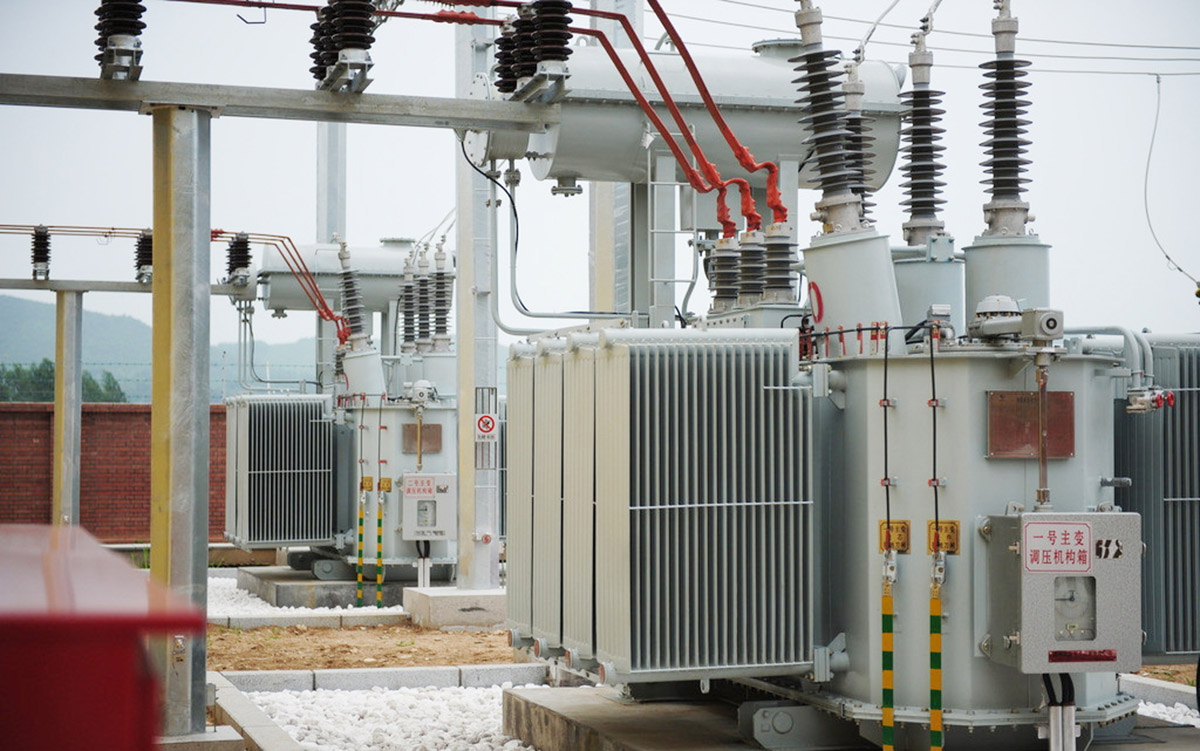

The oil pillow is a separate tank connected to the main transformer tank. Its primary functions include:

Compensating for Oil Expansion & Contraction

When the oil heats up, it expands and flows into the conservator.

When the oil cools, it contracts, and the stored oil flows back into the main tank.

This prevents excessive pressure buildup or vacuum formation inside the transformer.

Preventing Moisture and Air Contamination

The oil pillow is often fitted with a breather containing silica gel, which absorbs moisture from incoming air.

This keeps the oil dry, preventing oxidation and maintaining its insulating properties.

Maintaining Stable Oil Levels

A magnetic oil level gauge is usually installed to monitor oil volume, alerting operators to potential leaks or abnormal conditions.

Protecting Against External Pollutants

Some conservators use nitrogen blankets to separate the oil from outside air, further reducing oxidation risks.

Why Is the Oil Pillow Important?

Extends Transformer Lifespan – By preventing oil degradation and mechanical stress.

Ensures Safe Operation – Avoids dangerous pressure fluctuations that could rupture the tank.

Reduces Maintenance Costs – Minimizes moisture-related failures and insulation breakdown.

Without an oil pillow, transformers would be far more prone to failures, leading to costly repairs and power outages. Thus, this small but essential component plays a big role in keeping electrical grids stable and efficient.

Conclusion

The transformer oil pillow may seem like a simple addition, but its role in managing oil expansion, preventing contamination, and maintaining pressure is critical for transformer reliability. Proper maintenance—such as checking silica gel breathers and oil levels—ensures long-term performance and prevents unexpected failures.
