The primary engineering distinction between dry type transformers and liquid-filled transformers lies in their dielectric insulation and cooling medium: dry type transformers utilize solid ambient air, cast resin, or vacuum pressure impregnated (VPI) varnish systems, making them exceptionally fire-safe, non-polluting, and suitable for indoor or environmentally sensitive installations without spill containment, whereas liquid-filled transformers employ mineral oil or synthetic ester fluids for superior thermal dissipation and dielectric strength, making them ideal for high-voltage outdoor substations, heavy industrial loads, and cost-effective bulk power distribution.
Section (H2 Topic) | Summary |
Fundamental Difference: Insulation and Cooling Medium | Explores solid dielectric systems (VPI and cast resin) versus liquid dielectric fluids (mineral oil and synthetic esters), highlighting how heat transfer mechanisms and dielectric constants dictate physical design and operational envelopes. |
Dry-Type Transformers | Provides a granular technical review of VPI and Cast Resin Dry Type Transformers (CRT), detailing winding construction, fire-retardant properties, enclosure protection classes, and low-maintenance indoor power distribution advantages. |
Liquid-Filled Transformers | Examines oil-immersed transformer architecture, conservator and sealed tank configurations, dielectric liquid circulation dynamics, and high-capacity step-down efficiency in utility and outdoor industrial environments. |
Thermal, Efficiency, and Noise Performance | Compares temperature rise ratings, thermal insulation classes (Class F and H vs. Class A), loss profiles (no-load and load losses), and acoustic decibel outputs across varying load profiles. |
Installation and Site Considerations | Analyzes physical footprint requirements, total structural loading weight, clearances, containment pits, oil-water separators, and indoor vault fire barrier compliance standards. |
Maintenance and Lifecycle | Evaluates routine preventive maintenance procedures, oil sampling, dissolved gas analysis (DGA), winding insulation resistance testing, mean time between failures (MTBF), and 30-year lifecycle expenditure models. |
Safety and Environmental Considerations | Assesses flashpoint thresholds, fire propagation risks, smoke toxicity, soil/groundwater contamination hazards, recyclable material recovery, and compliance with stringent environmental protection norms. |
Application-Based Selection | Presents an actionable procurement matrix mapping optimal transformer choice against specific end-user sectors including commercial buildings, heavy industrial plants, renewable generation, and underground mining. |
The foundational engineering distinction between dry type transformers and liquid-filled units lies entirely in the chemical state and thermodynamic behavior of their dielectric insulation and cooling media, where dry type transformers rely on atmospheric air circulation combined with solid resin or varnish encapsulation, whereas liquid-filled transformers utilize circulating dielectric fluids to continuously extract thermal energy from core and winding assemblies.
From an electrical insulation standpoint, dielectric strength defines the maximum electric field a material can withstand before electrical breakdown occurs. Liquid dielectric fluids, such as refined mineral oil or synthetic ester compounds, possess significantly higher dielectric breakdown voltages (typically exceeding 40 kV to 60 kV across a standard gap) compared to ambient air. This superior dielectric performance enables liquid-filled units to maintain tight physical clearances between primary windings, secondary windings, and grounded core steel, resulting in a highly compact core-and-coil geometry for ultra-high voltage applications (110 kV, 220 kV, and above). Conversely, dry type transformers depend on solid dielectric materials—such as fiberglass-reinforced epoxy resin or high-temperature Nomex paper—supplemented by air gaps, requiring wider physical spacing to achieve equivalent impulse withstand ratings (BIL).
Thermodynamically, heat dissipation in transformers is governed by convection, conduction, and radiation. Liquid-filled transformers take advantage of natural thermosiphon fluid dynamics or forced liquid circulation (ONAN, ONAF, OFAF cooling modes). Heat generated within the copper or aluminum windings conducts directly into the surrounding liquid, which circulates upward through radiator banks where heat is dissipated into the ambient air. In contrast, dry type transformers utilize natural air convection (AN) or forced air blowers (AF) directed through internal cooling ducts cast into the winding structures. Because air has a substantially lower volumetric heat capacity and thermal conductivity than transformer oil, dry type transformers operate at higher internal temperature rises, demanding specialized high-temperature winding insulation systems rated for Class F (155°C) or Class H (180°C) operating limits.
Furthermore, magnetic flux density and core design are optimized differently across these two topologies. Because liquid cooling maintains lower peak operating temperatures across the core steel, silicon steel laminations in liquid-filled units experience lower hysteresis and eddy current losses per kilogram. Dry type transformers must balance magnetic saturation limits against elevated thermal equilibrium states. When specifying power distribution systems, engineers must consult detailed technical documentation such as the Comprehensive Technical Guide to Dry Type Transformers to properly evaluate how insulation class ratings, ambient derating factors, and cooling duct geometries impact long-term operational reliability in demanding commercial and industrial network environments.
Parameter / Characteristic | Dry Type Transformers | Liquid-Filled Transformers |
Primary Dielectric Medium | Air / Solid Epoxy Resin / VPI Varnish | Mineral Oil / Synthetic Ester / Silicone Fluid |
Dielectric Breakdown Strength | Moderate (Requires wider physical spacing) | Very High (Compact winding clearances) |
Standard Insulation Class | Class F (155°C) / Class H (180°C) | Class A (105°C) with oil thermal limits |
Heat Transfer Mechanism | Air Convection (AN) / Forced Air (AF) | Liquid Convection (ONAN/ONAF/OFAF) |
Impulse Voltage Withstand (BIL) | Standard (Suitable up to 35 kV medium voltage) | Extremely High (Up to extra-high voltage grid levels) |
Fire Safety Rating | Non-flammable / Self-extinguishing (F1 class) | Combustible (Requires fire barrier walls/sprinklers) |
Working Principle Insights: The operational stability of solid dielectric insulation depends heavily on minimizing partial discharge (PD) within microscopic voids inside the epoxy resin. During the vacuum casting process, liquid epoxy resin is injected under high vacuum pressure to completely purge air bubbles, ensuring that partial discharge levels remain below 10 picocoulombs (pC) at 1.2 times rated nominal voltage.

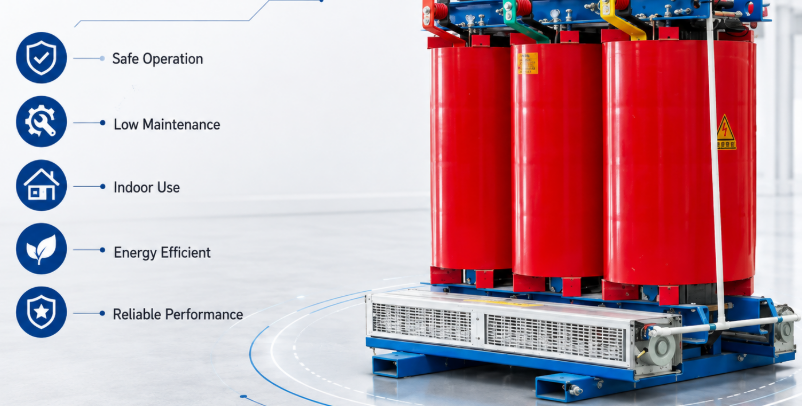

Dry type transformers are static electrical machines that utilize solid state insulation systems and ambient air convection to transfer alternating electrical energy between circuits without the use of liquid dielectric flammables, making them the primary choice for indoor, high-density, and environmentally controlled power distribution applications.

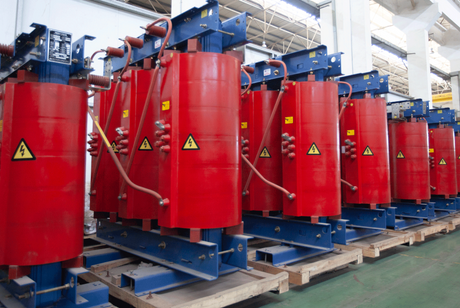

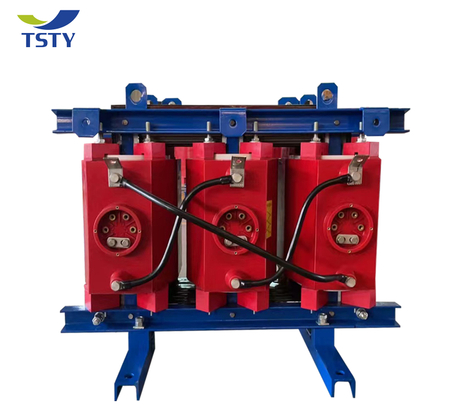

Within the category of dry type transformers, two dominant design technologies exist: Vacuum Pressure Impregnated (VPI) units and Cast Resin Dry Type Transformers (CRT). VPI transformers utilize high-temperature polyester or silicone varnish applied under alternating vacuum and pressure cycles to penetrate multi-layer tape and Nomex insulation surrounding the windings. After impregnation, the core-and-coil assembly is thermally cured in an oven, forming a solid, moisture-resistant, and mechanical stress-tolerant matrix. CRT units, on the other hand, feature high-voltage windings completely encapsulated in quartz-filled epoxy resin inside vacuum casting molds. This solid cast envelope provides absolute protection against aggressive atmospheric contaminants, chemical vapors, high humidity, and airborne particulates, effectively eliminating moisture absorption risks during de-energized periods.
Mechanical design considerations for dry type transformers revolve around enclosure protection classes (ranging from standard IP00 open-frame units for installation inside clean switchgear cabinets, up to IP23 or IP31 ventilated protective enclosures for general indoor plant floors). In highly specialized industrial environments, IP54 non-ventilated enclosures equipped with air-to-water or air-to-air heat exchangers are deployed. Winding conductors are typically constructed from high-grade electrolytic copper or electrical-grade aluminum strip foil. Strip-wound low-voltage windings significantly reduce axial short-circuit forces during downstream fault conditions compared to conventional wire-wound designs, ensuring structural integrity during severe electrical grid disturbances.
From an operational standpoint, modern industrial installations frequently integrate specialized step-down distribution units such as a Three-Phase Cast Resin Dry Type Transformer (63 kVA to 750 kVA) to feed low-voltage motor control centers, commercial HVAC networks, and sensitive IT server infrastructures directly at the load center. Eliminating long low-voltage cable runs significantly reduces I⊃2;R copper line losses, improves voltage regulation, and enhances overall systemic electrical efficiency inside commercial and industrial facilities.
Component / Specification | Technical Parameter / Material Standard |
Power Rating Range | 50 kVA up to 25 MVA (Standard Medium Voltage range) |
Primary Voltage Ratings | 1.1 kV, 3.3 kV, 6.6 kV, 11 kV, 22 kV, 33 kV, 35 kV |
Winding Material | High-Conductivity Electrolytic Copper or Aluminum Foil |
Encapsulation Material | Epoxy Resin mixed with Silica Powder Filler (Class F/H) |
Enclosure Ingress Protection | IP00, IP20, IP21, IP23, IP31, IP54 (Custom engineered) |
Temperature Rise Limit | 100 K (Class F insulation) / 125 K (Class H insulation) |
Short-Circuit Thermal Capacity | Standard 2-second withstand per IEC 60076-5 / IEEE C57.12.01 |
Maintenance Advisory: While dry type units require significantly less maintenance than liquid units, annual inspection must include micro-ohmmeter winding resistance checks, megohmmeter insulation resistance (IR) testing at 2.5 kV DC, and strict checking of forced-air ventilation fan thermistor controllers (PT100 sensors) embedded directly into the low-voltage windings.
Liquid-filled transformers are heavy-duty electromagnetic power units that submerge core and winding assemblies in a sealed or conservator-equipped tank filled with dielectric fluid, leveraging fluid dynamics to provide high thermal cooling capacity and superior dielectric strength across medium and high voltage power networks.
The structural anatomy of a liquid-filled transformer centers on a hermetically sealed steel tank equipped with external cooling radiators, magnetic core laminations made from high-permeability grain-oriented silicon steel (CRGO), and cellulose paper-insulated copper or aluminum windings. The dielectric fluid serves a dual purpose: it acts as a primary electrical insulation barrier between high-voltage leads and the grounded steel tank, and it serves as a dynamic thermal transfer fluid. As heat is generated during electrical operation, convection currents drive warm oil upward toward the top of the tank, where it enters corrugated fin walls or external radiator banks. Cooling fans or forced oil pumps can be thermostatically engaged to boost heat dissipation capacity during peak load conditions.
Liquid-filled designs generally fall into two primary mechanical configurations: hermetically sealed flexible corrugated tank units and conservator tank units equipped with rubber air-cell bladders. Hermetically sealed transformers eliminate contact between the internal dielectric liquid and ambient atmospheric oxygen/moisture, completely preventing fluid oxidation, sludge formation, and moisture-induced dielectric degradation. Conservator designs, typically utilized for high-capacity power transformers above 10 MVA, allow thermal expansion and contraction of the oil into an overhead expansion tank equipped with a silica-gel desiccant breather or flexible rubber membrane to isolate the fluid from moisture ingress.
The selection of dielectric fluid plays a decisive role in transformer operating characteristics. While standard severe-refined mineral oil (IEEE C57.106 / IEC 60296) remains the industry baseline due to low viscosity and economical cost, modern power grids increasingly adopt high-fire-point natural esters (derived from vegetable oils) or synthetic ester fluids. Ester liquids possess flashpoints exceeding 300°C (K-class fluids), drastically reducing fire risks while offering high biodegradability in environmentally sensitive agricultural or watershed installation sites.
Component / Subsystem | Material Construction & Technical Standard |
Tank Construction | Shot-blasted Structural Steel with Anti-corrosive Epoxy Coating |
Dielectric Fluid Options | Naphthenic Mineral Oil, Synthetic Ester (IEC 61099), Natural Ester |
Core Material | Cold-Rolled Grain-Oriented (CRGO) Silicon Steel Sheets |
Winding Conductor Insulation | Thermally Upgraded Kraft Paper (TUK) / Continuously Transposed Cable |
Protective Devices | Buchholz Relay, Pressure Relief Valve (PRV), Oil Level Gauge (OTI/WTI) |
Cooling Configurations | ONAN (Natural Air), ONAF (Forced Air), OFAF (Forced Oil & Air) |
Tap Changer Systems | Off-Circuit Tap Changer (OCTC) or On-Load Tap Changer (OLTC) |
Operational Principle & Safety Controls: Liquid-filled units above 500 kVA rely on gas-actuated Buchholz relays installed in the pipework between the main tank and conservator. Internal dielectric breakdown or localized arcing generates decomposition gases that accumulate in the relay housing, triggering a two-stage alarm for early fault detection before catastrophic tank rupture occurs.
Evaluating thermal limits, electrical efficiency curves, and acoustic noise emissions reveals fundamental performance trade-offs: liquid-filled transformers excel at thermal dissipation and operate at lower audible decibel levels, whereas dry type transformers operate at higher internal temperature limits with thermal characteristics optimized for fluctuating indoor load profiles.
Thermal management dictates transformer longevity, as insulation degradation follows Arrhenius thermal aging laws (where every 6°C to 8°C increase above maximum rated insulation temperature cuts insulation life in half). Dry type transformers utilize Class F (155°C limit, 100 K rise) or Class H (180°C limit, 125 K rise) insulation systems, allowing them to withstand elevated ambient temperatures without mechanical breakdown. Liquid-filled units typically operate under Class A thermal limits (105°C insulation, 60 K or 65 K top-oil temperature rise). Because liquid oil conducts heat far more effectively than air, oil-filled transformers offer superior transient overload capacity, handling emergency short-term load peaks without exceeding critical insulation thresholds.
Efficiency calculations require analyzing two distinct loss components: no-load losses (core losses caused by continuous magnetic hysteresis and eddy currents in the steel laminations) and load losses (I⊃2;R copper losses occurring within the winding conductors under load). Liquid-filled transformers generally exhibit higher baseline efficiency at high load factors (above 70% load) because their compact winding design minimizes total conductor length and winding resistance. Dry type transformers are optimized for low no-load losses, providing exceptional partial-load efficiency in commercial facilities operating at average load factors of 30% to 50%.
Acoustic performance is an increasingly crucial factor in indoor commercial, healthcare, and residential installations. Transformer hum originates from magnetostriction—the microscopic expansion and contraction of core steel laminations under alternating magnetic fields. Liquid-filled transformers benefit from the sound-dampening mass of the surrounding fluid and heavy steel enclosure, typically operating 3 dB to 8 dB quieter than equivalent kVA-rated dry type units. Dry type units require precision core clamping, step-lap miter joint core stacking, and sound-dampening anti-vibration rubber pads to meet stringent municipal acoustic codes.
Performance Metric | Dry Type Transformers | Liquid-Filled Transformers |
Maximum Insulation Temperature | 155°C (Class F) / 180°C (Class H) | 105°C (Class A) / 120°C (Thermal Kraft) |
Standard Temperature Rise Limit | 80 K, 100 K, or 125 K winding rise | 55 K, 60 K, or 65 K oil/winding rise |
Peak Efficiency Load Factor | Optimal at 30% to 50% partial load | Optimal at 50% to 80% heavy load |
Transient Overload Capacity | Moderate (Requires forced cooling fans) | High (Large liquid thermal mass absorbs peaks) |
Acoustic Noise Levels (dB) | Higher (45 dB – 68 dB depending on kVA) | Lower (38 dB – 60 dB depending on kVA) |
Cooling Enhancement Option | Forced air fans increase rating by 33% | Forced oil/air pumps increase rating by 25-40% |
Engineering Design Perspective: European and industrial customers increasingly request hybrid dry type transformer configurations featuring integrated cross-flow forced air cooling fans governed by digital temperature controllers. This configuration permits continuous operation at 133% of nominal rated kVA capacity during peak production shifts without causing thermal over-stress to the solid resin insulation.
Site installation requirements represent a decisive factor in transformer selection, as liquid-filled transformers require extensive civil works including fluid containment sumps and outdoor clearance zones, whereas dry type transformers can be installed directly adjacent to electrical load centers within standard indoor utility rooms.

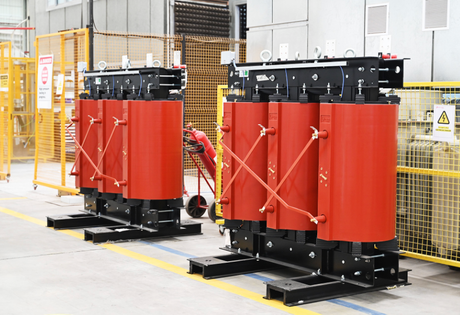

From a spatial and civil engineering standpoint, dry type units provide unparalleled installation flexibility. Lacking combustible fluids, they do not require specialized fireproof concrete vault construction, blast-resistant barrier walls, or automatic deluge fire suppression systems under National Electrical Code (NEC Article 450) and IEC standards. A dry type transformer can be positioned directly inside high-rise commercial buildings, hospital basements, industrial mezzanines, or integrated into modular indoor unit substations. This close proximity to primary power distribution switchgear reduces heavy low-voltage busway lengths, yielding substantial material cost savings during facility construction.
Conversely, liquid-filled transformer installations demand comprehensive environmental protection and fire safety infrastructure. Standard outdoor installations require concrete oil containment pits (catch basins) sized to retain 110% of the transformer's total fluid volume in the event of tank rupture, preventing soil and groundwater contamination. In addition, oil-water separators must be integrated into site drainage systems to treat rainwater runoff from the transformer pad. Minimum clearance distances from building structures, fire-rated exterior walls, or adjacent electrical equipment must be maintained (typically 3 to 7 meters depending on fluid type and oil volume) to comply with NFPA 850 fire protection recommendations.
Weight and dimensional footprints also vary significantly. Liquid-filled transformers are substantially heavier than dry type units of equivalent kVA rating due to the mass of the oil (which typically accounts for 25% to 35% of total unit weight). However, because oil provides higher dielectric clearance efficiency, the overall physical footprint (length x width) of a liquid unit can be slightly more compact than an open dry type unit with full clearance enclosures. Civil engineers must carefully verify floor loading limits (kg/m²) when planning indoor upper-floor installations of heavy dry type transformers.
Installation Factor | Dry Type Transformers | Liquid-Filled Transformers |
Location Suitability | Indoor, Basement, Mezzanine, Clean Rooms | Outdoor Substations, Pad-Mount Enclosures |
Fire Vault Construction | Not required under standard codes | Required for indoor installations (NFPA 70) |
Fluid Containment Sump | Not required (Zero liquid risk) | Mandatory (110% total oil volume capacity) |
Civil Footprint & Clearances | Compact indoor spacing near switchgear | Requires safety clearance zones from walls |
Structural Mass / Weight | Lighter total weight (No liquid mass) | Heavier (Liquid volume adds significant mass) |
Proximity to Load Center | Direct connection to indoor loads | Distant outdoor placement (Requires long cables) |
Installation Tip: When installing cast resin dry type transformers in indoor coastal or high-humidity environments, space heaters tied to relative humidity sensors must be installed within the enclosure. Energizing space heaters during de-energized maintenance outages prevents condensation forming on epoxy surfaces, preserving dielectric integrity.
Long-term operational expenditure (OPEX) and lifecycle management diverge sharply between transformer types, as dry type transformers offer an almost maintenance-free operational model limited to routine visual and thermal inspections, while liquid-filled units require continuous chemical testing and fluid condition monitoring throughout their 30-to-40-year service life.
Maintenance routines for liquid-filled transformers are centered on dielectric fluid diagnostics. Over time, electrical stress, thermal cycling, and oxygen exposure degrade mineral oil, producing acidic byproducts, sludge, and dissolved moisture that reduce dielectric breakdown voltage. Facility engineers must execute annual fluid sampling, testing for dielectric breakdown voltage (ASTM D877/D1816), neutralisation acid number, interfacial tension, and moisture content (Karl Fischer titration). In critical high-voltage substations, Dissolved Gas Analysis (DGA) via gas chromatography is conducted to detect early-stage fault modes such as partial discharge (hydrogen/methane generation), thermal overheating (ethylene/ethane), or high-energy arcing (acetylene).
In contrast, maintenance for dry type transformers is significantly simplified, resulting in substantially lower labor and specialized service costs over time. Primary maintenance tasks consist of periodic visual inspections, checking bolt torque on electrical busbar connections, cleaning dust accumulation from cooling ducts using compressed dry air or vacuum equipment, and verifying fan operation. Because dry type transformers contain no liquid seals, gaskets, valves, or oil pumps, common leak points are entirely eliminated, preventing sudden dielectric failure caused by fluid loss.
When analyzing Total Cost of Ownership (TCO) across a standard 30-year operational lifecycle, initial capital expenditure (CAPEX) for a dry type transformer is typically 15% to 30% higher than a standard mineral oil-filled unit of equivalent kVA rating. However, when factoring in civil construction costs (eliminating oil containment pits, blast walls, and fire suppression systems), reduced routine maintenance labor, and lower environmental compliance overhead, dry type transformers frequently achieve lower net lifetime costs for indoor industrial and commercial applications.
Maintenance Activity | Dry Type Transformers | Liquid-Filled Transformers |
Routine Inspection Interval | Annual visual and thermal inspection | Semi-annual fluid and gauge monitoring |
Dielectric Fluid Sampling / Testing | None (Zero fluid) | Annual (Breakdown voltage, acidity, moisture) |
Dissolved Gas Analysis (DGA) | Not applicable | Annual or continuous online DGA monitoring |
Cleaning Requirements | Vacuum / blow dust from resin cooling channels | External radiator washing, leak checks |
Gasket / Seal Replacement | None | Periodic replacement of tank and bushing seals |
Expected Operational Lifespan | 25 to 30+ Years | 30 to 40+ Years (With fluid reconditioning) |
Lifecycle Optimization Tip: To maximize the operational life of indoor dry type units, industrial plant managers should utilize infrared thermography during peak load conditions annually. Thermal imaging rapidly identifies high-resistance electrical connections at bushing terminals before thermal runaway damages surrounding epoxy encapsulation.
Safety and environmental protection metrics heavily favor dry type transformers in indoor and ecologically sensitive locations due to their total elimination of combustible oils and toxic leakage hazards, whereas liquid-filled units require strict containment protocols and high-fire-point fluid selection to mitigate environmental risk.
Fire safety is the single most critical parameter governing indoor transformer specification. Standard mineral oil utilized in liquid-filled transformers has a flashpoint of approximately 140°C to 160°C and a fire point around 170°C, classifying it as a flammable Class IIIB liquid. In the event of severe internal electrical fault arc-flash, rapid oil vaporization can cause catastrophic tank over-pressurization, rupture, and intense oil-fueled fires. While ester-based fluids (synthetic/natural) raise flashpoints above 300°C (K-class compliance), liquid fire risks can never be reduced to absolute zero in liquid-filled topologies.
Dry type transformers, particularly Cast Resin units complying with IEC 60076-11 Class F1 fire behavior standards, offer self-extinguishing flame-retardant performance. The quartz-filled epoxy resin formulation resists ignition, generates minimal smoke emissions, and releases no toxic halogen gases or dioxins during exposure to external structural fires. This inherent safety profile allows dry type units to be safely installed in high-density public venues, commercial office towers, subway stations, underground mining shafts, and chemical processing facilities where fire containment is paramount.
From an environmental sustainability standpoint, oil leaks from conventional liquid-filled transformers pose severe soil and groundwater contamination risks. A single transformer oil spill requires costly environmental remediation, excavation of contaminated soil, and strict reporting to environmental regulatory agencies. Dry type transformers represent a zero-spill technology. Furthermore, modern cast resin transformers are designed for end-of-life circular economy recyclability, allowing pure copper or aluminum winding conductors and high-grade core steel to be easily separated and recycled upon decommission.
To explore engineered step-down equipment with high fire safety ratings, engineering teams can assess a Cast Resin Three-Phase Dry Type Transformer (63 kVA to 750 kVA) engineered for demanding industrial power centers.
Safety / Environmental Metric | Dry Type Transformers | Liquid-Filled Transformers |
Fire Flammability Hazard | Non-flammable / Self-extinguishing (Class F1) | Combustible (Mineral oil) to Fire-Resistant (Ester) |
Flashpoint Temperature | No flashpoint (Solid insulation) | 145°C (Mineral oil) / >300°C (Synthetic ester) |
Toxic Gas Emission During Fire | Extremely low, zero halogen generation | Heavy carbonaceous smoke, oil combustion gases |
Spill / Contamination Risk | Zero risk of fluid leakage or soil pollution | High risk of oil spill requiring containment pits |
Environmental Regulation Burden | Minimal regulatory compliance requirements | Strict environmental spill prevention (SPCC) rules |
End-of-Life Recyclability | High recovery rate of copper, aluminum, steel | Requires specialized waste oil disposal/handling |
Environmental Compliance Note: In eco-sensitive installations such as wind farms, marine off-shore platforms, and municipal water protection zones, engineering specifications increasingly standardize on cast resin units or ester-filled units to eliminate potential environmental liability under EPA and European REACH environmental protection frameworks.
Selecting the correct transformer technology requires matching site-specific environmental conditions, electrical load characteristics, fire safety codes, and budget constraints against the specialized capabilities of dry type and liquid-filled architectures.
To assist project engineers and procurement managers in making optimal equipment specification decisions, the selection process can be structured around distinct operating environments and technical requirements:
Indoor Commercial & Public Buildings: High-rise commercial complexes, hospitals, educational institutions, shopping centers, and airports strictly prioritize human fire safety and zero toxic smoke. Dry type transformers (particularly Cast Resin units) are the absolute industry standard here, eliminating the need for expensive exterior placement or reinforced fireproof concrete vaults.
Heavy Industrial & Chemical Processing Plants: Industrial facilities characterized by harsh chemical vapors, extreme ambient dust, or high humidity benefit significantly from cast resin dry type transformers. For installations requiring high-capacity step-down power (e.g., 10 MVA to 50 MVA main plant substations), outdoor liquid-filled transformers equipped with synthetic ester fluids provide superior cooling density and load capacity.
Renewable Energy Installations: Solar photovoltaic farms and wind turbine towers present unique spatial and environmental constraints. Wind turbine nacelles and base towers utilize compact, high-vibration-resistant cast resin dry type transformers to fit within restricted tower geometries. Conversely, utility-scale solar collector fields typically utilize pad-mounted liquid-filled transformers due to cost-effective outdoor bulk power conversion.
Underground Mining & Tunnelling: Confined underground environments require absolute explosion protection and fire safety. Dry type units are mandatory in underground mining operations to prevent catastrophic oil fire hazards in enclosed subterranean spaces.
Municipal Electrical Utility Distribution: Overhead pole-mounted and outdoor pad-mounted distribution transformers supplying residential residential neighborhoods rely almost exclusively on liquid-filled transformers due to lower capital acquisition costs, robust weatherproofing, and high thermal surge capacity.
For industrial facilities evaluating modular low-voltage step-down options, specifying a 3-Phase Dry Type Transformer (63-750 kVA) ensures seamless integration with modern indoor motor control centers and main distribution switchboards.
Application Sector / Environment | Recommended Transformer Type | Primary Selection Driver |
Commercial High-Rise & Hospitals | Cast Resin Dry Type Transformer | Fire safety, zero smoke toxicity, proximity to load |
Outdoor Utility Substation (>10 MVA) | Liquid-Filled (Mineral Oil / Ester) | High voltage capacity, cost efficiency, cooling |
Wind Turbine Tower Base / Nacelle | Cast Resin Dry Type Transformer | Compact footprint, vibration tolerance, safety |
Underground Mining & Rail Transit | VPI / Cast Resin Dry Type Transformer | Explosion prevention, zero fluid spill hazard |
Chemical / Petrochemical Plants | Ester Fluid-Filled or Enclosed Dry Type | Corrosion resistance, fire risk mitigation |
Residential Pad-Mount Distribution | Pad-Mounted Liquid-Filled Transformer | Outdoor durability, low CAPEX, high surge capacity |
Technical Summary & Specification Advice: When finalizing transformer technical specifications, project engineers must balance initial capital expenditure against 30-year operational costs. For indoor, high-density, and fire-sensitive installations, dry type transformers provide unmatched safety, zero containment compliance burdens, and minimal maintenance overhead, establishing them as the superior choice for modern sustainable infrastructure.
