Dry type transformers provide critical, fire-safe voltage regulation and electrical distribution across modern power grids without relying on liquid dielectrics.

As an industry specialist who has spent over two decades designing and deploying power distribution equipment for demanding industrial installations, I have seen firsthand how site limitations and stringent safety mandates shape equipment selection. Today’s facility managers and electrical design engineers face a complex challenge: delivering high power density, superior reliability, and absolute fire safety within compact indoor spaces or environmentally sensitive locations. Liquid-filled transformers, while traditional, bring inherent liabilities—such as toxic fluid leaks, expensive containment basins, complex fire-suppression systems, and elevated maintenance cycles.

Dry type transformers eliminate these operational friction points. Utilizing high-grade solid insulation materials alongside optimized air convection pathways, these units provide exceptional dielectric strength and thermal resistance. In modern industrial complexes, high-rise buildings, underground transit networks, and renewable energy plants, dry type units have shifted from an alternative solution to the baseline engineering standard. Understanding their underlying working principles, mechanical architecture, material specifications, and maintenance procedures is essential for specifying power systems that maximize continuous uptime, minimize operational hazards, and deliver superior return on investment.

1. Fundamental Physics of Solid-State Voltage Transformation

Dry type transformers operate strictly on the principles of electromagnetic induction, stepping voltage levels up or down without liquid media. When an alternating voltage is applied to the primary winding, it produces a dynamic, time-varying magnetic flux within the central laminated steel core. This alternating magnetic flux flows through the core and links directly with the secondary winding. In accordance with Faraday’s Law of Induction, a corresponding electromotive force (EMF) is induced across the secondary terminals, directly proportional to the turn ratio between the primary and secondary coils.

The primary operational difference between liquid-immersed and dry type units lies in the cooling and insulation mechanism. Liquid units depend on mineral oil or synthetic esters to absorb heat from the core and transfer it outward through radiation. Dry type transformers use high-grade solid dielectric materials combined with natural air circulation (AN) or forced air ventilation (AF) through internal cooling channels.

2. Core Electromagnetic Relations and Calculation Frameworks

The relationship governing voltage transformation is defined by the fundamental transformer equation:

In this formulation, E represents the root-mean-square (RMS) induced voltage in volts, f is the system frequency in Hertz, N denotes the total number of wire turns on the specific winding, and Φm is the peak magnetic flux within the core measured in Webers. The magnetic flux itself is a product of the core cross-sectional area (A) and the maximum flux density (Bm):

The ideal voltage transfer ratio between the primary voltage (V1) and secondary voltage (V2) corresponds directly to the winding turn numbers (N1 and N2):

Here, I1 and I2 represent the primary and secondary full-load currents, demonstrating the inverse relationship between current and voltage required to maintain energy conservation, minus internal core and copper losses.

Top Characteristics of High-Performance Defoamers

High-performance dry type transformers are built using step-lap silicon steel cores, high-grade insulation systems, and precision-engineered air channels.

To withstand short-circuit stresses, thermal expansion, and harsh operating conditions, the individual components of a dry type transformer must meet strict metallurgical and electrical specifications. Every element—from the grain alignment in the magnetic core to the winding foil geometry—directly affects the unit's thermal efficiency, sound levels, and total operating life.

1. Structural Core Design and Magnetic Circuit Optimization

The magnetic core serves as the primary pathway for alternating magnetic flux. High-performance dry type transformers utilize cold-rolled grain-oriented (CRGO) silicon steel laminations coated with inorganic insulation. To reduce eddy current losses and localized overheating, individual laminations are kept thin, typically between 0.23 mm and 0.30 mm.

Modern manufacturing uses step-lap mitred core stacking. Instead of 90-degree butt joints, the laminations are precision-cut at 45-degree angles with offset overlapping steps. This design aligns magnetic flux lines along the steel's grain structure, significantly lowering no-load losses, reducing excitation current demands, and cutting acoustic noise by 3 dB to 8 dB compared to conventional joint designs.

2. Winding Architecture and Dielectric Materials

The physical geometry and insulation of the transformer coils directly dictate its short-circuit strength and thermal endurance. High-voltage (HV) windings generally use continuous disc or multi-layer section designs, whereas low-voltage (LV) windings employ wide copper or aluminum foil sheets rather than round wires.

Foil windings offer substantial electrical and mechanical advantages:

1. Axial Stress Elimination: Foil sheets stretch across the full height of the coil, virtually eliminating axial mechanical forces during downstream short-circuit events.

2. Thermal Dissipation: The continuous metal layer reduces localized thermal hot spots and accelerates heat transfer outward to the cooling passages.

3. Reduced Partial Discharge: Uniform voltage gradients across the coil layers prevent localized voltage concentrations, keeping partial discharge levels exceptionally low.

The structural insulation relies on high-temperature dielectric materials, such as Nomex aramid papers, fiberglass-reinforced epoxies, and Class H resin systems.

Future Trends in Defoamer Technology and Manufacturing

Dry type transformers are built using two main insulation architectures: Cast Resin Transformers (CRT) and Vacuum Pressure Impregnated (VPI) units.

Choosing the right transformer architecture depends heavily on the installation environment. While both CRT and VPI designs operate dry without liquid dielectrics, their manufacturing methods, structural encapsulation, and environmental tolerances differ significantly. Selecting the appropriate design requires evaluating site humidity, chemical exposure, ambient temperature fluctuations, and maintenance accessibility.

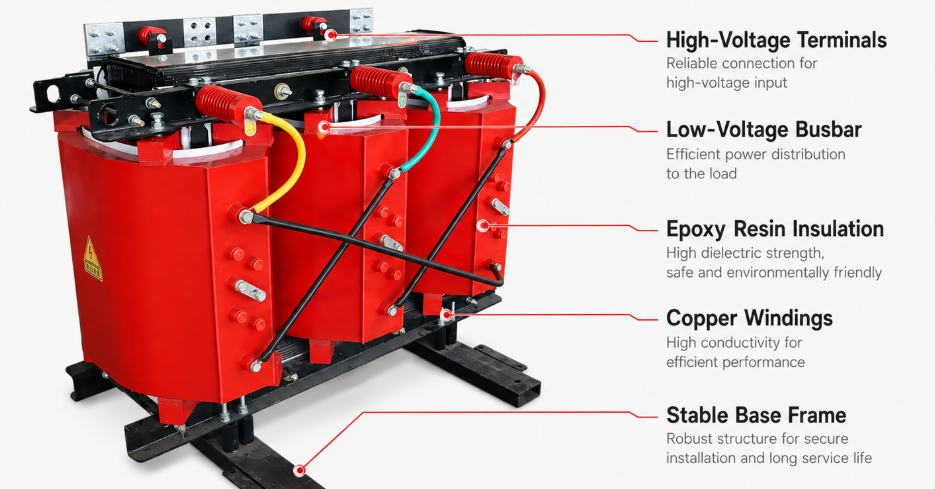

1. Cast Resin Transformers (CRT): Construction and Environment Fit

Cast Resin Transformers (CRT) feature high-voltage windings fully encapsulated in solid epoxy resin under a strict vacuum process. Pre-heated coils are placed into airtight casting molds, where liquid epoxy resin filled with silica flour is injected under deep vacuum. This process completely eliminates air bubbles and voids within the dielectric matrix, keeping partial discharge levels extremely low—typically under 10 pico-Coulombs (pC).

This solid resin encapsulation makes CRT units virtually immune to moisture, dust, and corrosive industrial atmospheres. They are ideal for harsh environments like offshore platforms, chemical plants, mining sites, and humid coastal areas. The thick resin layer also provides exceptional structural strength, helping the coils withstand severe electromechanical forces during grid short circuits.

For heavy industrial facilities requiring compact footprint distribution, high mechanical strength, and complete moisture protection, choosing a high-performance three phase dry type transformer ensures robust power delivery without the risk of dielectric breakdown or fluid leaks. Furthermore, these solid cast units comply with strict European C2, E2, and F1 performance classifications for environmental safety and fire resistance.

2. Vacuum Pressure Impregnated (VPI) Transformers: Engineering Flexibility

Vacuum Pressure Impregnated (VPI) transformers utilize an open-polyester or silicone resin impregnation process rather than solid casting. The pre-wound core and coil assemblies are placed inside a pressure vessel, where a high vacuum evacuates air and moisture from the insulation layers. High-temperature synthetic varnish is then injected to submerge the assembly, followed by positive pressure to force the resin deep into every pore. Finally, the assembly is cured in a commercial oven to form a solid, moisture-resistant bond.

VPI designs offer distinct practical benefits:

• Superior thermal dissipation, as the thinner insulation layer allows heat to exit the conductors efficiently.

• Lighter physical weight and smaller footprints compared to solid-cast alternatives.

• Excellent repairability, as individual coils can often be serviced or rewound on-site without discarding the entire assembly.

For indoor utility rooms, commercial office centers, and dry manufacturing plants, VPI transformers provide a cost-effective solution with excellent overload capacity and thermal stability.

3. Comparing CRT and VPI Architectural Differences

Enhancing Industrial Processes: The Benefits of Organic powdered silicone antifoam in Foam Control

Technical parameters—including KVA rating, short-circuit impedance, sound emission levels, and insulation thermal classes—define the operational limits of a dry type transformer.

Specifying a dry type transformer requires detailed evaluation of electrical, mechanical, and environmental metrics to match site conditions. Engineering teams must review nameplate parameters to prevent premature thermal aging, balance load requirements, and maintain grid stability under transient fault conditions.

1. Thermal Insulation Classes and Temperature Allowances

The service life of a dry type transformer depends on the thermal stability of its dielectric insulation. Standards such as IEC 60076-11 and IEEE C57.12.01 categorize insulation systems by maximum continuous operating temperature:

1. Class B (130°C): Rated for an 80°C temperature rise over a standard 40°C ambient baseline.

2. Class F (150°C): Rated for a 100°C temperature rise over ambient. Widely used across industrial applications.

3. Class H (180°C): Rated for a 125°C temperature rise over ambient. Highly recommended for heavy duty cycles and high ambient temperature locations.

4. Class C (220°C): High-temperature aramid material systems designed for extreme industrial overloads.

Operating a transformer 10°C above its rated thermal limit cuts the insulation's useful lifespan in half. Modern industrial facilities frequently specify Class H insulation while operating the unit at Class F temperature rises. This conservative approach creates a built-in thermal cushion, allowing the transformer to handle harmonic distortion and emergency overloads without accelerating thermal aging.

2. Impedance, Efficiency, and Acoustic Limits

Short-circuit impedance (expressed as a percentage, %Z) determines both voltage regulation under load and the maximum short-circuit current during downstream faults. Standard dry type distribution units typically fall within a 4% to 8% impedance range. Higher percentage values reduce downstream fault currents—lowering the breaking requirements for switchgear—but result in higher internal voltage drops under heavy load conditions.

Energy efficiency standards (such as EU EcoDesign Directive Tier 2 and US DOE 2016) set strict upper limits on no-load losses (P0, core losses) and load losses (Pk, conductor losses). Selecting high-grade grain-oriented silicon steel cores and high-purity copper windings minimizes total losses, keeping operating efficiency above 99% across typical operating ranges.

Acoustic noise is another key parameter for indoor installations. Sound levels are controlled through precision core clamping, rubber anti-vibration pads under the frame, and flexible busbar connectors.

For detailed engineering specifications, dimension tables, and installation clearance requirements across different voltage levels, consult our complete guide to dry type transformers.

3. Key Operational Advantages and Strategic Value

Dry type distribution systems offer distinct technical and economic advantages over liquid-immersed units:

1. Fire Safety and Non-Flammable Operation: Because dry type transformers contain zero flammable oils, they pose no fire or explosion risks. This allows installation inside buildings, high-density industrial plants, and underground locations without costly firewalls or deluge systems.

2. Minimal Maintenance Demands: Without dielectric fluid to sample, filter, or replace, routine upkeep is largely limited to visual inspections, thermal imaging, and cleaning dust from cooling channels.

3. Environmental Compliance: Dry units eliminate fluid leak hazards, removing the need for concrete containment basins and simplifying compliance with environmental regulations.

4. Compact Footprint: Eliminating radiator banks, expansion conservators, and fluid reservoirs yields a compact layout, saving valuable real estate in modular substations and indoor electrical rooms.

Integrating a high-efficiency three phase dry type transformer directly into indoor load centers minimizes low-voltage cable runs. This proximity reduces line losses (I⊃2;R), improves terminal voltage stability, and lowers total installation costs for long cable runs.

4. Practical Installation and Maintenance Guidelines

Thermal Monitoring and Preventative Care: The primary maintenance requirement for dry type transformers is keeping air passages clean and monitoring winding temperatures. Over time, airborne dust and debris can collect inside the vertical cooling channels, restricting airflow and causing internal temperatures to rise.

Maintenance teams should establish a structured preventative program:

• Infrared Thermography Scans: Perform infrared inspections twice a year under normal load. Look for abnormal hot spots at cable connections, busbar joints, and winding surfaces.

• Cooling Channel Cleaning: De-energize the unit annually and clear dust from cooling ducts using dry compressed air (under 2 bar) or an industrial vacuum cleaner. Never use liquid solvents on bare insulation surfaces.

• Connection Torque Checks: Inspect and re-torque frame bolts, core clamps, and cable connections using a calibrated torque wrench. Thermal expansion cycles can loosen mechanical fasteners over time.

• Insulation Diagnostic Testing: Periodically measure insulation resistance using a 2.5 kV or 5 kV insulation tester (Megger). Record and trend resistance values over time to catch insulation degradation before an unexpected outage occurs.

When sourcing solid-cast units for industrial projects, selecting a robust three phase dry type transformer guarantees compliance with global safety standards, long thermal lifespan, and low total cost of ownership.

Conclusion

Dry type transformers have proven to be safe, reliable, and high-performance solutions for modern industrial and commercial power distribution systems. By replacing liquid dielectrics with advanced solid insulation materials, step-lap magnetic cores, and optimized natural air convection, these units eliminate fire hazards, fluid containment challenges, and heavy maintenance burdens.

Whether using Cast Resin Transformers (CRT) for harsh, highly humid conditions or Vacuum Pressure Impregnated (VPI) units for adaptable indoor applications, evaluating electrical specifications—such as insulation thermal class, percentage impedance, and losses—ensures long-term performance. Proper installation, periodic infrared thermal scans, and routine air channel cleaning keep dry type transformers operating cleanly, efficiently, and reliably for decades.

Frequently Asked Questions

What is the main difference between Cast Resin (CRT) and VPI transformers?

Cast Resin Transformers (CRT) feature high-voltage coils completely encapsulated in thick epoxy resin, providing exceptional protection against humidity, dust, and corrosive chemicals. Vacuum Pressure Impregnated (VPI) transformers use a thinner varnish coating applied under vacuum pressure, offering better thermal dissipation, lighter physical weight, and easier on-site repairability.

Can dry type transformers be installed outdoors?

Yes, dry type transformers can be installed outdoors if fitted with an appropriate weatherproof enclosure (typically IP44, IP54, or NEMA 3R/4X rated). The enclosure shields the core and coils from driving rain, snow, blowing dust, and direct sunlight while maintaining adequate internal airflow for cooling.

How often should a dry type transformer be inspected and cleaned?

Routine visual and infrared thermographic inspections should be conducted every six months while the unit is energized. A full de-energized maintenance outage—including vacuuming dust from cooling channels, torque checking connections, and insulation resistance testing—should be performed at least once a year.
