Why Power Distribution Failures Before Equipment Does

Power distribution failures often occur due to environmental exposure, complex site-specific wiring errors, and the degradation of external connection points in traditional open-air setups before the actual transformer core reaches its end-of-life.

Traditional electrical distribution systems are typically "site-built," meaning various components like circuit breakers, busbars, and transformers are sourced separately and assembled on-site. This fragmented approach introduces multiple points of failure. Exposed connections are susceptible to oxidation, wildlife interference, and extreme weather conditions. When these external factors cause a short circuit or a ground fault, the entire distribution network suffers, even if the primary compact transformer components remain functional.

Furthermore, the lack of a controlled environment for sensitive monitoring equipment leads to premature aging of thermal sensors and relays. In many industrial settings, the accumulation of dust and moisture on exposed bushings creates "tracking" paths for electricity, eventually leading to catastrophic flashovers. These failures are not a result of poor transformer quality but rather a result of an unprotected distribution environment.

To mitigate these risks, the industry has shifted toward the compact transformer substation model. By housing all critical components within a single, Type-Tested enclosure, the internal environment remains stable. This shift effectively eliminates the most common external causes of power interruption, ensuring that the distribution system is as robust as the equipment powering it.

What a Compact Substation Transformer Really is

A compact transformer is a complete, modular power distribution unit that houses a medium-voltage switchgear, a distribution transformer, and a low-voltage switchboard within a single, factory-assembled, and tested metal or concrete housing.

At its core, a compact transformer substation (also known as a prefabricated substation) is designed to take high-voltage electricity from a utility or power plant and step it down to a usable level for end-users or machinery. Unlike a standard pole-mounted transformer, this unit is a comprehensive "all-in-one" system. The integration includes sophisticated cooling systems, internal lighting, and high-degree ingress protection (IP) ratings to shield the compact transformer from rain, sand, and pollutants.

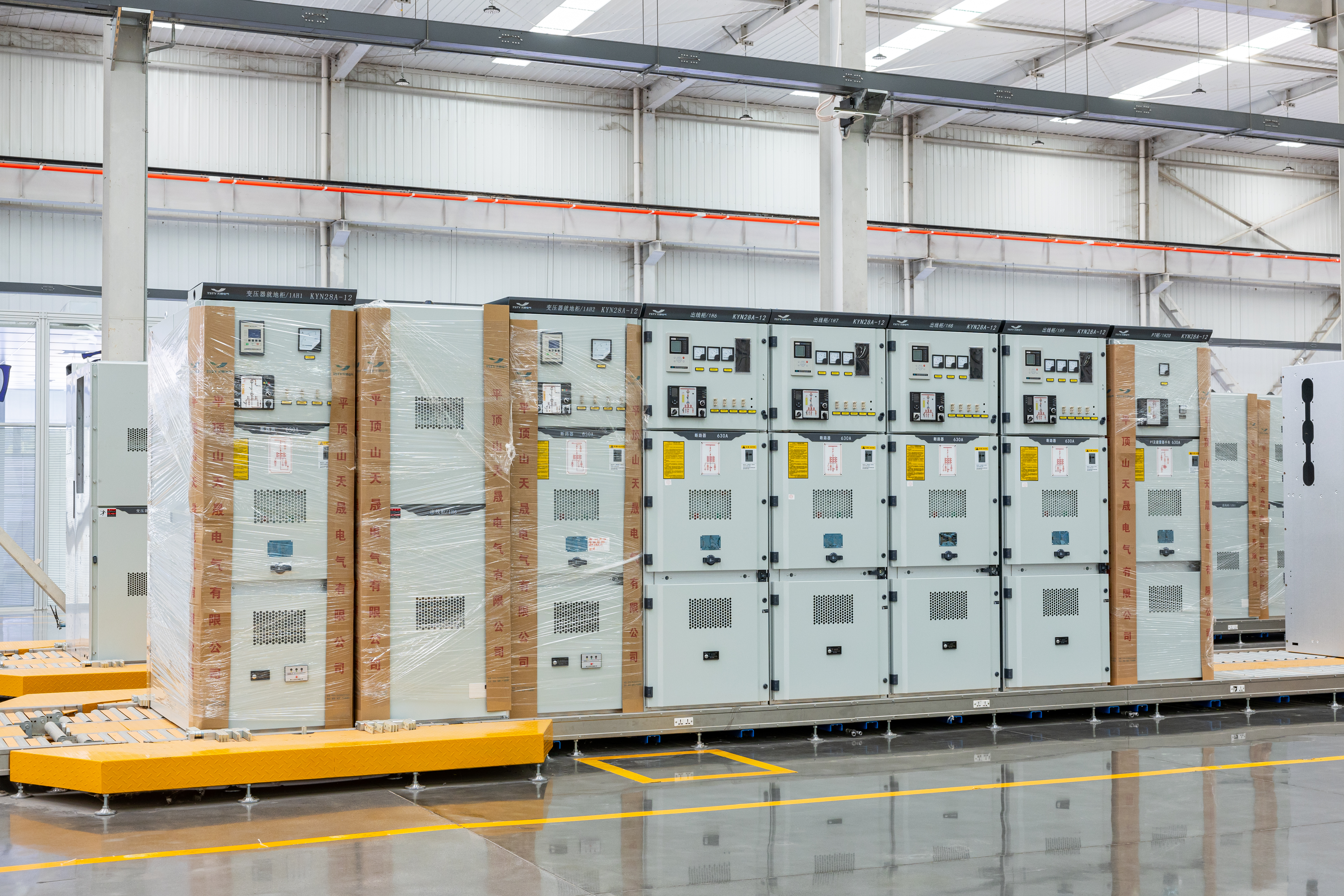

The internal architecture of a compact transformer is typically divided into three distinct compartments:

1. High-Voltage (HV) Compartment: Contains vacuum circuit breakers or load-break switches.

2. Transformer Compartment: Houses the oil-immersed or dry-type compact transformer core and coils.

3. Low-Voltage (LV) Compartment: Features the distribution boards, metering equipment, and automated control systems.

This modularity allows for "Type Testing" according to international standards like IEC 62271-202. Because the entire compact transformer substation is built and tested in a controlled factory environment, site work is limited to preparing a foundation and connecting the incoming/outgoing cables. This significantly reduces the complexity of modern power infrastructure.

How Compact Substation Transformers Improve Safety First

Compact substation transformers improve safety by utilizing "dead-front" designs and internal arc-resistant enclosures that contain electrical explosions and prevent accidental contact with high-voltage energized parts.

Safety is the paramount concern in power distribution, especially in populated areas. In a traditional substation, energized busbars and terminals may be accessible to maintenance personnel or even vandals if fencing is breached. A compact transformer addresses this by ensuring all live parts are fully enclosed within a grounded metal structure. The "dead-front" design means that no live parts are exposed even when the outer doors are opened for routine inspection of the control panels.

Moreover, a high-quality compact transformer substation is designed to withstand an internal arc fault. If a short circuit occurs inside the unit, the resulting pressure and heat are vented through specific pressure-relief flaps in the roof or back, away from where an operator would be standing. This Internal Arc Classification (IAC) is a critical safety feature that protects both the personnel working on the compact transformer and the surrounding public.

Beyond physical containment, these units often include advanced interlock systems. These mechanical and electrical locks prevent the HV compartment from being opened while the compact transformer is energized. Similarly, they prevent the switches from being closed if the grounding system is not properly engaged. This multi-layered safety approach significantly reduces the risk of human error, which is a leading cause of electrical accidents globally.

Key Safety Features of Modular Units

1. IP-Rated Enclosures: Protects against dust and moisture ingress, preventing internal short circuits.

2. Anti-Condensation Heaters: Maintain internal temperatures to prevent moisture buildup on insulators.

3. Emergency Trip Buttons: Allow for immediate shutdown from the exterior of the compact transformer substation.

Compact Substation Transformer and Space Efficiency

The compact transformer substation significantly reduces the required installation footprint by up to 70% compared to traditional site-built substations, making it ideal for dense urban areas and congested industrial sites.

In modern construction, land is an expensive and scarce resource. Traditional substations require significant clear zones between different pieces of equipment to ensure air insulation and maintenance access. A compact transformer utilizes a highly optimized internal layout and specialized insulation materials that allow components to be placed much closer together without the risk of electrical interference.

By consolidating the MV switchgear, the compact transformer, and the LV panels into a single footprint, the need for extensive fencing and civil works is minimized. For a typical 1000kVA distribution point, a traditional setup might require 50 square meters, whereas a compact transformer substation can achieve the same results in less than 15 square meters. This efficiency allows developers to reclaim valuable land for parking, green space, or additional production lines.

The space-saving nature of the compact transformer also extends to the "vertical" dimension. Low-profile designs are available for areas with height restrictions or for aesthetic reasons in residential neighborhoods. Because the unit is prefabricated, the foundation requirements are also simpler, often requiring only a single concrete pad rather than multiple foundations for separate equipment racks.

Why Compact Substation Transformers Improve Reliability

Reliability is improved through factory-controlled assembly, high-quality components, and a sealed environment that prevents the environmental degradation of the compact transformer and its associated control logic.

Reliability in power distribution is measured by the frequency and duration of outages. A compact transformer substation is inherently more reliable because it undergoes rigorous routine testing before leaving the factory. This includes dielectric tests, temperature rise tests, and mechanical operation tests of the switchgear. When components are integrated on-site, it is difficult to achieve the same level of quality control and coordination between the compact transformer and its protection relays.

The hermetically sealed or well-ventilated enclosure of a compact transformer acts as a shield against the elements. In coastal regions, salt-air corrosion can destroy an open-air transformer's cooling fins in a matter of years. In desert environments, sand accumulation can cause overheating. The enclosure of a compact transformer substation uses high-grade coatings (such as C5-M category paint) and specialized filters to ensure that the internal hardware remains in pristine condition, regardless of external weather.

Furthermore, the integration of digital monitoring in modern compact transformer units allows for "Predictive Maintenance." Sensors track the temperature of the oil, the vibration of the core, and the health of the insulation. This data can be transmitted to a central control room via SCADA systems, allowing operators to identify a potential issue before it leads to a failure. This proactive approach ensures a steady, uninterrupted flow of power to critical infrastructure.

Factors Contributing to High Reliability

• Type-Tested Coordination: Guaranteed compatibility between the compact transformer and the breakers.

• Corrosion Resistance: High-quality galvanized steel or stainless steel enclosures for harsh environments.

• Stable Thermal Management: Intelligent ventilation louvers and fans to maintain optimal compact transformer temperatures.

Where Compact Substation Transformers Are Actually Used

Compact transformer substations are utilized across a vast range of sectors including renewable energy plants, mining operations, high-rise residential developments, and heavy manufacturing facilities where space and safety are critical.

The versatility of the compact transformer makes it the go-to choice for diverse geographic and industrial applications. In the renewable energy sector, specifically for solar and wind farms, compact transformer substation units are used to step up the low-voltage power generated by inverters to a medium-voltage level for grid connection. Their ability to be easily transported to remote, rugged locations is a major advantage for these projects.

In the mining and oil and gas industries, the compact transformer must be rugged enough to handle vibrations, dust, and potentially explosive atmospheres. Specialized "skid-mounted" versions of the compact transformer substation allow the equipment to be moved as the mining face progresses. This portability ensures that high-voltage power is always available close to the heavy machinery, reducing the voltage drop associated with long low-voltage cable runs.

Primary Application Environments

1. Public Infrastructure: Powering hospitals, airports, and subway stations where reliability is life-critical.

2. Real Estate Development: Providing hidden or aesthetically pleasing power distribution for shopping malls and luxury housing.

3. Industrial Parks: Delivering high-capacity power to manufacturing lines, such as chemical processing or food and beverage production.

4. Temporary Sites: Serving as a mobile power source for large-scale construction projects or disaster relief efforts.

What Engineers and Operators Should Consider Before Selection

Engineers must evaluate the rated capacity (kVA), primary and secondary voltage requirements, cooling method (ONAN vs. ONAF), and the specific environmental conditions (altitude, humidity) before selecting a compact transformer.

Choosing the right compact transformer substation requires a deep dive into the specific electrical load of the facility. The capacity, measured in kVA, must not only meet the current peak demand but also allow for a margin of future growth. If a compact transformer is consistently run at 100% capacity, its lifespan will be shortened due to thermal stress. Therefore, sizing the unit correctly is the first step in ensuring long-term performance.

The environment plays a massive role in selection. For example, at high altitudes, the air is thinner, which reduces its dielectric strength and cooling efficiency. A compact transformer destined for a mountain-side mining operation must be "derated" or designed with larger clearances. Similarly, units intended for tropical climates require enhanced moisture protection and more aggressive cooling strategies to prevent the compact transformer substation from overheating.

Finally, the choice between oil-immersed and dry-type transformers within the unit is crucial. Oil-filled compact transformer units are generally more cost-effective and have better cooling properties but require oil containment pits to prevent environmental contamination. Dry-type units are preferred for indoor installations or areas with strict fire safety regulations, as they eliminate the risk of oil-fueled fires.

Conclusion

In conclusion, the compact transformer is the backbone of modern, efficient, and safe power distribution, offering unparalleled space savings and reliability for B2B industrial and commercial applications.

As global energy transition continues, the demand for smarter, smaller, and safer distribution solutions will only grow. The compact transformer substation provides a future-proof answer to these challenges by combining advanced engineering with practical, modular design. By reducing the complexity of on-site assembly and protecting sensitive components from environmental wear, the compact transformer ensures that power reaches its destination with minimal loss and maximum safety.

For enterprises looking to upgrade their infrastructure or develop new sites, investing in a high-quality compact transformer substation is a strategic decision that pays off in reduced maintenance costs, smaller land requirements, and enhanced operational uptime. Whether it is for a solar farm in the desert or a data center in a bustling city, the compact transformer remains the most effective tool for modern power management.

By prioritizing safety, efficiency, and reliability, the compact transformer does more than just move electricity—it empowers the growth of industries and communities worldwide. As technology advances, we can expect these units to become even more integrated, featuring higher efficiency cores and advanced digital twins for real-time global monitoring.
