Compact Substations: The Go-To Solution for Rapid Urbanization and Space-Constrained Projects

What Is a Compact Substation?

A compact transformer substation, often referred to as a prefabricated substation or package substation, is a type of electrical equipment that houses all necessary power distribution components within a durable, secure, and often aesthetically pleasing metallic or concrete housing.

At its core, a compact transformer unit is an all-in-one powerhouse. Unlike traditional substations that require extensive on-site civil engineering, mounting of separate components, and complex inter-wiring, these units are engineered as a cohesive system. They are designed to step down medium voltage (typically ranging from 11kV to 33kV) to low voltage (400V to 440V) for direct use by consumers or industrial machinery. Because they are factory-assembled, they undergo rigorous quality control and testing before they ever reach the installation site.

The physical design of a compact transformer substation is centered around three distinct compartments: the high-voltage (HV) room, the transformer room, and the low-voltage (LV) room. These compartments are separated by fire-resistant partitions to ensure safety and prevent fault propagation. The enclosure itself is built to withstand extreme environmental conditions, ranging from heavy coastal salt spray to intense desert heat, ensuring that the sensitive internal electronics remain protected.

In the context of the modern grid, these units serve as localized nodes of energy management. They can be equipped with advanced monitoring systems and smart sensors that allow utility companies to track load performance in real-time. This digital integration transforms a simple hardware enclosure into a vital data point within a Smart Grid, allowing for predictive maintenance and automated fault isolation that reduces downtime for the end-user.

Why Compact Substations are Sensible Today

The adoption of the compact transformer substation is driven by the urgent need for space optimization, reduced capital expenditure (CAPEX), and the rapid deployment requirements of modern infrastructure projects.

1. Superior Space Optimization

The primary driver for choosing a compact transformer over a traditional setup is the footprint. In high-density urban areas like London, New York, or Shanghai, land value is at a premium. A compact transformer substation can occupy up to 70% less space than a conventional open-air substation. This allows developers to integrate power infrastructure into parking lots, rooftop spaces, or small sidewalk strips, freeing up valuable land for commercial or residential use.

2. Accelerated Installation Timelines

Traditional substation construction can take months, involving multiple contractors and extensive on-site wiring. In contrast, a compact transformer substation is a "plug-and-play" solution. Since the unit is prefabricated and pre-tested at the factory, the on-site work is limited to preparing a simple concrete foundation and connecting the incoming and outgoing cables. This can reduce project timelines by weeks or even months, which is critical for meeting the deadlines of rapid urbanization projects.

3. Lower Total Cost of Ownership

While the initial purchase price of a high-quality compact transformer may be comparable to individual components, the total project cost is significantly lower. Savings are realized through reduced land acquisition costs, lower labor costs for installation, and minimal civil engineering requirements. Furthermore, because the components are protected within a controlled enclosure, they are less prone to environmental degradation, leading to lower long-term maintenance expenses.

4. Enhanced Public Safety and Aesthetics

Public safety is a major concern in residential areas. A compact transformer substation features a fully enclosed design that eliminates the risk of accidental contact with live high-voltage parts. Additionally, the enclosures can be customized with various finishes—such as wood grain, brick patterns, or neutral colors—to blend seamlessly into the surrounding environment, reducing "not-in-my-backyard" (NIMBY) resistance from local communities.

Key Components & Their Roles

The internal architecture of a compact transformer substation is a masterclass in electrical engineering, housing a High-Voltage (HV) Switchgear, a Power Transformer, and a Low-Voltage (LV) Distribution Panel within a thermally managed enclosure.

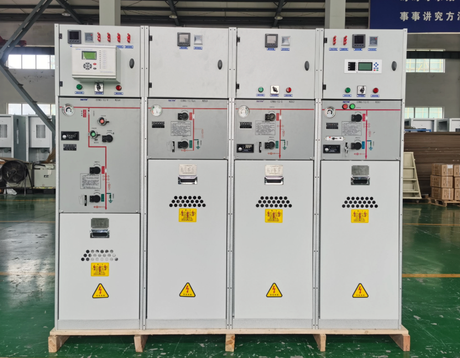

The High-Voltage Switchgear acts as the entry point and the primary defense mechanism of the unit. It typically utilizes Ring Main Units (RMU) which are compact and gas-insulated (SF6) or air-insulated. These switches allow for the safe disconnection of the substation from the grid during maintenance or in the event of a fault. Without a reliable HV compartment, the compact transformer would be vulnerable to upstream surges, making this component essential for network stability and personnel safety.

At the heart of the system is the compact transformer itself. This component is responsible for the actual conversion of voltage. Depending on the application requirements, these can be oil-immersed transformers for superior cooling or dry-type transformers for indoor or fire-sensitive environments. The transformer is often equipped with high-efficiency cores to minimize energy loss, ensuring that the compact transformer substation operates at peak performance even under heavy load conditions.

The Low-Voltage (LV) Distribution Panel is the final stage where the power is organized and distributed to individual circuits. This section contains circuit breakers, busbars, and metering equipment. Advanced LV panels in a compact transformer substation include Smart Meters and communication modules that support Remote Terminal Units (RTU). This enables remote monitoring of power consumption, voltage drops, and harmonic distortions, providing the utility provider with the visibility needed to manage a complex urban load profile.

Finally, the Enclosure and Cooling System must not be overlooked. The housing is typically made of galvanized steel or glass-reinforced polyester (GRP). To prevent the compact transformer from overheating, the enclosure is designed with natural ventilation louvers or forced-air cooling fans controlled by thermostats. This ensures the internal temperature remains within the optimal range for the longevity of the insulation materials and electronic relays.

Use Cases: Where Compact Substations Shine

A compact transformer substation is versatile enough to serve as the primary power node for a wide variety of sectors, ranging from heavy industrial manufacturing to modern residential high-rises and renewable energy farms.

1. High-Density Residential and Commercial Complexes

In modern "vertical cities," providing reliable power to skyscrapers and large apartment blocks is a challenge. A compact transformer substation can be placed in basement levels or dedicated equipment floors. Because a compact transformer can be built with fire-extinguishing dry-type technology, it meets the stringent safety codes required for indoor installations, ensuring that thousands of residents have stable electricity without the need for an unsightly external power yard.

2. Industrial Parks and Manufacturing Facilities

Industrial operations require massive amounts of power and have zero tolerance for downtime. A compact transformer substation provides a dedicated, localized power source that can be installed directly adjacent to the production line. This proximity reduces voltage drop across long cable runs. For industries like chemical processing or automotive assembly, the compact transformer unit's ability to handle high-surge loads while being protected from factory dust and debris is a significant operational advantage.

3. Renewable Energy Integration (Solar and Wind)

Solar and wind farms are often located in remote or harsh environments. The prefabricated nature of the compact transformer substation makes it ideal for these sites. A compact transformer can be shipped directly to a solar field, connected to the inverters, and begin feeding power into the grid immediately. The durability of the enclosure ensures that even in high-salinity coastal wind farms or dusty desert solar arrays, the power conversion process remains uninterrupted.

4. Infrastructure and Public Works

From subway systems and airports to tunnel lighting and water treatment plants, public infrastructure relies on consistent power. A compact transformer substation is frequently used in these projects because it can be tucked away in small corners of the infrastructure footprint. For example, in a metropolitan railway project, a compact transformer might be installed every few kilometers to power signaling systems and station facilities, providing a modular and scalable approach to transit power.

5. Temporary Sites and Disaster Recovery

Because they are self-contained and portable, these units are often used for temporary mining sites, large-scale construction projects, or emergency power restoration after a natural disaster. A compact transformer substation can be loaded onto a flatbed truck, deployed to a site, and energized in a fraction of the time it would take to build a permanent structure, making it a critical tool for humanitarian and industrial emergency response.

Challenges & Considerations

While the compact transformer substation offers numerous advantages, successful implementation requires careful consideration of thermal management, accessibility for maintenance, and long-term environmental protection.

• Thermal Management and Heat Dissipation: Because a compact transformer is housed in a confined space, heat buildup is an inherent risk. If the cooling system (natural or forced) is not correctly calculated for the local climate, the transformer's lifespan can be significantly reduced. Engineers must ensure that the compact transformer substation has adequate airflow and that the materials used for the enclosure do not contribute to a "greenhouse effect" inside the unit.

• Maintenance Access Constraints: The very "compactness" that makes these units attractive can make maintenance difficult. Technicians require enough space to safely access the HV and LV compartments for testing and repairs. When selecting a compact transformer, it is vital to choose a design with wide-opening doors and modular components that can be easily reached or replaced without dismantling the entire enclosure.

• Corrosion and Environmental Sealing: For units installed in coastal or industrial areas, chemical and salt corrosion are major threats. The integrity of the compact transformer substation depends on its coating and sealing. Low-quality enclosures may suffer from rusted hinges or compromised seals, leading to moisture ingress that can cause catastrophic short circuits. Utilizing stainless steel or high-grade galvanized materials is a necessary investment for durability.

• Future Scalability: Urban power demands rarely stay static. When installing a compact transformer, one must consider if the current unit can handle future load growth. While some compact transformer substation designs are modular and allow for component upgrades, others are fixed. Selecting a unit with some "headroom" in its power rating or choosing a modular design is essential for long-term urban planning.

• Protection and Coordination: The internal protection relays must be perfectly coordinated with the upstream and downstream grid. In a compact transformer, the proximity of components means that a fault in one section must be isolated instantly to prevent damage to the others. Sophisticated digital protection relays are a must-have feature for any modern compact transformer substation to ensure total system reliability.

Conclusion

The compact transformer substation has evolved from a niche alternative to a global standard for power distribution. By consolidating complex electrical infrastructure into a single, high-performance, and space-efficient unit, the compact transformer addresses the most pressing challenges of modern urbanization. Whether it is reducing the physical footprint of a city's power grid, accelerating the deployment of renewable energy, or providing a safe and aesthetically pleasing power solution for residential neighborhoods, the benefits are undeniable.

As we move toward an increasingly electrified future—driven by electric vehicles and smart city technologies—the demand for localized, intelligent power nodes will only grow. The compact transformer substation stands as the ideal solution to meet this demand, offering a perfect balance of engineering precision, economic viability, and operational resilience. For developers and utility providers alike, investing in high-quality compact transformer technology is not just a matter of saving space; it is a strategic move toward a more efficient and reliable global energy network.

By prioritizing the use of a compact transformer substation, project managers can ensure that their electrical infrastructure is ready for the challenges of tomorrow, providing a "hidden" yet powerful foundation for the growth of modern society.
