Modern power grids demand massive scalability to support high-load networks. Integrating renewable energy sources introduces unprecedented volatility. Engineers and procurement teams face a significant challenge daily. They must balance steep capital expenditures against the need for ironclad reliability. Alternative technologies like dry-type units certainly exist. However, they cannot match the baseline performance of liquid-cooled systems. Heavy-duty, outdoor, and high-voltage applications demand superior thermal management. Thermal stress easily compromises lesser equipment under peak loads.

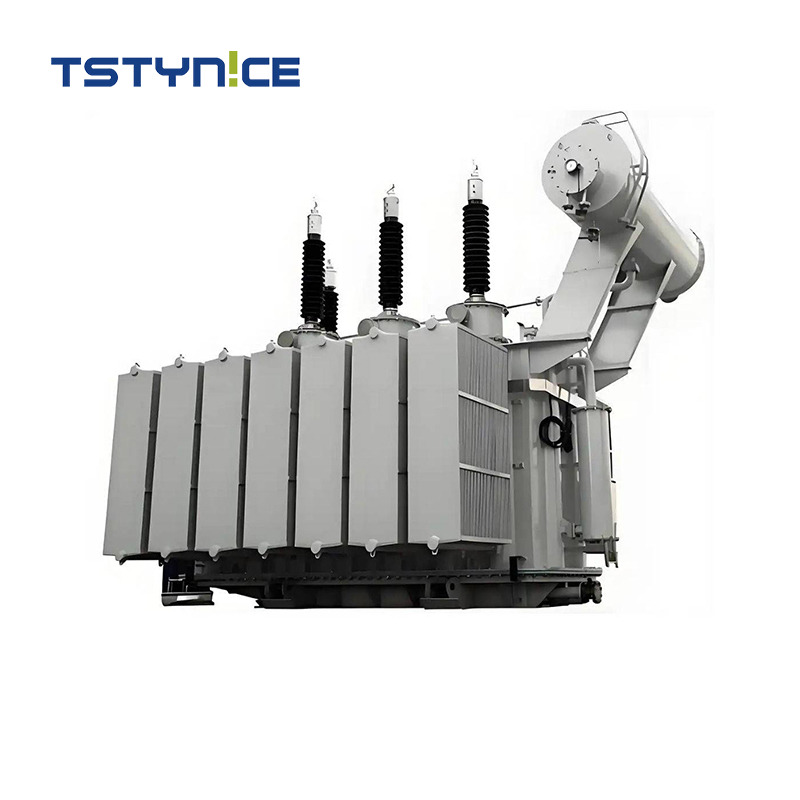

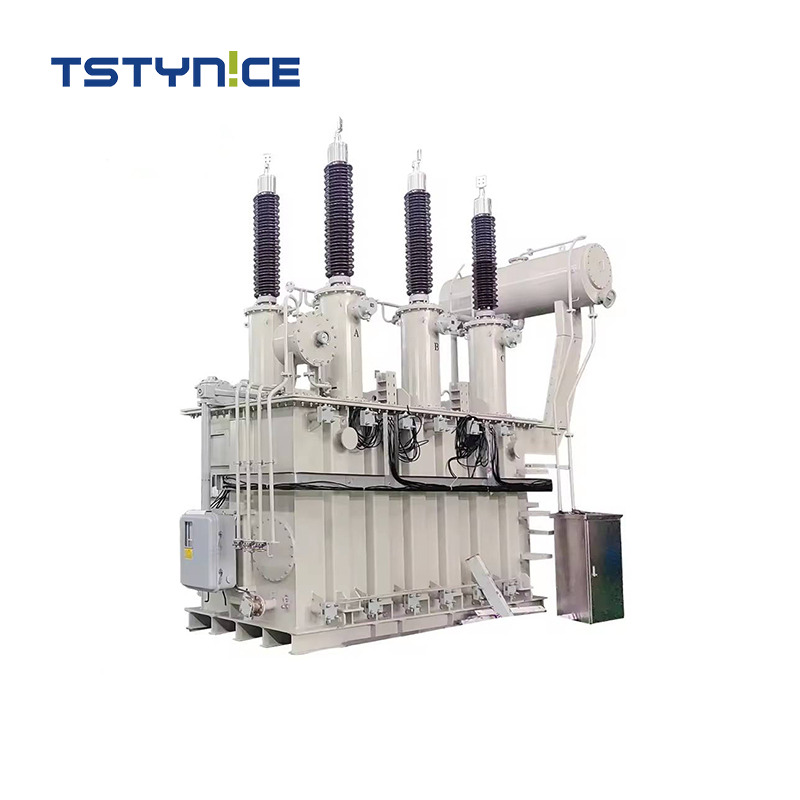

This article provides a realistic, engineering-grounded framework. We will explore how to evaluate, specify, and deploy an Oil-Immersed Power Transformer in modern infrastructure. You will learn about fluid selection, spatial requirements, thermal limits, and critical testing protocols. Our primary goal is to equip you with actionable technical insights. You can use this knowledge to secure grid stability during your next major infrastructure upgrade.
Thermal Efficiency vs. Footprint: Oil-immersed units offer superior heat dissipation for high-load networks but require specific site preparation for containment.
Total Cost of Ownership (TCO): Typically presents a lower initial CapEx than dry-type alternatives, though OpEx must account for fluid sampling and maintenance.
Compliance & Safety: Selecting the right insulating fluid (mineral vs. ester) is critical for meeting regional fire codes and ESG mandates.
Project Suitability: Ideal for outdoor substations, utility grids, and renewable (solar PV/wind) integration where robust environmental shielding is non-negotiable.
Modern utility grids face unprecedented load volatility today. Electric vehicle (EV) charging infrastructure draws massive, unpredictable current spikes. Variable renewable inputs complicate this further. Solar PV arrays generate peak power at noon. Output drops sharply during cloud cover or twilight hours. This erratic generation profile creates severe frequency and voltage fluctuations. Grid operators struggle constantly to maintain stable delivery. Infrastructure must adapt dynamically to survive.
These constant load fluctuations cause severe thermal cycling internally. Copper windings heat up rapidly during peak draw. Materials expand and contract repeatedly throughout the day. This mechanical movement stresses internal insulation layers. Solid insulating paper degrades quickly under sustained high temperatures. The degree of polymerization drops heavily. Once the paper becomes brittle, the risk of a short circuit skyrockets.
High-capacity systems absolute require liquid cooling mediums. You cannot rely on ambient air to cool massive utility substations. Oil directly absorbs heat from the magnetic core. It flows naturally or via pumps through external radiator fins. This process dissipates thermal energy safely into the atmosphere. Liquid cooling prevents catastrophic insulation failure entirely. It ensures grid stability over a demanding 30-year lifecycle. Without it, high-voltage networks simply collapse under modern loads.
Procurement teams generally favor liquid-cooled designs for large projects. They present a notably lower upfront procurement cost. Cast-resin alternatives cost significantly more at equivalent kVA ratings. Manufacturing massive dry-type coils requires expensive vacuum casting processes. However, you must carefully calculate mandatory operational expenses. Routine Dissolved Gas Analysis (DGA) is strictly non-negotiable. Oil filtration becomes necessary as moisture accumulates over time. Eventually, operators face fluid reclamation or complete replacement costs. Planners must balance these ongoing service expenses against the initial capital savings.
Liquid insulation possesses exceptional heat dissipation properties. Mineral oil penetrates deep into the winding assemblies. It captures localized hot spots immediately. The fluid circulates using ONAN (Oil Natural Air Natural) or ONAF (Oil Natural Air Forced) mechanisms. Fans activate during heavy loads to accelerate heat rejection. This design translates directly to better handling of temporary peak overloads.
During extreme summer demand, air-conditioning loads spike drastically. The equipment can sustain these higher currents safely. The cooling medium protects the core and windings from thermal degradation. Engineers actively rely on this thermal buffer. It prevents rolling blackouts during critical high-demand windows. An Oil-Immersed Power Transformer provides the heavy-duty resilience needed here.
Modern units utilize fully hermetically sealed architectures. Many designs eliminate the traditional conservator tank entirely. This architecture strictly prevents moisture and dust ingress. Atmospheric contaminants cannot ruin the dielectric strength of the internal fluids. Oxygen never touches the insulating oil. This halts rapid fluid oxidation.
We observe massive performance advantages in extreme outdoor climates. Coastal regions generate highly corrosive salt fog. High-humidity environments routinely destroy exposed electrical contacts. Neither element can penetrate a sealed welded tank. These systems thrive in severe temperature ranges. Freezing winters and blistering desert summers pose minimal threat. They deliver uncompromised reliability where ventilated dry-type designs quickly fail.
Naphthenic mineral oil remains the undisputed global industry standard. It proves highly cost-effective for massive utility deployments. Decades of historical operational data back its reliability. Technicians know exactly how it behaves under dielectric stress. It offers excellent low-temperature fluidity.
However, it carries specific inherent risks. Mineral oil has a relatively low flash point around 140°C. Poor biodegradability raises serious environmental contamination concerns. You must build strict secondary containment systems. Concrete bunding around the pad is legally required. Soil remediation after a severe spill demands millions of dollars. Planners must weigh these environmental risks carefully.
Strict environmental regulations drive a strong business case for esters. Modern corporations prioritize heavy ESG goals today. Ester fluids offer a dramatically higher fire point. Regulators routinely classify them as "K-class" fluids exceeding 300°C. This naturally mitigates the need for extensive fire suppression systems. You can install them closer to buildings safely.
Esters are highly biodegradable and environmentally friendly. Soil microbes consume spilled ester fluid rapidly. However, they introduce notable engineering trade-offs. You will pay a substantially higher upfront fluid cost. They also display different viscosity characteristics. Cold-weather starts require careful engineering adjustments. Sluggish fluid flow at sub-zero temperatures reduces initial cooling efficiency.
The following chart summarizes the operational differences between standard fluid options.
Feature | Naphthenic Mineral Oil | Natural/Synthetic Esters |
|---|---|---|
Flash Point | Approx. 140°C (O-class) | > 300°C (K-class) |
Biodegradability | Very Low | Highly Biodegradable |
Cold Temp Flow | Excellent | Viscous (Requires engineering) |
Fire Suppression Needs | Extensive (Blast walls/Deluge) | Minimal (Clearances reduced) |
Upfront Cost | Baseline / Low | Premium / High |
Civil engineering prerequisites demand careful, early attention. You must construct robust reinforced concrete pads. These pads support massive operational weights safely. Soil settling can warp the tank and cause leaks. Planners must design effective oil catch basins beneath the unit.
Secondary containment volumes are strictly mandated by environmental agencies. These barriers prevent soil and groundwater contamination during catastrophic tank ruptures. The containment area must hold 110% of the entire fluid volume. You must also account for historical rainwater accumulation. Proper drainage systems must separate rainwater from trace oil effectively.
Consider these critical site preparation steps:
Conduct deep soil load-bearing analysis.
Pour reinforced concrete plinths matching footprint specs.
Excavate and seal the secondary containment basin.
Install an oil-water separator system for drainage.
Establish heavy-duty access roads for delivery cranes.
Engineers must enforce specific spatial separation distances. These distances prevent a localized fire from destroying adjacent critical structures. Substation layouts follow strict IEEE 979 guidelines. If urban space is excessively tight, you must install concrete blast walls. Radiant heat damages nearby equipment rapidly.
The chosen fluid type directly dictates these clearances. Mineral oil requires massive safety buffers. A rupture creates intense, widespread fireballs. K-class esters allow significantly closer installations. Upgrading to esters often saves thousands in land acquisition and blast wall construction. Always consult local fire marshals early.
We strongly advise against "install and forget" mentalities. A massive Oil-Immersed Power Transformer requires active, intelligent lifecycle management. Specify requirements for smart monitoring sensors immediately. You must track internal temperature, pressure, and gas buildup in real time.
Install Buchholz relays on units utilizing conservator tanks. These relays detect dangerous gas accumulation from minor arcing. Specify sudden pressure relays for hermetically sealed designs. Ensure the final design includes easily accessible drain valves. Technicians need these valves for safe, routine oil sampling. Early sensor detection prevents massive, highly public grid outages.
Start your specification by aligning capacity with your actual load profiles. Analyze both current usage and 15-year forecasted growth. Do not oversize excessively, as this wastes capital. You must evaluate No-Load (Core) versus Load (Winding) losses thoroughly. This calculation determines true long-term operational efficiency.
Do not simply buy the cheapest base unit available. High core losses drain money silently every single hour. Capitalize these losses over thirty years. A cheaper unit often costs significantly more in wasted electricity. Specify exact impedance values to coordinate with existing grid fault levels safely.
Assess manufacturer track records very carefully. Look for proven success in your specific application type. A steady utility-scale unit differs vastly from a solar PV step-up application. Solar units face harsh daily thermal cycling and reverse power flows. Wind farm units endure severe harmonic distortion.
Verify all testing certifications rigorously. Demand strict compliance with IEEE C57, IEC 60076, or ANSI standards. Inspect their factory quality control processes. Only partner with fabricators using premium electrical steel. Check their winding practices and vacuum drying procedures. Substandard drying leaves trace moisture, destroying lifespan.
Rigorous Factory Acceptance Testing protects your massive investment. Never accept delivery without observing these tests directly or via third-party inspectors. Demand comprehensive temperature rise tests at full load. Verify insulation integrity through applied and induced voltage dielectric tests.
Execute strict impulse tests to simulate devastating lightning strikes. Measure load and no-load losses precisely to verify guaranteed efficiencies. Catching a manufacturing defect at the factory saves millions in emergency field replacement costs. Refuse shipment if DGA samples show any gas generation during testing.
An oil-immersed unit acts as a foundational, multi-decade infrastructure asset. It requires perfect alignment between upfront engineering and long-term field realities. Heavy-duty networks depend entirely on reliable liquid cooling to survive modern peak loads. Dry-type units simply cannot handle massive utility-scale stresses.
Procurement and engineering teams must weigh insulating fluid types carefully. Calculate environmental containment construction costs alongside the baseline hardware pricing. Prioritize rigorous FAT procedures and smart sensor integration from day one. Do not ignore the mandatory civil site preparation expenses.
We encourage readers to consult with experienced applications engineers early in the planning phase. Submit your technical specifications for an objective lifecycle evaluation. Make data-driven procurement decisions to secure your grid for the next thirty years.
A: Engineers typically favor liquid-cooled designs for any application exceeding 2.5 MVA. They absolutely dominate strictly outdoor applications. Liquid insulation offers vastly superior cooling efficiency at these high capacities. Dry-type units become prohibitively expensive, massive in footprint, and thermally limited at utility scales.
A: The standard industry lifespan spans 25 to 30 years or more. However, this longevity remains strictly conditional. You must adhere perfectly to preventative maintenance schedules. Annual dissolved gas testing, moisture monitoring, and periodic oil filtration are absolutely mandatory to reach this lifecycle.
A: We recommend an annual baseline for Dissolved Gas Analysis (DGA) and dielectric breakdown testing. As the unit ages past 15 years, increase testing frequency to bi-annually. Proactive fluid sampling prevents catastrophic internal arcing and avoids highly disruptive emergency outages.
A: They face heavy regulatory restrictions indoors. You can install them inside using high-fire-point ester fluids alongside strict blast vault designs. However, dry-type units generally remain the standard for indoor commercial use due to zero fluid leakage risks and simpler fire code compliance.
