Thermal degradation acts as the primary limiting factor for transformer longevity. Every 8°C rise above specified operating limits effectively halves the life of internal insulation. This inescapable engineering reality makes heat management a critical priority for any electrical facility. Unmanaged thermal loads inevitably lead to catastrophic system failures and massive downtime. This guide provides a thorough technical and commercial evaluation of modern cooling methodologies. We aim to help facility planners and electrical engineers align their thermal strategies with site-specific compliance, risk tolerances, and return on investment thresholds.
You will learn how the industry is pivoting away from legacy liquid-immersed systems toward modern dry-type alternatives. Specifically, we will highlight the operational context and long-term advantages of the Air-cooled transformer. Understanding these strategic shifts ensures you can design safer, more efficient power distribution networks that meet strict modern building codes.
Thermal-to-Lifespan Correlation: Effective cooling methodologies directly dictate lifetime operational expenses by mitigating insulation breakdown and preventing catastrophic failure.
Categorical Divide: Solutions broadly split into liquid-immersed (ONAN, ONAF) for high-capacity outdoor scaling, and dry-type (air-cooled transformer) systems for indoor, environmentally sensitive, or fire-restricted zones.
Evaluation Criteria: Procurement decisions must weigh upfront capacity requirements against long-term maintenance overhead, environmental compliance (spill containment), and spatial footprint.
Risk Mitigation: Transitioning to an air-cooled transformer eliminates fluid leak risks and complex fire-suppression requirements, though it demands rigorous ambient ventilation planning.
Every electrical system faces the severe financial and operational stakes of thermal limits. Excess heat severely reduces overall system efficiency. It actively drives up internal copper losses due to increased electrical resistance. It also exacerbates core losses related to magnetic hysteresis. Furthermore, unmanaged internal temperatures rapidly accelerate the dielectric breakdown of critical insulation materials. Once insulation degrades, short circuits and explosive failures follow.
A viable cooling strategy becomes a non-negotiable success criterion for facility managers. You must maintain internal temperatures below the specific insulation class threshold during peak load cycles. For instance, Class H systems must stay strictly under 180°C. Doing so prevents permanent hardware damage without disproportionately increasing your daily maintenance labor.
Cooling choices also dictate heavy compliance burdens. Local environmental regulations and EPA guidelines strictly govern liquid-filled systems. Under these rules, any facility housing bulk oil-filled equipment must implement strict Spill Prevention, Control, and Countermeasure (SPCC) plans. Oil-filled units demand expensive secondary containment measures like large concrete spill berms. In stark contrast, dry-type systems offer a minimal environmental footprint. They free you from complex containment planning and drastically reduce ongoing legal liability.
Electrical engineers broadly categorize cooling methods into two primary architectures. They separate them based entirely on the thermal medium used to extract heat from the active core.

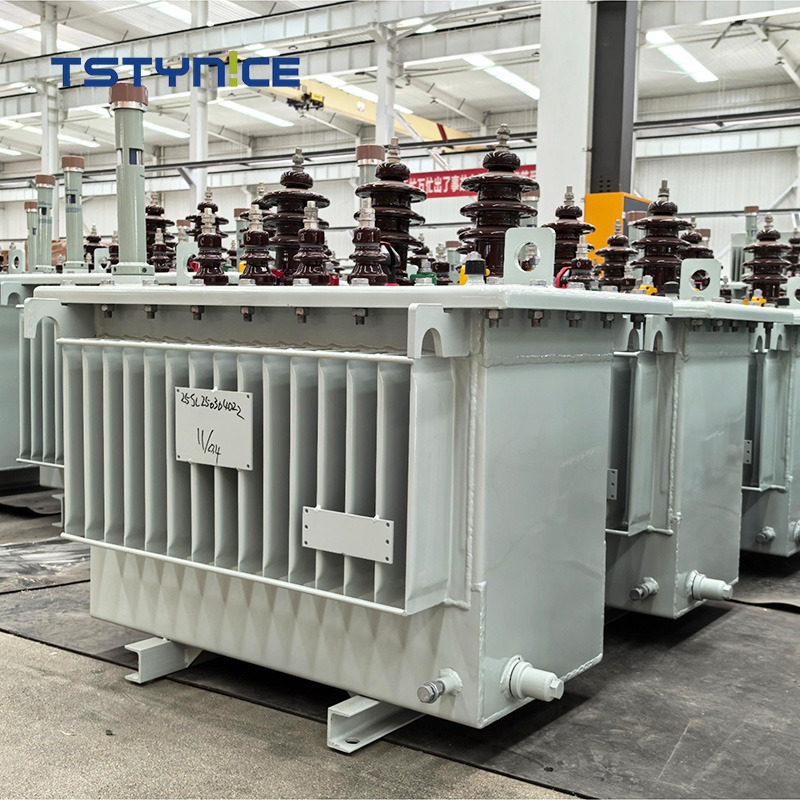

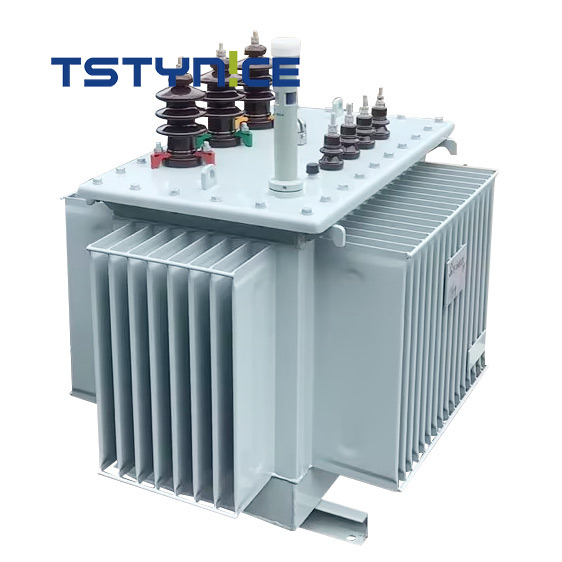

Fluid-based, or oil-immersed, systems remain an industry standard for massive installations. ONAN (Oil Natural Air Natural) and ONAF (Oil Natural Air Forced) represent the baseline models. They dominate utility-scale, high-voltage applications. Mineral insulating oils possess a remarkably high specific heat capacity. They absorb and move massive thermal loads effectively across sprawling outdoor substations. This makes them ideal for grid-level infrastructure where space allows for large cooling radiators.
Dry-type systems rely entirely on ambient air for thermal regulation. The standard baseline is AN (Air Natural). It relies purely on standard convective airflow moving from the bottom to the top of the unit. The active upgrade is AF (Air Forced). This configuration utilizes thermostatically controlled fans. They forcefully push ambient air across the internal cores. This temporary boost increases output capacity up to 33% beyond the base rating during peak electrical demands.
Emerging alternatives continue to push engineering boundaries. Researchers now deploy biodegradable ester fluids and advanced cast-resin designs. These niche industry developments aim to bridge the persistent gap between high-voltage utility capacity and strict environmental safety.
An Air-cooled transformer operates on highly reliable, straightforward thermodynamic principles. It dissipates internal heat through precisely engineered ventilation louvers. Natural or forced circulation moves ambient air directly across exposed coils or solid cast-resin blocks. This continuous airflow safely strips heat away from critical internal components without relying on hazardous liquids.
These dry-type units excel in specific operational environments. They are the premier choice for indoor and commercial facilities. Hospitals, commercial high-rises, and confined underground transit vaults rely heavily on them. In these enclosed spaces, the extreme fire risk associated with flammable insulating liquids remains completely unacceptable. Data centers also deploy them directly next to server racks without violating strict fire safety codes.
Environmentally sensitive areas also demand this safe technology. Renewable energy installations, offshore drilling platforms, and municipal water-treatment plants cannot risk oil leaks. Such fluid spills pose catastrophic environmental damage and trigger massive regulatory penalties.
However, we must transparently acknowledge their engineering limitations. Air-cooled units typically require a larger physical footprint per kVA compared to their compact oil-filled counterparts. They are also generally restricted to lower voltage classes. You will typically see them deployed in commercial distribution systems operating up to 36kV.
Evaluating these systems requires a balanced look at capital deployment, safety compliance, and physical spatial planning.
Air-cooled units frequently carry a higher initial capital expenditure. The specialized cast-resin and precision manufacturing processes drive up these upfront costs. Copper and aluminum windings must be encapsulated perfectly in epoxy under vacuum conditions. However, you must evaluate this against lifelong operational expenses. Dry-type units drastically reduce your long-term OpEx. They completely eliminate the need for routine oil sampling. You avoid hiring costly fluid filtration services. Furthermore, you never have to maintain, inspect, or repair the concrete containment vessels required for liquid systems.
Modern cast-resin units feature an inherently fire-retardant nature. They self-extinguish and actively resist ignition even under severe electrical faults. We must compare this favorable profile against the severe flashpoint risks associated with conventional mineral oils. Eliminating liquid cooling maps directly to better business outcomes. You benefit from significantly lower property insurance premiums. You also avoid building massive, costly structural fire-walls around your equipment.
Spatial planning often dictates your final equipment choice. Oil-filled units demand extensive clearance for bulky external radiators. They also require wide footprints for mandatory concrete spill berms. Conversely, dry-type units only demand specific ambient clearance distances. You must provide enough room around the enclosure to ensure unhindered convective air pathways.
Feature / Requirement | Liquid-Immersed (ONAN/ONAF) | Air-Cooled (AN/AF) |
|---|---|---|
Cooling Medium | Mineral oil or synthetic ester fluid | Ambient air (Natural or Forced) |
Fire Risk | High (requires active suppression) | Minimal (self-extinguishing resin) |
Maintenance Burden | High (sampling, filtering, berm inspections) | Low (visual inspection, routine dusting) |
Voltage Limit | Extra-high voltage capable (Grid level) | Generally limited to 36kV (Distribution) |
Environmental Risk | High (severe spill/leak potential) | Zero liquid leak risk |
Deploying any ventilation-dependent cooling system introduces unique physical and environmental challenges. You must proactively address these factors to maintain long-term reliability.
For these units to function at their nameplate capacity, they depend entirely on ambient temperature baselines. Facility HVAC systems or natural ventilation louvers must reliably manage the room's climate. Engineers typically calculate these maximum ambient baselines at 30°C to 40°C. If ambient heat exceeds this critical range, the unit cannot shed its internal thermal load effectively, leading to rapid insulation degradation.
Contamination factors also constantly threaten exposed systems. Industrial dust, severe ambient moisture, and corrosive chemical vapors can rapidly degrade exposed coils. You must prioritize proper physical protection. Outline your specific environmental risks early. Then, select the correct NEMA or IP enclosure rating. For instance, a dusty mining operation requires a NEMA 12 or NEMA 3R housing with specialized micro-mesh air filters. Dust buildup heavily insulates the coils, trapping heat inside and destroying electrical efficiency.
Acoustic constraints frequently complicate indoor installations. Forced-air upgrades introduce significant fan noise. Fast-spinning fan blades generate loud, constant humming and air turbulence. Your implementation strategy must account for local acoustic limits. Commercial offices and residential-adjacent zoning often enforce strict decibel maximums. You might need to install acoustic dampening baffles to maintain regulatory compliance.
Selecting the right technology demands a logical, step-by-step physical audit of your facility and load profile.
First, objectively assess your load profiles. Determine if the site experiences stable, predictable base loads. Alternatively, note if it faces heavy, intermittent electrical peaks. High peak loads strongly dictate the immediate need for forced-cooling fan upgrades to manage sudden heat spikes.
Next, audit your hard site constraints. Look at the exact physical installation location. If the installation sits indoors, above ground level, or near critical waterways, you should default your shortlist to a dry-type system. This drastically simplifies architectural compliance and environmental permitting.
Following the physical audit, begin rigorous vendor evaluation. Do not simply accept basic catalog specifications. Recommend requesting detailed thermal dissipation models from manufacturers. Ask them to provide comprehensive lifecycle maintenance calculators before you finalize any technical specification.
Finally, always consult with certified engineering professionals. Prompt a structural or electrical engineer to review your facility ventilation metrics. Ensure your building's airflow mathematically matches the chosen hardware class before signing the procurement order.
Follow these actionable next steps to ensure a successful deployment:
Analyze your baseline and peak electrical load histories.
Map all physical site constraints, acoustic limits, and environmental hazards.
Request precise thermal models and maintenance schedules from targeted vendors.
Verify HVAC capacity and ambient airflow pathways with a structural engineer.
The choice of a cooling method is rarely a strictly electrical decision. It is fundamentally a facility management, risk mitigation, and building compliance decision. While liquid cooling remains the absolute global standard for heavy grid-level distribution, dry-type technology serves a highly distinct and valuable purpose. It acts as the definitive choice for decentralized, indoor, and environmentally regulated applications.
We strongly encourage a holistic evaluation of your infrastructure. Base your choices on the entire 15-to-30-year lifecycle of the physical asset. Looking beyond initial procurement costs ensures optimal reliability, robust safety, and long-term financial health for your facility.
Review your local fire codes and environmental spill regulations immediately.
Evaluate your current HVAC capacity to determine viability for indoor installations.
Collaborate closely with trusted manufacturers to model internal thermal loads accurately.
A: Both variations can easily exceed 25 years of active service if you strictly respect their thermal limits. However, achieving that lifespan requires vastly different maintenance routines. Oil-filled units demand regular fluid sampling and complex filtration to prevent internal degradation. Dry-type units require simpler, routine visual inspections and physical dusting to keep their convection pathways clear.
A: Yes, you can successfully deploy them outdoors. However, they require highly specific enclosure protections. You must utilize a NEMA 3R rating or higher. These rugged, weatherproof housings shield the sensitive dry coils from rain, snow, and wind-blown debris, ensuring safe operation in harsh external environments.
A: The AF rating signifies the addition of thermostatically controlled cooling fans. When internal core temperatures rise, these fans activate to forcefully push ambient air across the coils. This active ventilation provides a temporary capacity bump. It typically allows the unit to handle 25% to 33% more electrical load during peak demand conditions.
A: There is important technical nuance here. Dry-type units generally exhibit slightly higher no-load losses compared to traditional oil systems. However, they remain highly competitive overall. Modern cast-resin designs vastly improve internal efficiency. Furthermore, they lack the massive energy drains associated with heavy external liquid cooling pumps, balancing the operational scale.
