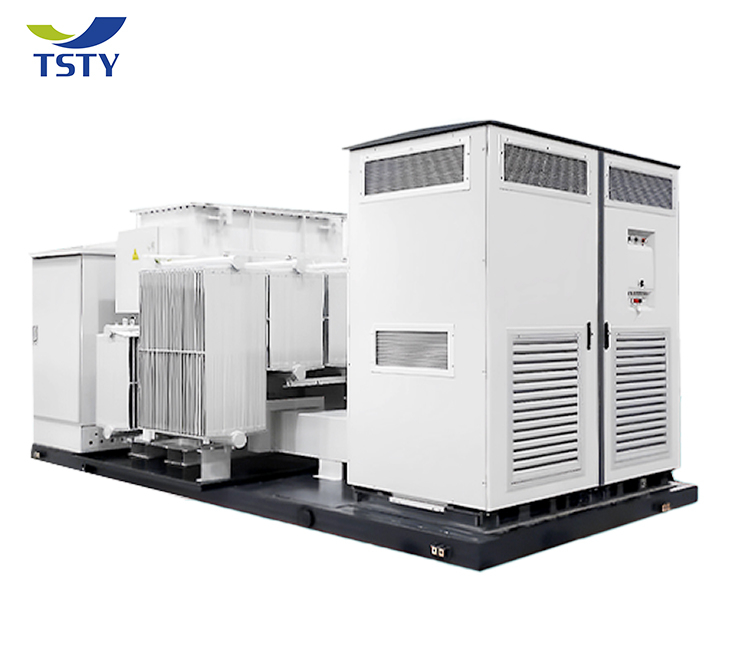

TSTY PV Compact Step Up Substation for Ground Mounted Solar Power Plant Outdoor Use

Name: TSTY PV Compact Step Up Substation for Ground Mounted Solar Power Plant Outdoor Use
Brand: TSTY
Rating: 5.0 (23 reviews)

TSTY PV Compact Substation is a prefabricated outdoor compact substation designed for voltage step‑up and grid connection of photovoltaic power plants. It integrates step‑up transformer, medium voltage switchgear and monitoring device, and is CE, IEC, UL, ISO, SASO-certified.

Availability:



Inquire

Model:
PV transformer substation
Brand:
TSTY

ground mount solar substation PV inverter booster inverter duty transformer skid mounted solar substation IEC solar transformer PV transformer outdoor solar booster industrial scale PV substation solar field collector PV combiner substation

Product Description

Why TSTY

FAQ

TSTY ELECTRIC: Dedicated Compact Substation for Renewable Energy Generation

TSTY ELECTRIC Dedicated Compact Substation for Renewable Energy Generation: a high performance, prefabricated high voltage/low voltage substation that integrates high voltage switchgear, transformer core, protective fuses (all inside the oil tank), low voltage switchgear, and complete auxiliary equipment into one compact unit.

Designed as a dedicated step up solution, it raises the voltage from renewable energy grid tied inverters (or AC generators) to 10 kV or 35 kV, then efficiently delivers power to the grid via a 10 kV or 35 kV line. It is the ideal companion for solar, wind, and other renewable energy systems.

Why Choose TSTY ELECTRIC’s Substation?

Compact structure, small footprint; external radiator for superior heat dissipation : TSTY maximises space efficiency – perfect for distributed renewable projects.
Incorporates our latest transformer series technology – rational structure, safe and reliable : Engineered by TSTY with decades of electrical expertise.
Transformer oil serves as insulating medium for 10 kV or 35 kV side, greatly reducing safety clearances : Safer & more compact – a result of TSTY’s innovative oil‑immersed design.
Fully enclosed enclosure isolates oil from atmosphere, reducing oxidation and moisture ingress; fin‑type radiators for easy disassembly and simple maintenance : TSTY’s sealed architecture ensures long‑term system stability and low maintenance.
Special shot‑blasting surface treatment – excellent anti‑corrosion, anti‑solar radiation, and sand‑erosion resistance : Ruggedised for harsh environments – a hallmark of TSTY quality.
Low‑voltage side uses latest intelligent circuit breakers and moulded case air circuit breakers – high breaking capacity, excellent protection : TSTY integrates advanced LV protection for maximum operational safety.
Transformer tank can be equipped with pressure gauges / thermometers with communication interfaces; load switch can be fitted with limit switch – enabling remote monitoring, operation and maintenance : Smart ready – TSTY supports remote SCADA and IoT integration.
Fully sealed enclosure – IP54 for HV/LV compartments, IP68 for the transformer itself : Highest protection class – TSTY guarantees reliability even in extreme conditions.

Q: Are you a factory or trading company?

A: We are an integrated manufacturer and exporter. OEM/ODM services are supported.

Q: What are your main advantages?

A: Over 30 years of industry experience, advanced production lines, reliable quality, fast lead time, and responsive service. Free spare parts are also available for support.

Q: How fast can you deliver?

A: Delivery time depends on the order quantity. Normally 15–20 days after receiving deposit.

Q: What payment methods do you accept?

A: T/T, L/C, PayPal, Visa, Western Union — based on your order needs.

Q: Do you inspect the products before shipment?

A: Yes, we conduct 100% quality inspection before delivery.

Q: What certifications do you hold?

A: UL, CE, SGS, ISO, IEC, GOST —all internationally recognized. We also partner with brands like DuPont, ABB, and Siemens.

Q: How can I be sure you're using quality materials?

A: We welcome material testing upon delivery. We focus on long-term partnerships, not one-time transactions.

TSTYNICE transformers hold UL, ISO 9001, IEC 60076, CE, GOST, SGS, and BV certifications, with 180 patents (20 inventions). Our CNAS-accredited lab ensures global compliance across 80+ markets.

TSTY ELECTRIC – Your Trusted Partner in Renewable Energy

With 30 years of experience in special substations for solar and wind applications, TSTY ELECTRIC delivers safe, efficient, and smart prefabricated substations that meet international standards. Our products are widely used in utility scale PV plants, wind farms, and industrial renewable projects worldwide.
