TSTY Prefabricated Cabin Substation – Modular, Fast‑Deploy Power Solution

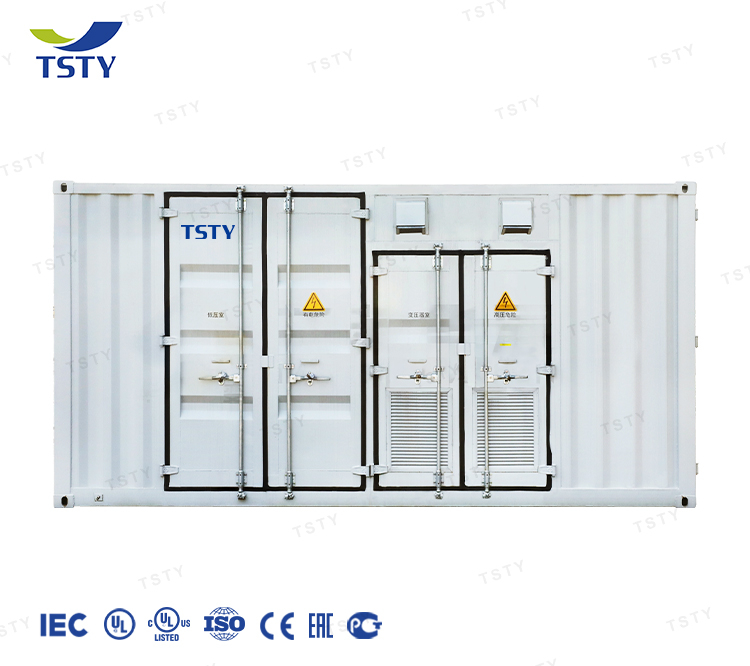

The TSTY prefabricated cabin substation is a containerized, modular substation designed for rapid deployment in renewable energy plants, mining sites, urban distribution networks, and emergency power applications. Unlike conventional integrated box substations, the prefabricated cabin series separates high‑voltage switchgear, transformer, low‑voltage distribution panels, and secondary protection cubicles into individual standard shipping container modules (20ft or 40ft). Each cabin is fully equipped, internally wired, and factory‑tested before delivery. On site, the cabins are simply lifted and bolted together, requiring minimal civil works and significantly reducing installation time. This solution is ideal for projects where speed, space saving, and high reliability are critical.

Feature	Description
Modular Construction	Independent cabins for HV, transformer, LV, and control rooms – flexible configuration and easy expansion.
Factory Prefabrication	Over 90% of assembly and testing completed in the factory, reducing on‑site installation time by up to 50%.
High Protection	Enclosure protection reaches IP54 (dustproof, waterproof). Optional C5 anti‑corrosion coating for coastal or desert environments.
Weather Resistance	Heavy‑duty steel construction with thermal insulation, UV‑resistant paint, and built‑in temperature control (operates from -40°C to +55°C).
Intelligent Monitoring	Equipped with remote terminal unit (RTU), temperature sensors, and communication ports (RS485/Ethernet). Supports SCADA integration for real‑time data and unattended operation.
Low Maintenance	Dry‑type transformer option for maintenance‑free operation; oil‑immersed transformer with sealed tank for long life.
Global Certifications	CE, IEC, UL, ISO, SASO certified – ensuring smooth customs clearance and grid acceptance worldwide.

Space Saving – Compact, containerized footprint saves up to 50% land area compared to traditional stick‑built substations.
Short Construction Period – Factory prefabrication and modular assembly cut project timeline by 30‑50%.
Easy Transport – Standard 20ft/40ft shipping container dimensions fit global logistics, reducing freight costs.
High Reliability – Fully enclosed, dustproof, waterproof, and corrosion‑resistant – designed for 20+ years of outdoor service.
Cost Effective – Reduced on‑site civil works and labour lower overall project investment.
Remote Operation – Built‑in intelligent monitoring enables unattended operation and predictive maintenance.

The TSTY prefabricated cabin substation is widely used in the following scenarios:

New Energy Power Plants – Step‑up and grid connection for photovoltaic and wind farms (35kV/110kV).
Onshore Wind Farms – Collector substations for wind turbines, stepping up to 35kV lines.
Urban Distribution Networks – Rapid capacity expansion for industrial parks, data centers, and residential complexes.
Mining & Remote Sites – Reliable power supply for mines, oil fields, and remote construction projects.
Emergency & Temporary Power – Quick deployment for disaster reconstruction, military bases, or temporary events.
Overseas EPC Projects – Containerized design simplifies sea and land transport, ideal for turnkey international projects.

30+ Years of Manufacturing Excellence – A national high‑tech enterprise with over three decades of power equipment expertise.
250,000㎡ Smart Factory – Equipped with 5G+ digital intelligent workshops, achieving a 99.9% product qualification rate.
International Certifications – CE, IEC, UL, ISO, SASO, and other certifications, ensuring global compliance.
Global Track Record – Products exported to 80+ countries, with overseas offices in Zambia, Ethiopia, Kazakhstan, Colombia, and Italy for local technical support.
Comprehensive Warranty – 1‑year standard warranty with 24/7 remote technical assistance.

Contact TSTY with your project specifications (voltage, capacity, cabin configuration, site conditions) – our engineering team will provide a customized solution and detailed quotation.
