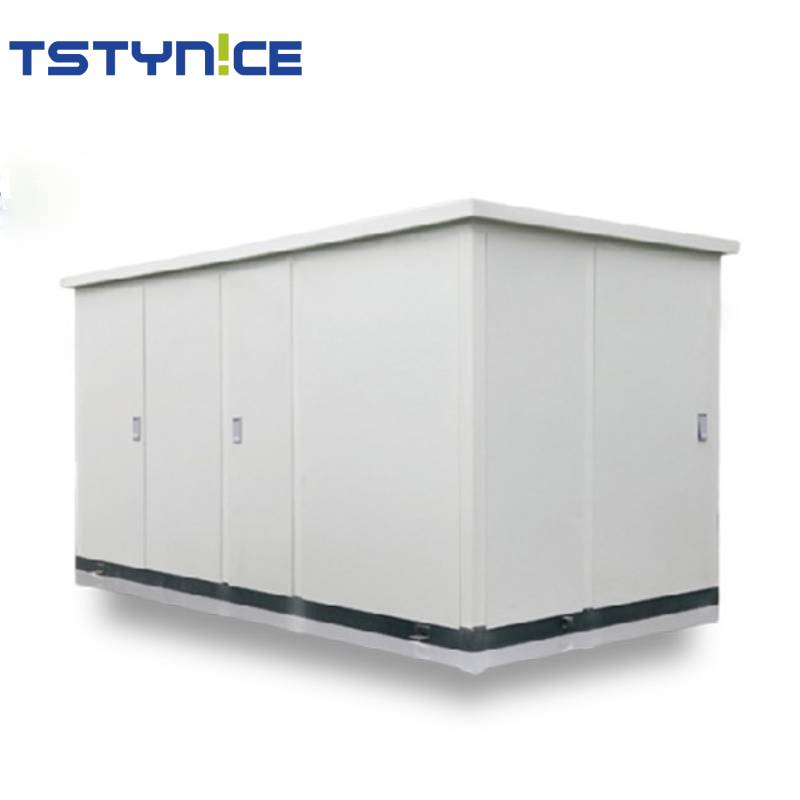

TSTYNICE Photovoltaic Box-Type Energy Storage Transformer Substation

Photovoltaic Box-Type Energy Storage Transformer Substation is an integrated power distribution unit designed specifically for solar (PV) power plants. It combines photovoltaic power generation, step-down transformation, energy storage, and intelligent distribution in a single modular system.

Applications:
Solar farms
Distributed PV systems
Microgrids

Renewable energy integration projects

For detailed specifications, quotations, or project consultations, please contact us:
Email: sales@tstytransformer.com
WhatsApp: +86-18001856258
Our technical team is ready to assist you — wherever your business operates.

Availability:



Inquire

PV Transformer Substation photovoltaic transformer substation isolation transformer substation for pv system pv substation transformer CE certified compact substation compact HV/LV substation solar inverter transformer substation compact ring main unit substation power distribution substation solar pv transformer substation

Product Advantage

Technical Parameters

Factory Show

FAQ

Certificate Collection

Photovoltaic Box-Type Energy Storage Transformer Substation not only converts solar energy into usable electrical power, but also stores surplus electricity in a battery energy storage system (BESS). During periods of low sunlight—such as night time or cloudy days—the stored energy ensures a stable, uninterrupted power supply.

Advantages of Choosing TSTYNICE Photovoltaic Box-Type Energy Storage Transformer Substation

Seamless Solar & Storage Integration: Ensures efficient use of renewable energy.
Grid-Friendly: Supports peak shaving, load shifting, and stable grid connection.
High Production Quality: Manufactured with advanced automation and strict quality testing.
Wide Application: Ideal for utility-scale PV plants, distributed solar, smart grids, and hybrid renewable projects.

Product Features of Photovoltaic Box-Type Energy Storage Transformer Substation

1. High Reliability & Energy Efficiency

Equipped with advanced battery packs and intelligent energy management.
Provides a stable power output and reduces fluctuations.
Improves energy utilization efficiency and lowers operational costs.

2. Integrated & Compact Structure

Includes transformer room, high-voltage room, low-voltage room, test room, switchgear room, and protection compartment.
Compact, sealed, and modular design ensures high durability and long service life.

3. Flexible Modular Design

Supports multiple layouts (mesh-type, product-type, or customized).
Easy to expand based on different PV station capacities and customer site conditions.

4. Advanced Insulation & Sealing Technology

Uses vacuum oil-filling and drying process to remove moisture.
Guarantees excellent dielectric strength, insulation safety, and longer lifespan of the transformer.

5. Strong Environmental Adaptability

Manufactured with anti-corrosion, high-strength steel shells.
Fire-resistant, thermally insulated, and temperature-stable design.
Excellent resistance to sand, dust, moisture, and harsh climates—suitable for deserts, coastal regions, and high-altitude areas.

No.	Items			Unit	Value
1	Rated voltage	Primary			40.5
		Secondary		kV	12;0.69
		Subsidiary circuit		V	110;220;380
2	Rated current	High voltage circuit			400~1250
		Low voltage circuit		A	630~3150
3	Rated frequency			Hz	50
4	Rated power			kVA	1250;1600;2000~20000
5	Rated insulation level	High voltage side	Power frequency	kV	95
			impact		185
		Low voltage side	Powerfrequency		42
			impact		75
6	Rated short time withstand current	High voltage side		kA	20;25;31.5
		Low voltage side			25;31.5;40
7	Rated peak withstand current	High voltage side			50;63;80
		Low voltage side			63;80;100
8	Insulation level of transformer	Power frequency		kV	65
		Impact			185
9	Insulation level of subsidiary circuit				2
