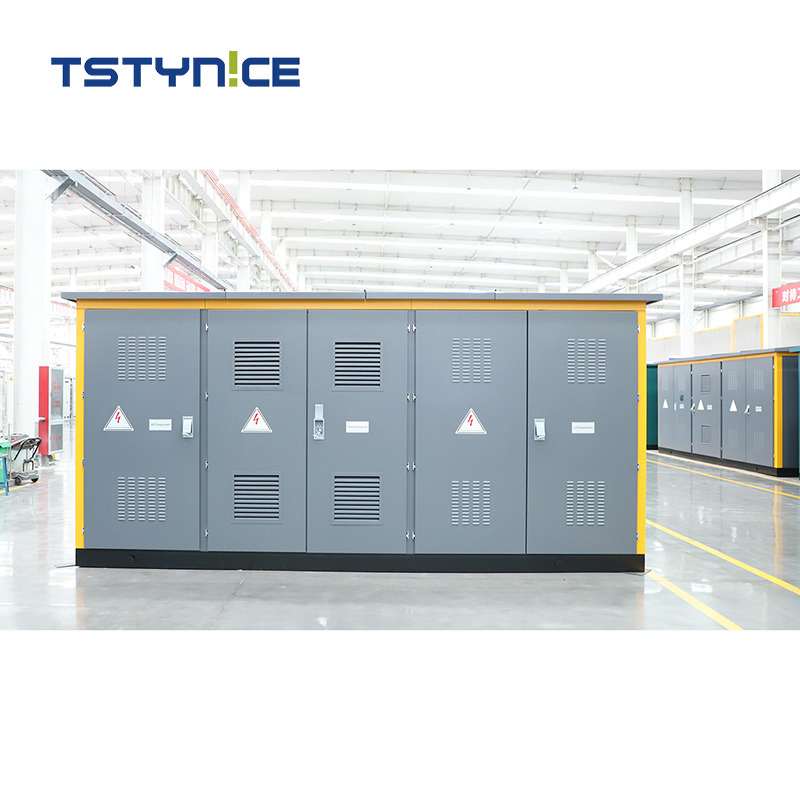

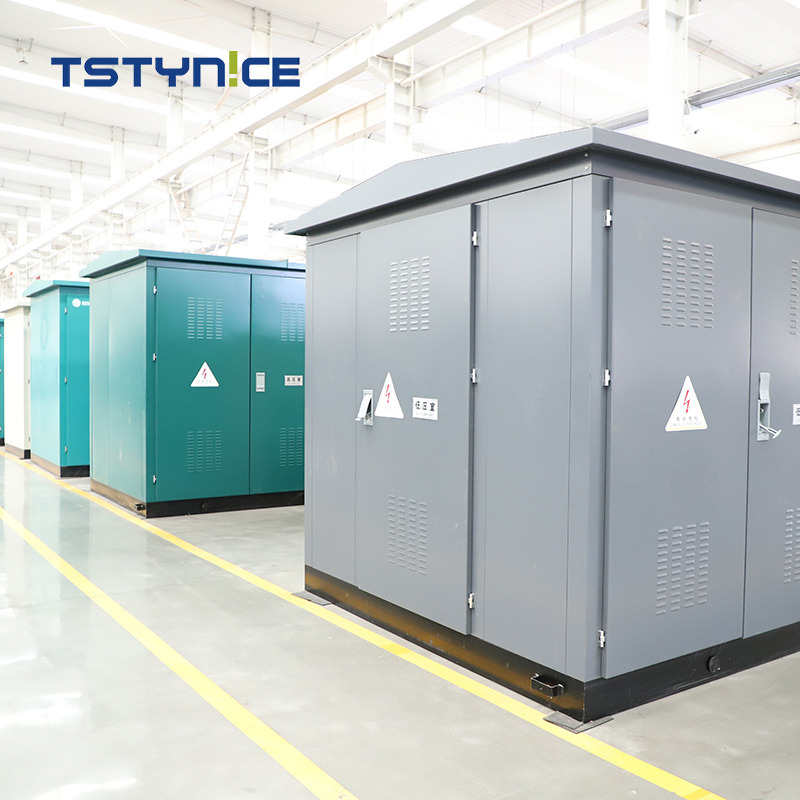

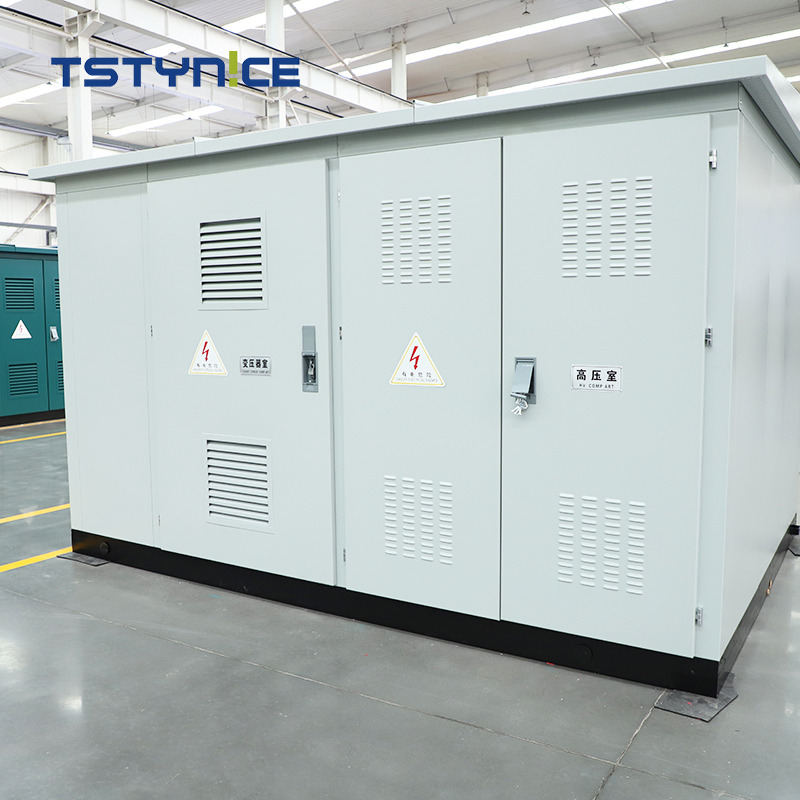

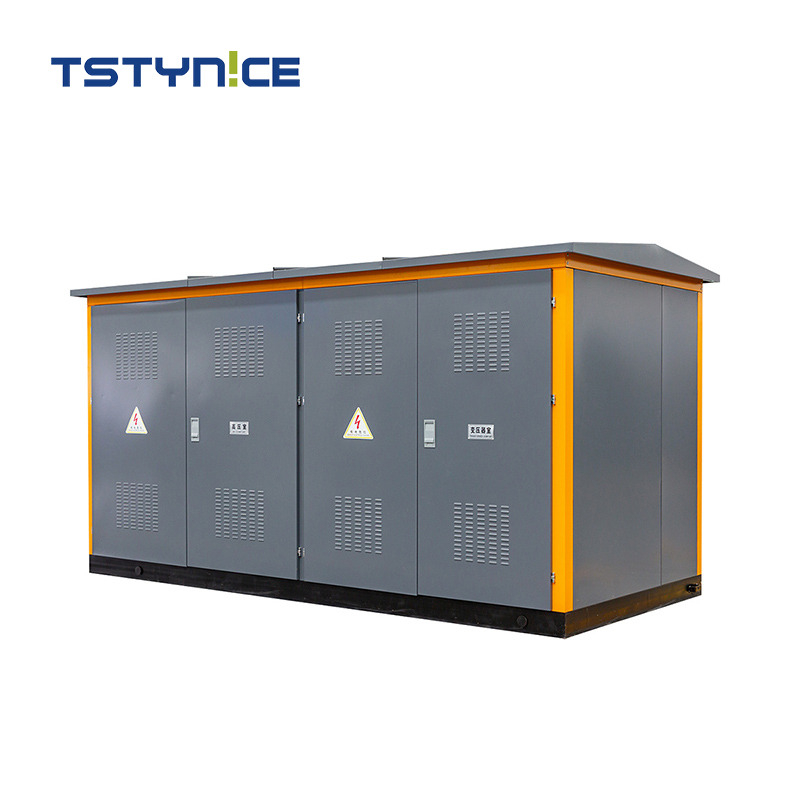

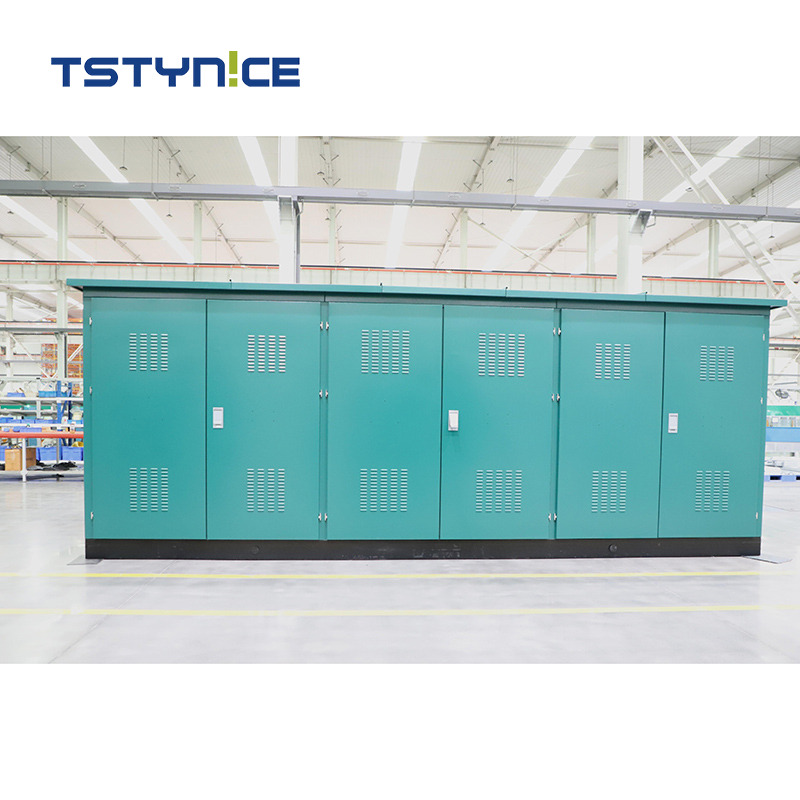

TSTYNICE Compact Transformer Substation

Our box-type substations integrate high-voltage switchgear, transformers, and low-voltage distribution into compact, factory-assembled units. Available in European, American, and underground configurations, these substations feature all-weather protection with:

IP54-rated enclosures
Corrosion-resistant steel construction
Fire-retardant materials
Thermal insulation systems

For detailed specifications, quotations, or project consultations, please contact us:
Email: sales@tstytransformer.com
WhatsApp: +86-18001856258
Our technical team is ready to assist you — wherever your business operates.

Availability:



Inquire

compact substation price compact substation manufacturer compact substation compact substation dimensions CE certified compact substation compact HV/LV substation compact 11kV distribution substation compact ring main unit substation mini power distribution substation small footprint power substation

Product Advantage

Technical Parameters

Factory Show

FAQ

Certificate Collection

Key Advantages:

1. The TSTY box-type substation shell adopts 7 layers of nano-composite coating and one-piece shell processing technology, with excellent anti-corrosion performance (more than 20 years) and wide temperature range adaptability from -40℃ to +40℃. Through modular structural design and customizable appearance color, it can achieve organic integration with the urban landscape while ensuring power supply stability.

2. Intelligent manufacturing：Full-process automated assembly/welding/testing (each link is equipped with high-precision sensors and testing equipment), production efficiency increased by 60%, product consistency reached 99.8%. Real-time collection of 500+ production parameters, dynamic optimization of AI algorithms, customized order delivery cycle shortened by 40%, meeting the customized needs of different customers. Annual output 30,000 units.

3. Automatic operation

The protection system uses substation integrated automation devices, which are installed in a decentralized manner, and can remotely set operating parameters, control the humidity and temperature in the box, and meet unattended requirements.

4. Customized services:

Deeply involved in 20+ State Grid benchmark projects, adapting to industrial/commercial/municipal multi-scenario needs, and providing customized design and manufacturing services.

Application

Urban Power Grids
Seamlessly integrates with cityscapes using customizable aesthetics and corrosion-resistant materials, ensuring safe, stable power delivery in densely populated areas.
Industrial Zones
Supports high-capacity demands (up to 20,000 kVA) for factories, mining sites, and heavy manufacturing plants with reliable operation under extreme temperatures and high short-circuit currents.
Commercial Complexes
Offers compact, intelligent energy solutions for shopping centers, office buildings, data centers, and logistics hubs where space-saving, low-maintenance systems are critical.
Municipal Infrastructure
Widely deployed in transportation, water treatment, and public service facilities, providing intelligent monitoring and remote control to meet 24/7 power supply and safety requirements.
Renewable Energy Projects
Suitable for wind, solar, and distributed energy systems, thanks to flexible configuration options, strong overload capacity, and compatibility with smart grid technologies.
Rural Electrification & Utility Projects
Trusted in national grid programs and remote utility applications, ensuring safe, efficient, and unmanned operation in harsh and remote environments.

No.	Items			Unit	Value
1	Rated voltage	Primary			40.5
		Secondary		kV	12;0.69
		Subsidiary circuit		V	110;220;380
2	Rated current	High voltage circuit			400~1250
		Low voltage circuit		A	630~3150
3	Rated frequency			Hz	50
4	Rated power			kVA	1250;1600;2000~20000
5	Rated insulation level	High voltage side	Power frequency	kV	95
			impact		185
		Low voltage side	Powerfrequency		42
			impact		75
6	Rated short time withstand current	High voltage side		kA	20;25;31.5
		Low voltage side			25;31.5;40
7	Rated peak withstand current	High voltage side			50;63;80
		Low voltage side			63;80;100
8	Insulation level of transformer	Power frequency		kV	65
		Impact			185
9	Insulation level of subsidiary circuit				2

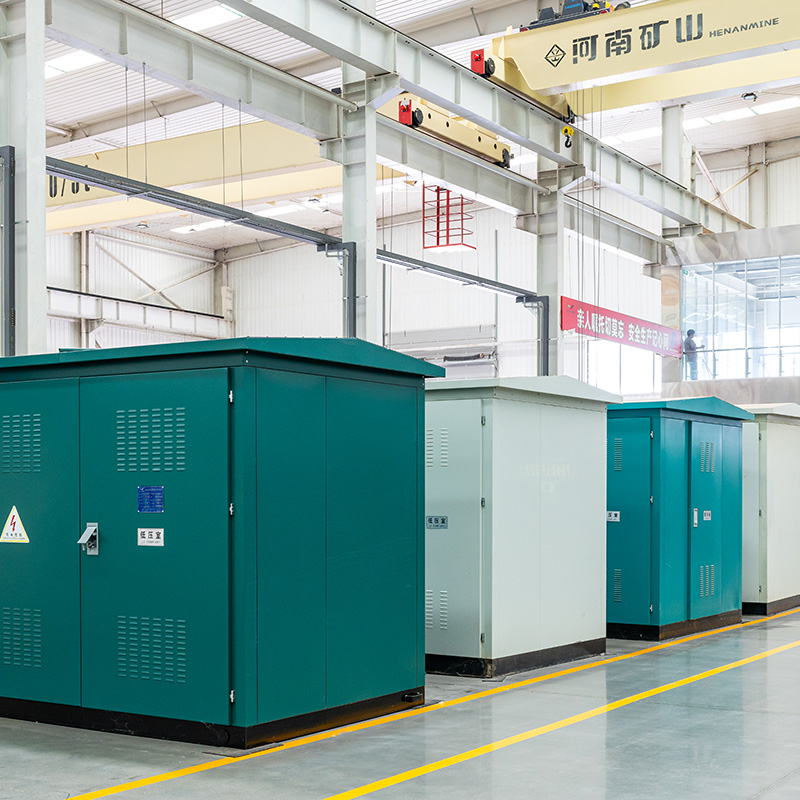

Spanning 250,000 in Henan, our smart factory leverages 5G automation to produce 3,000+ IEC/CE-certified substations annually. With 158 patents and 99% automation, we power projects across 80+ countries.

Q: Are you a factory or a trade company?

A: Integrated Manufacturing & Trading, OEM/ODM available.

Q: Our Advantage?

A: 30 years experience, Advanced production equipments, Stable quality, Fast delivery, Professional & good & Prompt service.Also some free parts can be provided.

Q: How long is your delivery time?

A: it is depends on your quantity,generally within 15-20 days upon receipt of the advance payment.

Q: What is your payment terms?

A : T/T, L/C,Visa Paypal ,Weatern Union for different circumstances.

Q: Do you have inspection procedure before shiping?

A: Yes,we do 100% QC inspection

Q: What certificates do you have？

A: CESGS ISOIEC StandardsGost Certificates.

Long-term strategic partnerships with DuPont, ABB, Siemens, etc.

Q:AS we knew, when we make order, some suppliers used lower material insted of high quality material products and send to us, how can i trust you?

A: we suggest clients to test the material after receiving goods. We aim to do long term business, not one times.

TSTYNICE transformers hold ISO 9001, IEC 60076, CE, GOST, SGS, and BV certifications, with 158 patents (20 inventions). Our CNAS-accredited lab ensures global compliance across 80+ markets.
