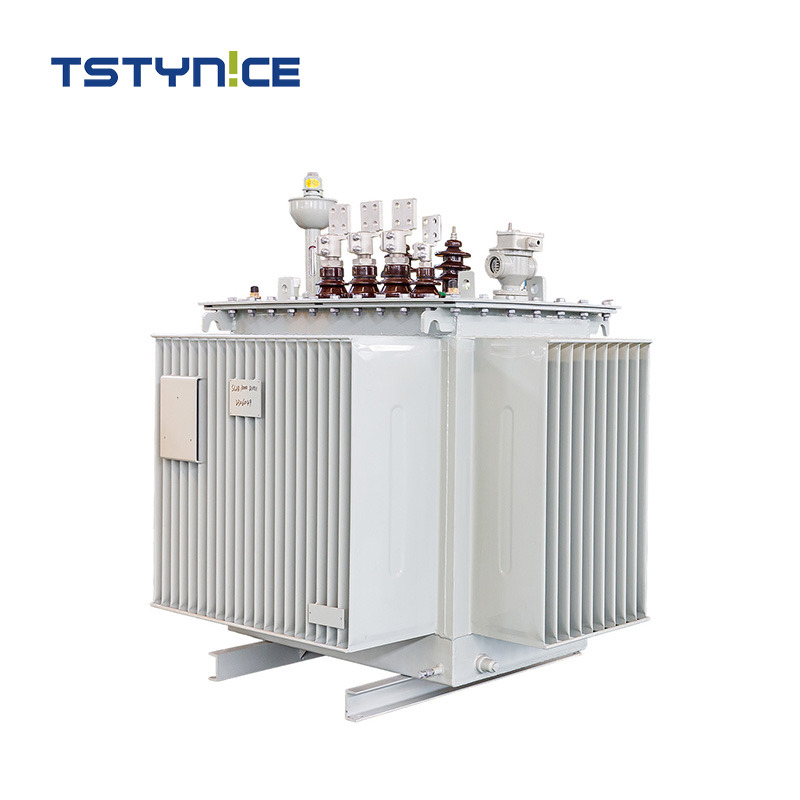

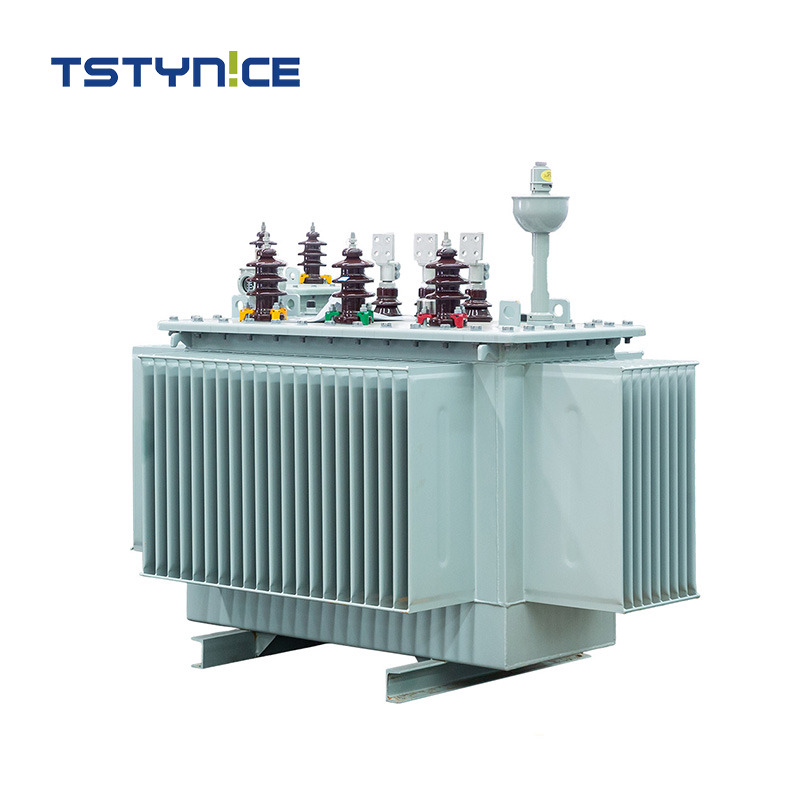

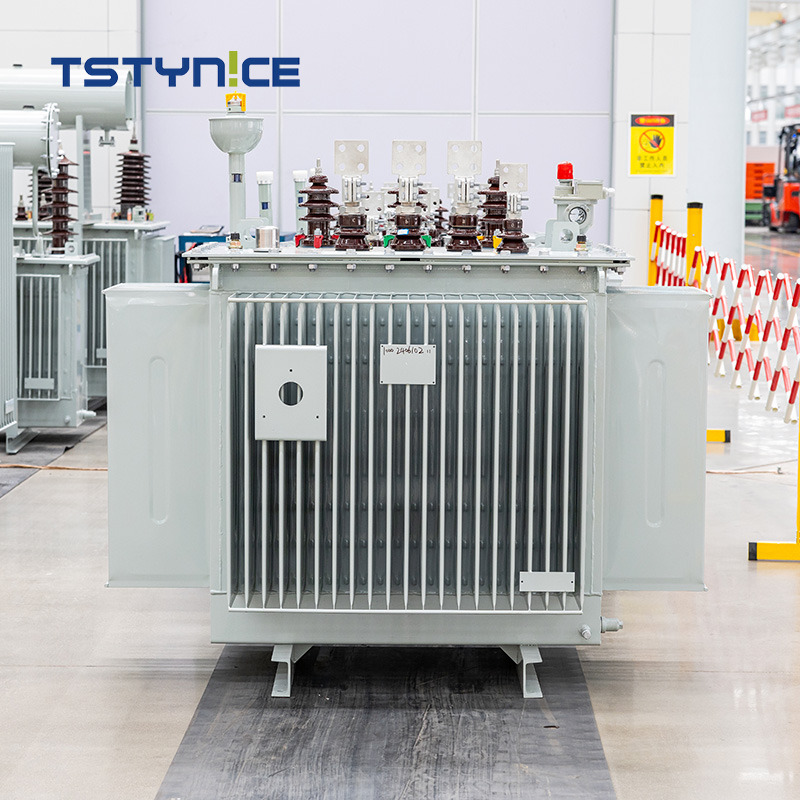

TSTYNICE 22 kv Oil-Immersed Power Transformer

Our oil-immersed transformer series embodies the forefront of power conversion technology, offering exceptional performance, safety, and longevity. Expertly engineered for superior reliability, these transformers set new standards across diverse power applications worldwide.

Technical Specifications:
• Comprehensive Range: Models S9 through S22
• Voltage Coverage: 6kV to 35kV systems
• Capacity Spectrum: 15kVA to 31,500kVA configurations
• Certification Mastery: ISO 9001, IEC, SGS, Intertek, CCC, CE, BV, GOST compliant

For detailed specifications, quotations, or project consultations, please contact us:
Email: sales@tstytransformer.com
WhatsApp: +86-18001856258
Our technical team is ready to assist you — wherever your business operates.

Availability:



Inquire

oil-immersed power station 22 kv oil-immersed power transformer 22 kv oil-immersed transformer industrial oil-immersed transformer HV/MV oil transformer oil-cooled power transformer liquid-immersed transformer 22kv outdoor oil transformer 22kv three phase oil-immersed transformer 22 kv oil filled transformer

Product Advantage

Technical Parameters

Factory Show

FAQ

Certificate Collection

1. Premium Material Selection

Our transformers feature H62 high-conductivity copper rods (30% lower resistance), premium mineral oil (dielectric strength >56kV), and weather-resistant acrylic rubber gaskets. The galvanized steel enclosure (30-year rust-proof) exceeds GB standards for durability in harsh environments.

2.Digital Manufacturing

95% automated production with Baosteel silicon steel achieves:

• 50 units/day capacity (3× traditional speed)

• 5dB noise reduction

• 5% lower no-load loss

• ISO-certified vacuum oil filling/drying systems

3. Innovation and R&D advantages

National CNAS certified laboratory

Each transformer has passed more than ten rigorous tests such as lightning impulse, temperature rise, insulation no-load loss, etc. to ensure stable operation in all environments.

International mutual recognition testing standards

100% of the products have been fully tested in the laboratory, and qualified products are accompanied by global mutual recognition test reports. All products have passed CE, IEC, SGS, BV, GOST and other certifications, demonstrating professional capabilities and international credibility.

4.Product design advantages

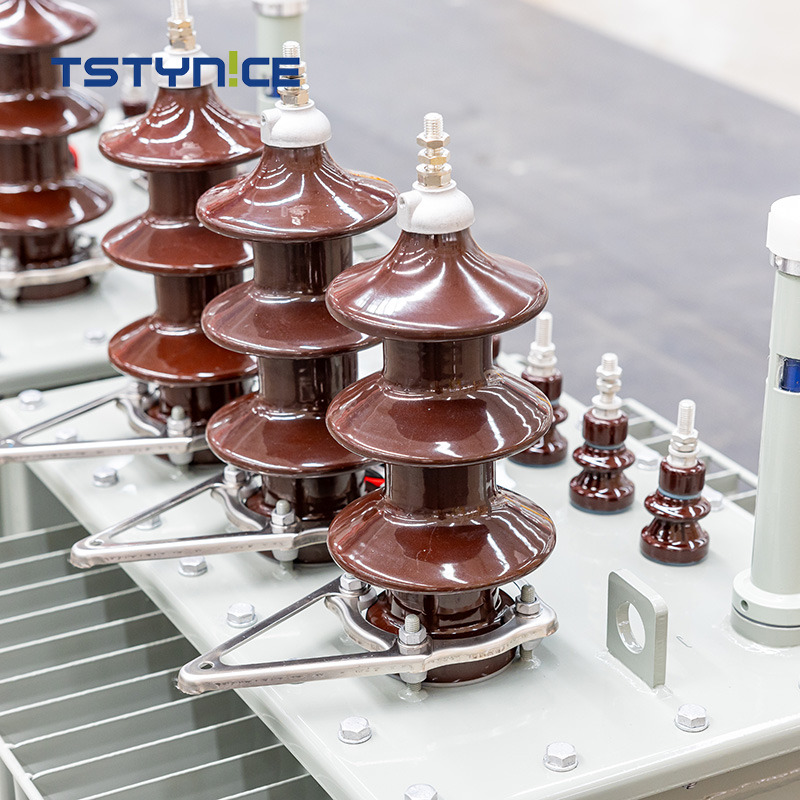

① Ceramic bottle with groove: protects the sealing gasket from aging by ultraviolet rays, directly solving the old problem of oil leakage in traditional transformers.

② Double seal of tap changer: double insurance, no need to worry about oil leakage during installation

③ Ultra-low no-load loss: adopts step lamination process + high magnetic permeability oriented silicon steel sheet produced by Baosteel, the no-load loss is 5% lower than the national standard (GB/T 6451), and the annual operating electricity cost is significantly saved.

Applications

Utilities & Grids: Ensure stable voltage transformation for efficient long-distance transmission and safe local distribution.
Industrial Plants: Built to withstand heavy-load operations in manufacturing lines, mining sites, and large-scale processing facilities.
Renewable Energy: Seamlessly integrate with wind and solar power systems, enhancing grid stability and optimizing energy efficiency.
Critical Facilities: Guarantee uninterrupted 24/7 performance for mission-critical environments such as data centers, hospitals, and oil fields.
Urban Infrastructure: Designed with a compact footprint to meet the space and safety requirements of commercial buildings and municipal substations.

Technical Parameter for S Series 22kv No-load Voltage Regulation Transformer

Rated Capacity (KVA)	Voltage Combination			Connection Group Symbol	No-load Loss R(W)	Load Loss R(W)	Impedance Voltage(%)	No-load Current (%)
Rated Capacity (KVA)	High Voltage（KV)	Tapping Range of High Voltage	Low Voltage （KV)	Connection Group Symbol	No-load Loss R(W)	Load Loss R(W)	Impedance Voltage(%)	No-load Current (%)
30	22		0.4		90	690/660	5.5	2.1
50					130	1010/960		2
63					150	1200/1150		1.9
80					180	1440/1370		1.8
100					200	1730/1650		1.6
125					240	2080/1980		1.5
160				Dyn11	290	2540/2420		1.4
200		±5%		Yzn11	340	3000/2860		1.3
250		±2x2.5%		Yyn0	400	3520/3350		1.2
315					480	4210/4010		1.1
400					570	4970/4730		1
500					680	5940/5660		1
630					810	6820	6	0.9
800					980	8250		0.8
1000					1150	11330		0.7
1250					1380	13200		0.7
1600					1660	15950		0.6
2000					1950	19140		0.6
2500					2340	22200		0.5

Smart Manufacturing & Reliable Capacity

TSTYNICE operates a 250,000㎡ intelligent factory with 220+ advanced automation units and full-process digital systems (WMS, RGV/AGV, MES) powered by 5G. We achieve 99% automation and real-time precision control across production.

With an annual capacity of 3,000 substations, 10,000 switchgear sets, and 50 oil-immersed transformers per day, we ensure fast delivery and consistent quality to meet global high-volume demands.

Q: Are you a manufacturer or trading company?

A: We are an integrated manufacturer and exporter of transformers, compact substations, and high/low voltage switchgear. OEM and ODM services are fully supported.

Q: What are your main advantages?

A: With over 30 years of industry experience, we offer:

• Advanced automated production lines

• Stable product quality with international certifications

• Fast and on-time delivery

• Responsive and professional customer support

• Spare parts support available for selected models

Q: What is your typical lead time?

A: Lead time depends on the order quantity. Generally, production takes 15–20 days after receiving the deposit.

Q: What payment methods do you accept?

A: We support T/T, L/C, PayPal, Visa, and Western Union, depending on the order and market region.

Q: Do you conduct quality inspections before shipment?

A: Yes, we perform 100% quality control inspection on all products before delivery.

Q: What certifications do you have?

A: Our products meet IEC, CE, SGS, ISO, and Gost standards.

We also maintain long-term strategic partnerships with ABB, Siemens, and DuPont.

Q: How can we ensure the product quality is as promised?

A: We encourage clients to conduct material testing upon receipt. We are committed to long-term partnerships—not one-time sales—and always prioritize transparency and quality.

TSTYNICE transformers hold ISO 9001, IEC 60076, CE, GOST, SGS, and BV certifications, with 158 patents (20 inventions). Our CNAS-accredited lab ensures global compliance across 80+ markets.
