Power Transformers: Key Roles in Electricity Distribution

What Is a Power Transformer?

A power transformer is a critical electrical device designed to transfer electrical energy between two or more circuits through electromagnetic induction. Operating on the principle of Faraday’s law of induction, a power transformer can step up voltage levels for long-distance transmission or step down voltage levels for safe distribution to end-users. The fundamental components of a power transformer include primary and secondary windings, a magnetic core, and insulation systems that work together to ensure efficient energy conversion with minimal losses.

Modern power transformer designs incorporate advanced materials and engineering techniques to achieve optimal performance. For instance, grain-oriented silicon steel is commonly used in the core to reduce hysteresis losses, while high-quality copper windings minimize resistive losses. The insulation system, typically consisting of oil and paper materials, provides dielectric strength and thermal stability, enabling the power transformer to operate reliably under various load conditions.

The efficiency of a power transformer is remarkable, with most units achieving performance levels between 95% and 99%. This high efficiency makes the power transformer indispensable in modern electrical systems, where energy conservation and operational reliability are paramount. As electrical networks continue to expand and evolve, the role of the power transformer becomes increasingly vital in maintaining grid stability and ensuring continuous power supply.

Types of Transformers

The electrical industry utilizes various types of transformers, each engineered for specific applications within power distribution networks. Understanding these classifications – based on voltage function, phase configuration, application level, and construction technology – is essential for optimizing system performance and reliability. Below is a comprehensive overview aligned with TSTYNICE’s product innovations:

I. Classification by Voltage Conversion Function

1. Step-Up Transformers

• Enable efficient long-distance transmission by increasing voltage (e.g., 10kV → 110kV/220kV).

• TSTYNICE Innovation: Utilize hermetically sealed tanks with nitrogen blankets to prevent insulation degradation, enhancing lifespan in power plants.

• Core Advantages:

• Technical Edge: Higher turns ratio in secondary windings minimizes transmission losses by up to 30%.

2. Step-Down Transformers

• Safely reduce voltage for end-users (e.g., 11kV → 400V).

• TSTYNICE Innovation: Feature amorphous metal cores in distribution models, reducing no-load losses by 70-80% compared to silicon steel.

• Core Advantages:

• Safety Focus: Robust insulation systems prevent arcing in urban/residential deployments.

II. Classification by Phase Configuration

1. Single-Phase Transformers

• Ideal for low-demand applications (<100 kVA) like rural households.

• TSTYNICE Innovation: Compact pole-mounted designs with corrosion-resistant enclosures for harsh environments.

• Core Advantages:

• Limitation: Lower efficiency (94-96%) than three-phase units.

2. Three-Phase Transformers

• Deliver balanced power for industrial/commercial loads (up to 10,000 kVA).

• TSTYNICE Innovation: Radial split-winding technology improves fault tolerance and load sharing in factories.

• Core Advantages:

• Efficiency Gain: 98-99.5% efficiency at full load, reducing operational costs.

III. Classification by Application Level

1. Distribution Transformers

• Optimized for partial-load efficiency (95-98%) in final voltage conversion (<33kV).

• TSTYNICE Innovation: Eco-friendly ester fluid insulation offers biodegradability and fire safety for urban substations.

• Core Advantages:

• Space Efficiency: Pad-mounted designs reduce footprint by 40% vs. traditional units.

2. Power Transformers

• Handle transmission voltages (>33kV) with full-load efficiency (97-99%).

• TSTYNICE Innovation: On-Load Tap Changers (OLTC) enable real-time voltage regulation in grid substations.

• Core Advantages:

• Durability: Forced-oil cooling systems sustain performance in extreme temperatures (-40°C to +55°C).

IV. Classification by Construction Technology

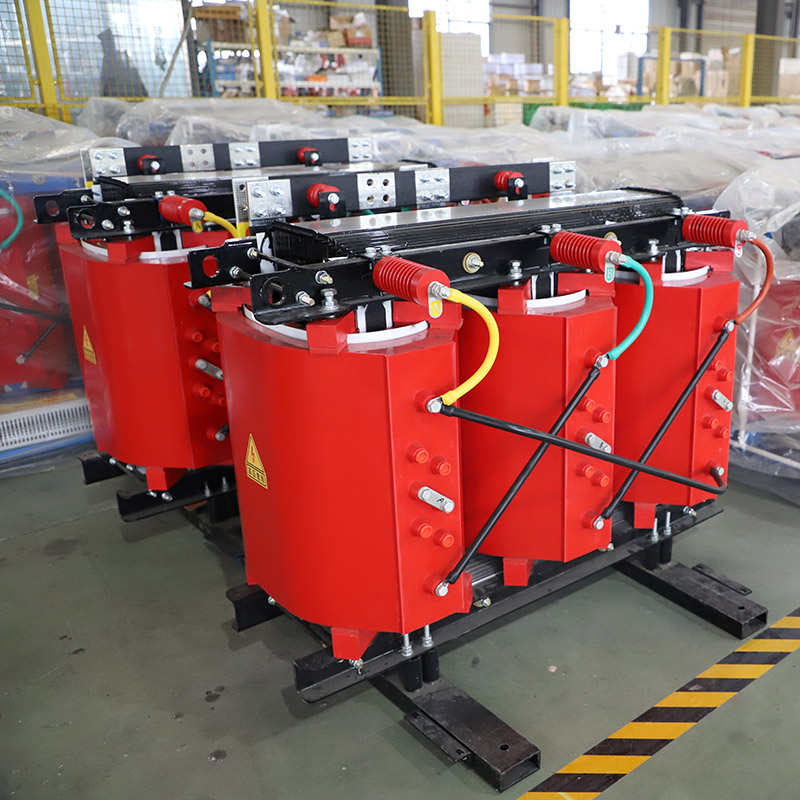

1. Dry-Type Transformers

• Zero flammability risk using epoxy resin cast coils.

• TSTYNICE Innovation: Class H (180°C) insulation for hospitals/data centers requiring fire safety.

• Core Advantages:

• Eco-Benefit: 99% recyclable materials; no oil contamination risk.

2. Liquid-Filled Transformers

• Superior heat dissipation for high-power applications.

• TSTYNICE Innovation: Hermetically sealed systems with ester fluids extend service life to 30+ years.

• Core Advantages:

• Maintenance: Reduced oil degradation vs. conventional designs.

Comparative Analysis of TSTYNICE Transformers

The Importance of Power Transformers in Electricity Distribution Systems

The power transformer serves as the linchpin in modern electricity distribution systems, performing several critical functions that ensure reliable and efficient power delivery to consumers. Without the power transformer, the electrical grid as we know it would be impossible to operate, making it one of the most essential components in the entire power infrastructure.

One of the primary roles of a power transformer is voltage regulation and conversion. As electricity travels from power plants to end-users, it must undergo multiple voltage transformations to minimize losses and ensure safety. The power transformer accomplishes this by stepping up voltage to extremely high levels (up to 765 kV or more) for long-distance transmission, then stepping it down to medium levels for sub-transmission, and finally to usable levels for consumers. This voltage transformation capability of the power transformer reduces line losses by up to 90% compared to transmitting power at distribution voltages.

The power transformer also plays a crucial role in system isolation and protection. By providing galvanic isolation between primary and secondary circuits, the power transformer prevents fault currents from propagating through the system, enhancing overall grid stability. This isolation feature of the power transformer is particularly important in preventing cascading failures that could lead to widespread blackouts.

Another vital function of the power transformer is power quality improvement. Modern power transformer designs incorporate features that mitigate harmonics, reduce voltage fluctuations, and maintain balanced three-phase systems. These capabilities are increasingly important as sensitive electronic equipment becomes more prevalent in both industrial and residential settings.

The economic impact of the power transformer cannot be overstated. By enabling efficient long-distance power transmission, the power transformer allows utilities to locate power plants in optimal locations (near fuel sources or renewable energy sites) while serving distant load centers. This flexibility provided by the power transformer results in significant cost savings for both utilities and consumers.

Recent trends in power transformer technology focus on enhancing efficiency and integrating smart grid capabilities. Modern power transformer units now feature advanced monitoring systems that track parameters such as temperature, load, and insulation condition in real-time. These smart power transformer designs enable predictive maintenance, reducing downtime and extending service life. Additionally, new materials and manufacturing techniques are producing power transformer units with even higher efficiency ratings, contributing to global energy conservation efforts.

Power Transformers in the National Power Grid

The national power grid represents one of the most complex engineering achievements in modern history, and at its core lies the power transformer. These critical devices form the backbone of the transmission and distribution network, enabling the efficient movement of electricity across vast distances while maintaining system stability and reliability.

In the context of the national grid, the power transformer serves multiple strategic functions. At power generation facilities, large power transformer units step up voltage from generation levels (typically 11-25 kV) to transmission levels (230-765 kV). This initial voltage transformation by the power transformer is essential for minimizing energy losses during long-distance transmission. Without this critical function performed by the power transformer, the economic viability of the national grid would be severely compromised.

As electricity traverses the transmission network, the power transformer continues to play a vital role at major substations where voltage levels may be adjusted for optimal system performance. These bulk power transformer installations are engineered to handle enormous power flows, with some units capable of processing over 1,000 MVA of electrical power. The reliability of these power transformer units is paramount, as their failure could disrupt power supply to millions of consumers.

The integration of renewable energy sources into the national grid presents new challenges and opportunities for power transformer technology. Wind farms and solar installations often require specialized power transformer designs that can handle variable power inputs and maintain grid stability. Modern power transformer units for renewable applications incorporate advanced features such as harmonic filtering and dynamic voltage regulation to accommodate the intermittent nature of these energy sources.

Smart grid initiatives are transforming the traditional power transformer into an intelligent node within the national grid. Next-generation power transformer designs now include sophisticated monitoring and communication systems that provide real-time data on operating conditions. These smart power transformer units can automatically adjust to changing load conditions, predict maintenance requirements, and even self-diagnose potential issues before they lead to failures.

The following table illustrates the evolution of power transformer technology in the national grid context:

The future of the national grid will increasingly depend on advanced power transformer technologies that can adapt to changing energy landscapes. Innovations such as solid-state power transformer designs, superconducting materials, and artificial intelligence integration promise to revolutionize how these critical devices function within the grid. These emerging power transformer technologies will enable greater renewable energy penetration, improved system resilience, and enhanced operational efficiency.

As the national grid continues to evolve, the power transformer will remain at the center of this transformation, serving as the critical interface between different voltage levels and ensuring the reliable delivery of electricity to all sectors of the economy. The ongoing development of power transformer technology will play a decisive role in shaping the future of electrical power systems worldwide.
