In the rapidly evolving landscape of electrical infrastructure, the selection between dry type transformer and oil immersed transformer technologies represents a critical decision point for engineers, facility managers, and sustainability officers. As global fire safety regulations tighten and environmental consciousness rises, understanding the fundamental differences between these transformer technologies is no longer optional—it’s essential for operational resilience and compliance. This comprehensive analysis delves into the core distinctions, performance metrics, and application-specific advantages that define these two dominant transformer categories in modern power distribution systems.

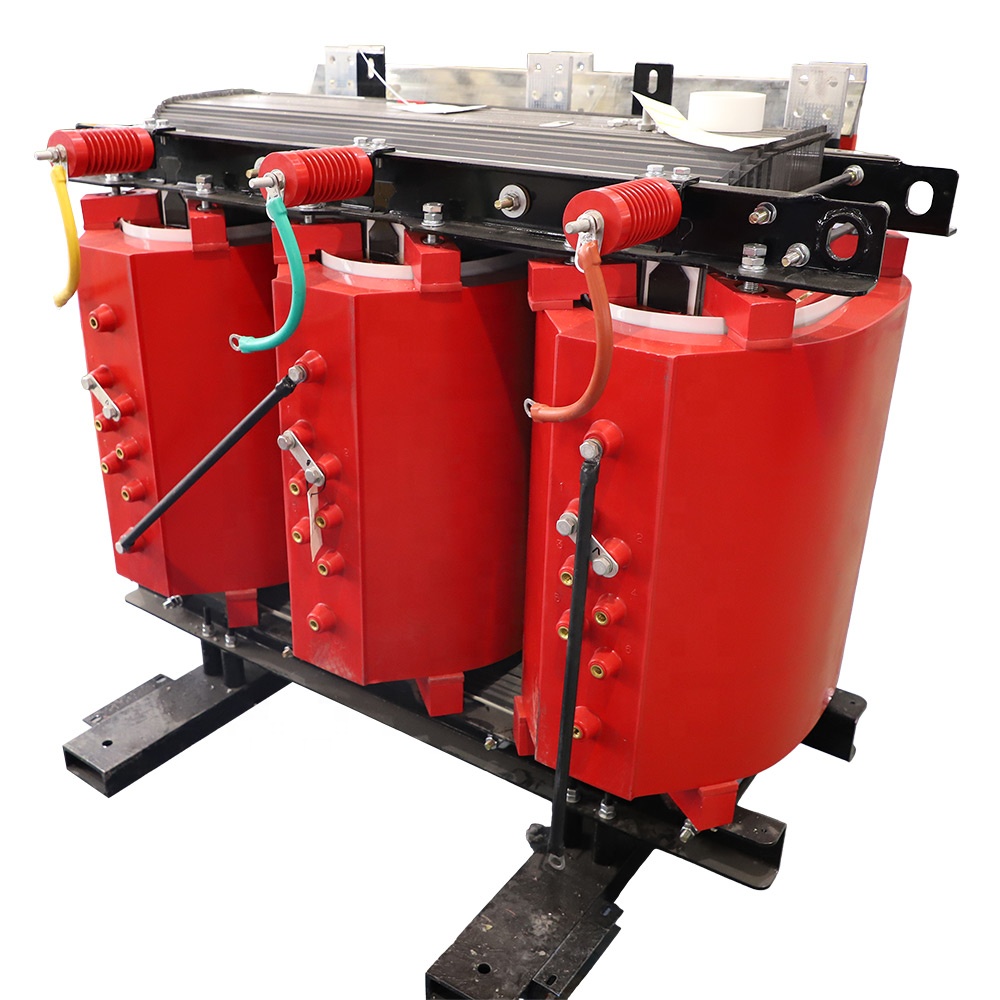

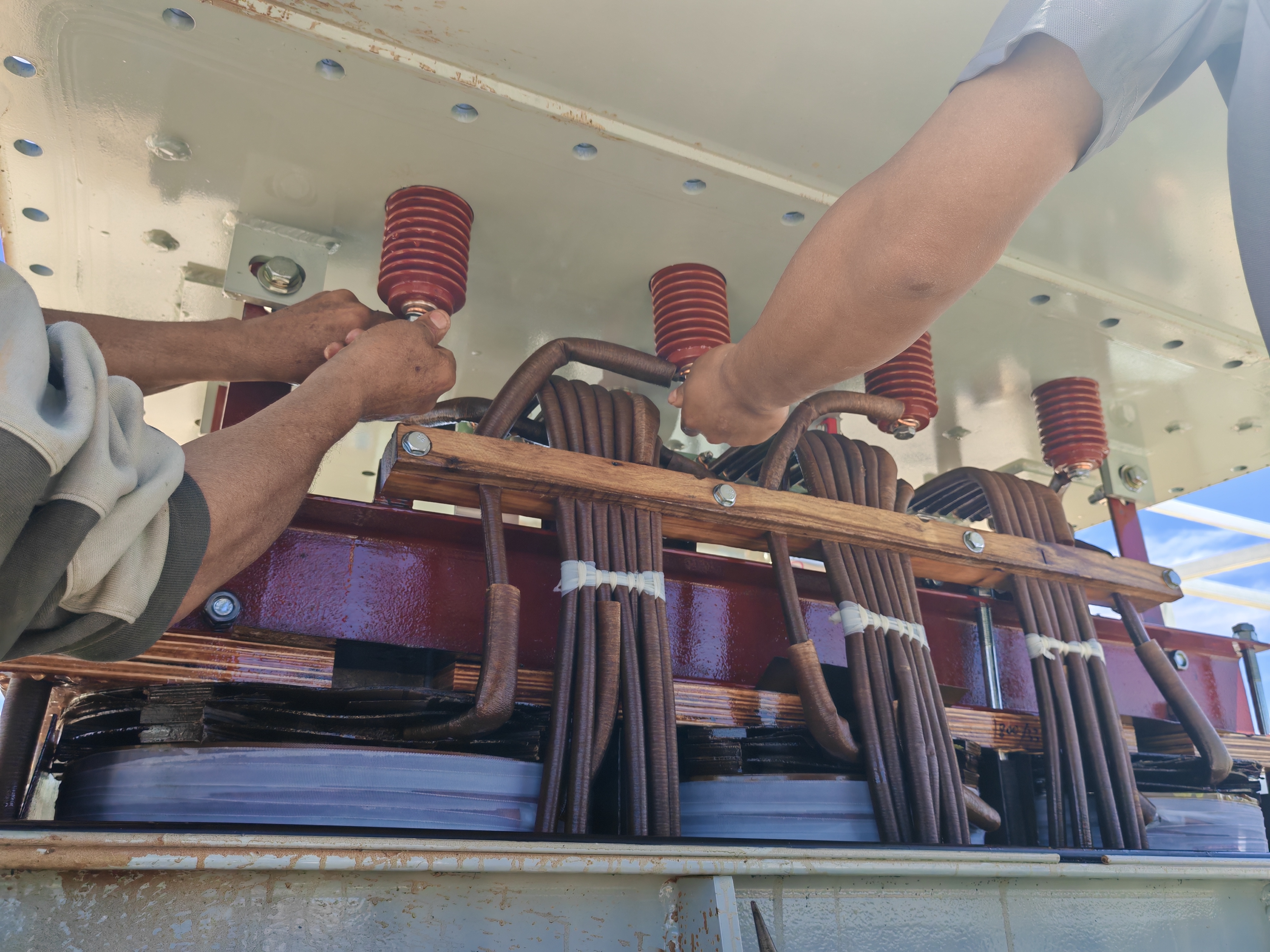

The fundamental divergence between dry type transformer and oil immersed transformer begins with their insulation systems and construction philosophies. Dry type transformers utilize solid insulation materials, primarily epoxy resin casting, which provides exceptional dielectric strength without liquid components. TSTY’s proprietary epoxy resin casting process represents the pinnacle of this technology, offering superior insulation performance and thermal stability. In contrast, oil immersed transformers rely on mineral oil or synthetic esters as both insulation and cooling media, creating fundamentally different operational characteristics and risk profiles.
| Construction Element | Dry Type Transformer | Oil Immersed Transformer |
|---|---|---|
| Insulation System | Epoxy resin casting (solid) | Mineral/synthetic oil (liquid) |
| Cooling Mechanism | Air natural (AN) or forced (AF) | Oil natural/forced circulation |
| Core Material | Cold-pressed oriented silicon steel with transparent insulation paint | Standard silicon steel with traditional coatings |
| Sealing Requirements | Fully sealed, maintenance-free design | Complex sealing with acrylic rubber gaskets |
| Environmental Suitability | IP23+ protection for harsh environments | Requires oil containment systems |
The most significant differentiator between these technologies lies in their fire safety and environmental impact profiles. Dry type transformers are inherently fireproof and explosion-proof due to their solid insulation system, eliminating catastrophic failure modes associated with liquid insulation. This makes them uniquely suited for high-rise buildings, hospitals, tunnels, subways, and other densely populated or enclosed spaces where fire risk must be minimized to near-zero levels.
Oil immersed transformers, while offering excellent thermal performance, present inherent fire hazards due to the flammability of mineral oil. Even with advanced fire suppression systems, the risk of oil ignition during faults remains a critical concern. Moreover, oil leaks pose significant environmental contamination risks, requiring elaborate containment systems and spill response protocols. TSTY’s dry type transformers completely eliminate these concerns through their zero pollution design philosophy, making them the preferred choice for environmentally sensitive applications.
When evaluating operational performance, both technologies demonstrate distinct advantages in different scenarios. Dry type transformers excel in applications demanding low noise operation and high short-circuit resistance. TSTY’s innovative seven-step 45-degree full-bevel joint core design reduces no-load losses by 3-5% compared to conventional three-step designs, while their proprietary transparent insulation paint allows visual verification of material quality and construction integrity.
Oil immersed transformers traditionally offer superior heat dissipation capabilities, allowing for higher power density in compact footprints. However, modern dry type transformers have closed this gap significantly through advanced cooling technologies. With natural air cooling (AN) or forced air cooling (AF) modes, combined with IP23 and higher protection ratings, contemporary dry type units can operate reliably in extreme environments ranging from -40°C to +120°C while maintaining thermal stability in humid, dusty, or corrosive conditions.
| Performance Parameter | Dry Type Transformer | Oil Immersed Transformer |
|---|---|---|
| Noise Level | Ultra-low (custom designs <50dB) | Moderate (typically 60-75dB) |
| Short-Circuit Withstand | Exceptional (high mechanical strength) | Good (dependent on oil condition) |
| Temperature Range | -40°C to +120°C | -25°C to +105°C |
| Partial Discharge | Minimal (epoxy resin encapsulation) | Moderate (dependent on oil quality) |
| Service Life | 30+ years | 25-30 years (with oil maintenance) |
The maintenance-free nature of dry type transformers represents a revolutionary advantage in total cost of ownership. TSTY’s fully sealed structure eliminates the need for regular oil testing, filtration, or replacement—reducing lifecycle maintenance costs by over 60% compared to oil-filled alternatives. This is particularly valuable in remote or difficult-to-access installations where maintenance logistics pose significant challenges.
Oil immersed transformers require rigorous maintenance schedules including periodic oil sampling, dissolved gas analysis, moisture content checks, and eventual oil replacement. The complexity of sealing systems—while improved with materials like acrylic rubber and H62 conductive rods—still presents potential leak points that demand monitoring. TSTY’s oil-filled units address these concerns through double-sealed structures and high-quality components, yet the fundamental maintenance requirements remain substantially higher than their dry-type counterparts.
The optimal transformer selection depends heavily on installation environment and operational priorities. Dry type transformers dominate in applications where safety, environmental protection, and minimal maintenance are paramount:
Urban Infrastructure: City grids, commercial centers, and high-rises benefit from fireproof operation and space-efficient designs
Critical Facilities: Hospitals, data centers, and transportation hubs require maximum reliability and zero contamination risk
Harsh Environments: Tunnels, mines, and coastal installations leverage superior corrosion resistance and IP-rated protection
Sustainability-Focused Projects: LEED-certified buildings and green energy installations prefer zero-emission technology
Oil immersed transformers maintain relevance in scenarios prioritizing initial cost efficiency and high power density:
Utility Substations: Large-scale distribution networks where footprint optimization is critical
Industrial Applications: Heavy manufacturing with controlled environments and established maintenance programs
Rural Electrification: Cost-sensitive deployments with adequate space for oil containment systems
The global shift toward sustainable infrastructure is accelerating the adoption of dry type transformer technology. Several key trends are reshaping the transformer landscape:
Urbanization & Space Constraints: As cities grow vertically, the fire safety and space efficiency of dry-type units become increasingly valuable
Environmental Regulations: Stricter emissions standards and spill prevention mandates favor zero-liquid technologies
Digitalization: Smart grid integration requires transformers with minimal maintenance needs and high reliability—areas where dry-type excels
Renewable Energy Integration: Solar and wind installations demand transformers capable of handling variable loads while maintaining efficiency across operating ranges
TSTY’s innovations in epoxy resin casting, core design optimization, and thermal management position their dry type transformers at the forefront of these trends. The company’s commitment to transparent manufacturing processes—evidenced by their unique transparent insulation paint—builds trust through material traceability and quality verification.
While initial purchase price often favors oil immersed transformers, a comprehensive total cost of ownership (TCO) analysis reveals a different picture when considering operational expenses:
| Cost Component | Dry Type Transformer | Oil Immersed Transformer |
|---|---|---|
| Initial Purchase | 15-20% higher | Baseline cost |
| Installation | Lower (no containment systems) | Higher (oil containment required) |
| Annual Maintenance | Minimal (inspection only) | $5,000-$15,000 (oil testing, filtration) |
| Oil Replacement | Not applicable | $20,000-$50,000 every 10-15 years |
| Disposal Costs | Lower (recyclable materials) | Higher (oil recycling/hazardous waste) |
| Insurance Premiums | Lower (reduced fire risk) | Higher (fire hazard surcharges) |
| 30-Year TCO | 25-35% lower | Baseline |
The choice between dry type transformer and oil immersed transformer technologies ultimately hinges on specific application requirements, risk tolerance, and long-term operational priorities. For modern infrastructure projects prioritizing safety, sustainability, and operational efficiency, dry type transformers represent the superior solution—particularly in urban environments, critical facilities, and environmentally sensitive locations.
TSTY’s advanced manufacturing processes, including their proprietary epoxy resin casting and innovative core design, deliver dry type transformers with exceptional performance characteristics: 30-year service life, 60%+ maintenance cost reduction, and uncompromising safety in the most demanding applications. As global standards evolve and environmental consciousness grows, the advantages of solid insulation technology become increasingly compelling.
For decision-makers evaluating transformer options, the evidence is clear: dry type transformers offer the most future-proof solution for modern electrical infrastructure, combining unparalleled safety, minimal environmental impact, and superior lifecycle economics. In the critical calculus of risk versus reward, efficiency versus reliability, the dry type transformer emerges as the definitive choice for powering our sustainable future.
