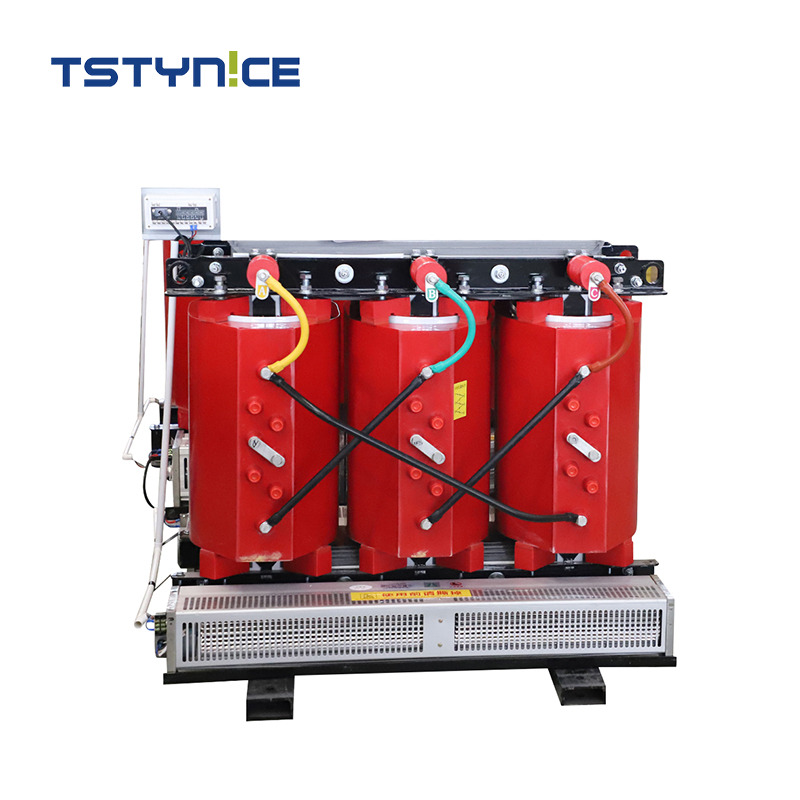

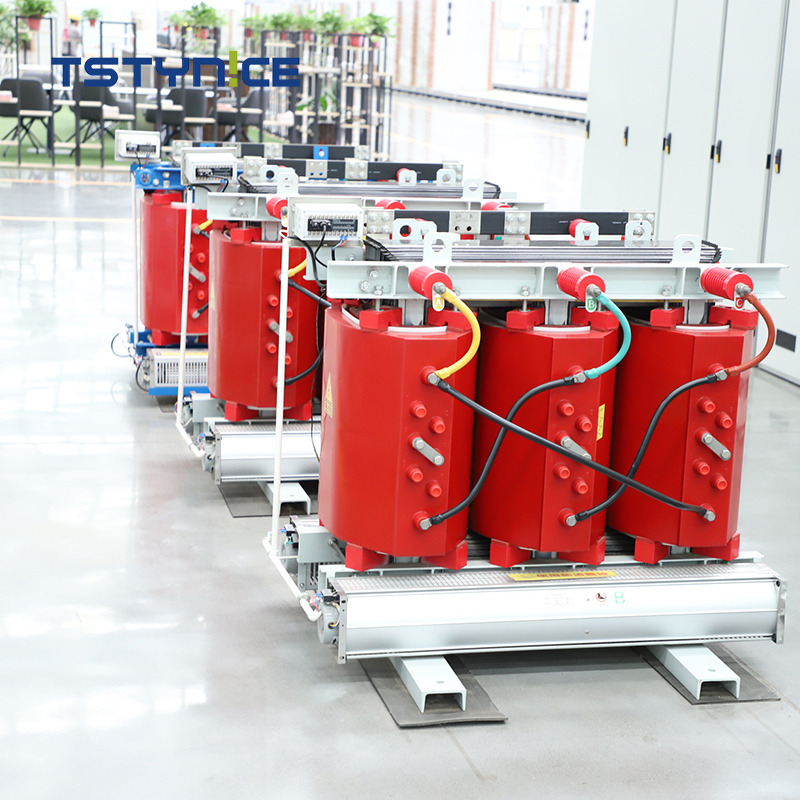

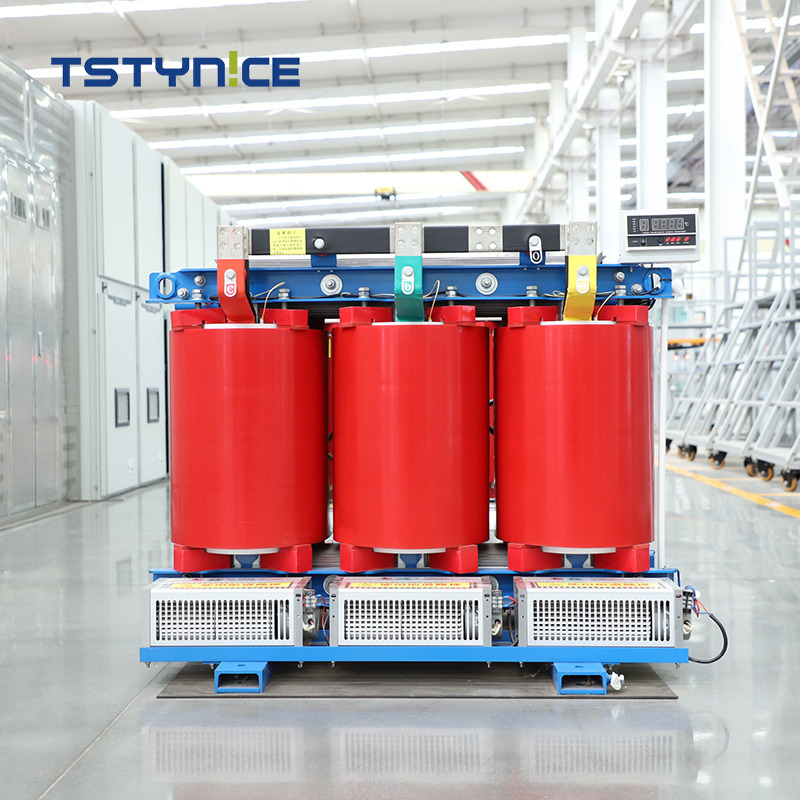

TSTYNICE 10kv Dry-type Power Transformer

Our epoxy resin cast dry-type transformers represent the forefront of non-liquid cooling technology, with both core and windings fully encapsulated in high-quality epoxy resin for superior insulation and durability. They are available in both natural air cooling (AN) and forced air cooling (AF) configurations, ensuring efficient thermal performance across a wide range of applications.

Customization Capabilities:
Voltage range: 6.6KV~35KV
Capacity range: 30KVA~5000KVA
Custom colors and dimensions available
OEM/ODM services to meet specific project needs

For detailed specifications, quotations, or project consultations, please contact us:
Email: sales@tstytransformer.com
WhatsApp: +86-18001856258
Our technical team is ready to assist you — wherever your business operates.

Availability:



Inquire

dry type transformer cast resin transformer epoxy transformer non-flammable transformer indoor power transformer industrial dry-type transformer IEC standard transformer 10kv dry type transformer mv&hv dry-type transformer substation dry-type transformer

Product Advantage

Technical Parameters

Factory Show

FAQ

Certificate Collection

Technical Advantages of epoxy resin cast dry-type transformers:

1.High reliability: using advanced technology, high mechanical strength, strong short-circuit resistance, small partial discharge, good thermal stability, and a service life of 30 years.

2. Zero pollution operation and maintenance: Using epoxy resin cast insulation material to meet high fire and explosion requirements, especially suitable for densely populated or enclosed spaces; Oil-free cooling system, eliminating the risk of oil leakage, in line with environmental protection certification; Fully sealed structure to achieve maintenance-free design, the whole life cycle operation and maintenance costs reduced by 60% +.

3. Wide voltage range adaptation: Support 6.6kV to 35kV medium and high voltage grid access, covering industrial and commercial power distribution, rail transit, new energy grid connection and other scenarios, and optimize the energy efficiency performance of different voltage levels through segmented winding design.

4. Efficient heat dissipation and weather resistance: Natural air cooling (AN) or forced air cooling (AF) mode, combined with IP23 and above protection level, can withstand -40 ° C to + 120 ° C extreme environment, humid, dusty, corrosive gas environment can still operate stably.

Quality Assurance

• 100% routine testing including:

Lightning impulse (170kV) / Partial discharge (<10pC) / Temperature rise validation

• Cerifications: IEC 60076, IEEE C57.12.01, CE, UL

Applications

High-rise Buildings
Safe, compact, and fire-resistant solution for modern urban buildings, ensuring reliable indoor power distribution with zero oil leakage.
Underground Substations
Ideal for confined or humid environments with maintenance-free design and explosion-proof insulation to support secure grid operations.
Marine Installations
Corrosion-resistant and vibration-tolerant transformer built for harsh offshore or shipboard conditions, delivering stable performance in salt-laden air.
Chemical Plants
Fire-safe and sealed transformer suitable for explosive or chemically aggressive zones, minimizing environmental risk and maximizing uptime.
Renewable Energy Systems
Grid-friendly and energy-efficient design for solar, wind, and hybrid energy systems, supporting reliable voltage transformation and environmental sustainability.

Main performance parameters for SC (B) 10 11KV voltage regulating power transformer without excitation:

Model	Rated capacity (KVA)	Connection symbol	Voltage combination (KV)			No-load loss (W)	Load loss (W)	No-load current (%)	Short circuit impedance (%)
			High-	Tapping range	Low-
			voltage	Tapping range	voltage
SC (B)10-30	30	Yyn0	11	±5%	0.4	190	710	2.4	4
SC (B)10-50	50	or	10.5	±2×2.5%		270	1000	2.4
SC (B)10-80	80	Dyn11	10			370	1380	1.8
SC (B)10-100	100		6.3			400	1570	1.8
SC (B)10-125	125		6			470	1850	1.6
SC (B)10-160	160					550	2130	1.6
SC (B)10-200	200					630	2530	1.4
SC (B)10-250	250					720	2760	1.4
SC (B)10-315	315					880	3470	1.2
SC (B)10-400	400					980	3990	1.2
SC (B)10-500	500					1160	4880	1.2
SC (B)10-630	630					1350	5880	1
SC (B)10-800	800					1520	6960	1	8
SC (B)10-1000	1000					1770	8130	1
SC (B)10-1250	1250					2090	9690	1
SC (B)10-1600	1600					2450	11730	1
SC (B)10-2000	2000					3050	14450	0.8
SC (B)10-2500	2500					3600	17170	0.8

Spanning 250,000 in Henan, our smart factory leverages 5G automation to produce 3,000+ IEC/CE-certified substations annually. With 158 patents and 99% automation, we power projects across 80+ countries.

Q: Are you a factory or trading company?

A: We are an integrated manufacturer and exporter. OEM/ODM services are supported.

Q: What are your main advantages?

A: Over 30 years of industry experience, advanced production lines, reliable quality, fast lead time, and responsive service. Free spare parts are also available for support.

Q: How fast can you deliver?

A: Delivery time depends on the order quantity. Normally 15–20 days after receiving deposit.

Q: What payment methods do you accept?

A: T/T, L/C, PayPal, Visa, Western Union — based on your order needs.

Q: Do you inspect the products before shipment?

A: Yes, we conduct 100% quality inspection before delivery.

Q: What certifications do you hold?

A: CE, SGS, ISO, IEC, GOST —all internationally recognized. We also partner with brands like DuPont, ABB, and Siemens.

Q: How can I be sure you're using quality materials?

A: We welcome material testing upon delivery. We focus on long-term partnerships, not one-time transactions.

TSTYNICE transformers hold ISO 9001, IEC 60076, CE, GOST, SGS, and BV certifications, with 158 patents (20 inventions). Our CNAS-accredited lab ensures global compliance across 80+ markets.
