Why Is My Dry Type Transformer Making a Loud Humming Noise?

A Dry-type Power Transformer is designed to run quietly in the background, so when it suddenly starts making a loud humming noise, it is natural for facility managers, engineers, and building owners to worry. In critical applications such as hospitals, data centers, commercial buildings, and industrial plants, noise is not just a comfort issue; it can be an early warning sign that something in the equipment or installation is no longer within normal limits.

In most cases, some humming from a Dry-type Power Transformer is completely normal and comes from magnetostriction and vibration in the core and windings; however, a sudden increase in noise, a harsher tone, or rattling sounds often indicates mechanical looseness, installation problems, overloading, or electrical issues that should be investigated by qualified personnel.

This article will help you distinguish between “normal hum” and “dangerous noise” in a Dry-type Power Transformer. We will connect what you hear on-site with what is happening inside the core, windings, clamping structures, and the building itself. You will learn how modern epoxy-resin cast designs with cold-rolled oriented silicon steel cores are engineered for low loss and low noise, and why even a well-designed Dry-type Power Transformer can become noisy if the installation or loading conditions are not ideal.

We will also walk through practical diagnostic steps, compare normal versus abnormal sound levels with reference to common standards such as IEC 60076 and NEMA limits, and outline concrete noise-reduction strategies. Along the way, you will see where a simple mechanical tightening or isolation pad can solve the problem, and where the sound might be warning you about more serious electrical issues inside your Dry-type Power Transformer that require immediate attention.

Finally, we will translate these insights into easy-to-use decision criteria: when you can keep monitoring, when you should plan maintenance, and when you must shut down and call a specialist. If you are responsible for specifying, purchasing, or maintaining a Dry-type Power Transformer in any commercial or industrial environment, this guide will give you a clear, practical framework.

Table of contents:

1. Why Does A Dry-type Power Transformer Hum In The First Place?

2. When Is Humming From A Dry-type Power Transformer Considered Normal?

3. What Makes A Dry-type Power Transformer Suddenly Get Louder?

4. How Installation Conditions Amplify Dry-type Power Transformer Noise

5. Which Electrical Problems Can Cause Abnormal Noise In A Dry-type Power Transformer?

6. How To Diagnose The Source Of Noise In A Dry-type Power Transformer

7. Practical Ways To Reduce Noise From A Dry-type Power Transformer

8. When Is A Noisy Dry-type Power Transformer A Safety Risk?

9. Conclusion

Why Does A Dry-type Power Transformer Hum In The First Place?

A Dry-type Power Transformer hums mainly because magnetostriction and electromagnetic forces make its core laminations and windings expand, contract, and vibrate at twice the system frequency, which creates the familiar low-frequency humming sound even when the equipment is operating normally.

In every Dry-type Power Transformer, alternating current in the windings creates an alternating magnetic flux in the core. The silicon-steel laminations that form the core change their dimensions slightly when magnetized and demagnetized; this phenomenon is called magnetostriction. Because the flux changes direction twice every cycle, the core tends to vibrate at about 100 hertz in a 50 hertz system or 120 hertz in a 60 hertz system, which the human ear perceives as a steady hum.

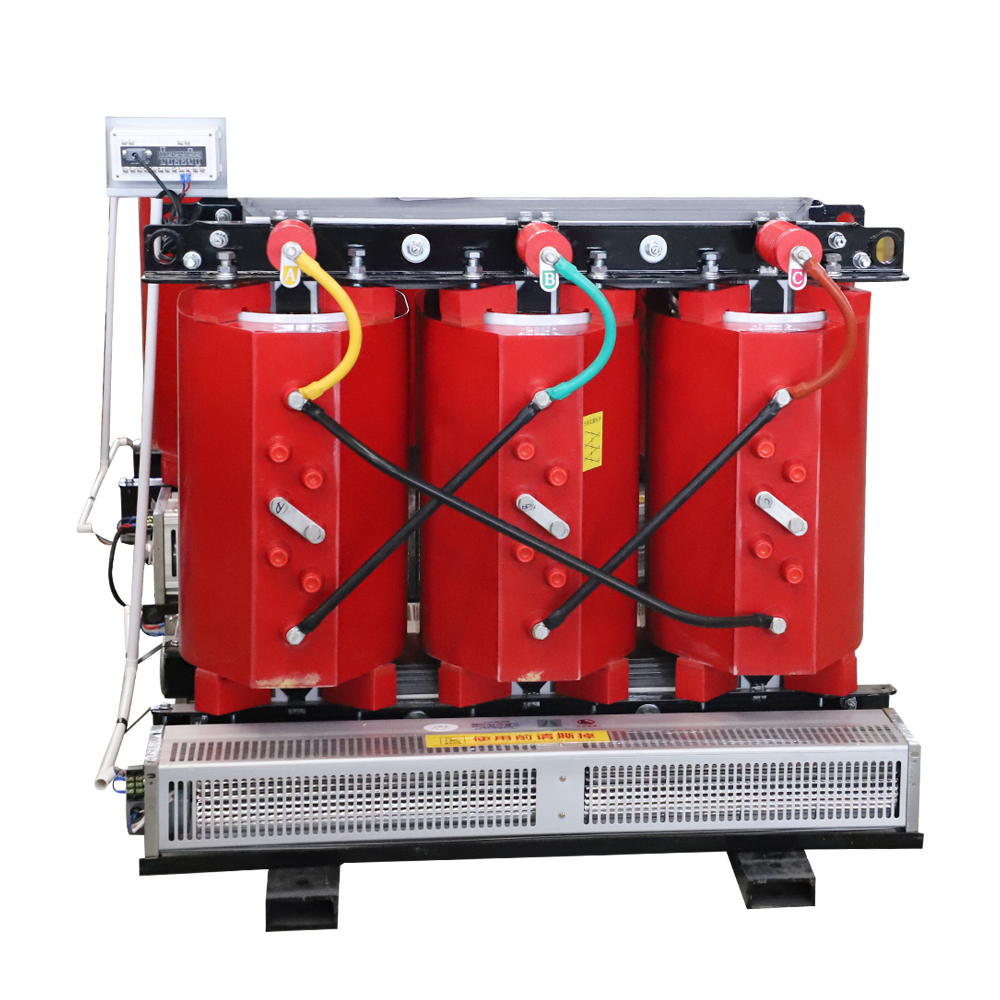

The windings of a Dry-type Power Transformer also experience mechanical forces. Under load, electromagnetic attraction between conductors causes the coils to move slightly. In a high-quality epoxy resin cast Dry-type Power Transformer, the windings are encapsulated and rigidly fixed, so this movement is minimized. The resin casting, along with a carefully designed core clamping structure, is specifically intended to reduce mechanical vibration, lower noise, and increase resistance to short-circuit forces.

Even when mechanical structures are well controlled, the Dry-type Power Transformer is mounted in a real acoustic environment. The base frame, the floor, and surrounding walls can all act as sounding boards that make the vibrations more audible. Concrete rooms, corners, and small electrical closets tend to reflect and amplify the sound. This is why a Dry-type Power Transformer that meets factory noise limits measured in an anechoic or controlled test area may seem louder once installed in a building.

When Is Humming From A Dry-type Power Transformer Considered Normal?

Humming from a Dry-type Power Transformer is considered normal when the sound is steady, low in volume, does not change significantly with time or load, and measured noise levels remain within the limits set by standards such as IEC 60076-10 and NEMA ST-20 for the transformer’s kVA rating.

Noise from a Dry-type Power Transformer is not inherently a defect. International and national standards define how to measure transformer noise in decibels at a distance of one meter and specify maximum sound levels based on power rating and construction. IEC 60076-10, for example, describes methods for determining sound levels, and many guidance documents note that medium-size dry-type transformers under about 2500 kVA typically should not exceed roughly 55 to 60 dB at one meter under rated conditions.

In practice, this means that a typical Dry-type Power Transformer will sound somewhat like normal conversation level when you stand a meter away. The hum should be smooth, without sharp rattles or metallic knocking. It may get slightly louder when the transformer is heavily loaded, but the change should be gradual. Modern epoxy-resin cast designs with mitered core joints and optimized clamping can reduce no-load loss by several percentage points and achieve significantly lower noise than older designs, while keeping the Dry-type Power Transformer compact and easier to install close to the load center.

You should also consider the environment: in a quiet office building, even a transformer that meets noise standards may be perceived as loud simply because the background noise is very low. In a factory with machinery noise, the same Dry-type Power Transformer may be barely noticeable. Therefore, “normal” includes both technical criteria (dB levels and tone quality) and site context (background noise, room acoustics, and proximity to occupants). A steady, unchanging hum that matches design expectations usually indicates that the Dry-type Power Transformer is operating correctly.

To make this more concrete, the table below gives illustrative values for what is generally considered normal for many distribution-class dry-type units, based on typical industry guidance.

These values are indicative, not exact specifications, but they give a reference when deciding whether the noise from your Dry-type Power Transformer is in a normal range.

What Makes A Dry-type Power Transformer Suddenly Get Louder?

A Dry-type Power Transformer usually becomes noticeably louder when mechanical parts loosen, when the core is stressed by overvoltage or harmonics, when the load increases significantly, or when installation changes cause its existing vibration to be amplified by structures around it.

If a Dry-type Power Transformer that has been operating quietly for years suddenly seems much louder, you should treat that change as a diagnostic clue. One frequent cause is mechanical loosening: core clamping bolts, winding supports, and mounting hardware can relax over time under vibration and thermal cycling. When these components lose preload, the core laminations and structural members are freer to move, and the transformer hum turns into a rougher, louder buzz or rattling sound. Epoxy cast designs reduce such movement, but they still rely on proper clamping of the core and secure mounting of the transformer enclosure.

Another reason a Dry-type Power Transformer can get louder is a change in its electrical operating conditions. Overvoltage, high harmonic content from non-linear loads (such as variable frequency drives, UPS systems, and LED lighting), or operation above rated load all increase magnetic flux and mechanical forces in the core and windings. According to many technical explanations of transformer noise, higher flux magnifies magnetostriction and core vibration, so more hum is inevitable. Harmonics can also introduce new frequency components, making the sound harsher or more complex.

The acoustic environment around a Dry-type Power Transformer can also change over time. Adding reflective surfaces such as metal ducting, enclosing the transformer in a smaller room, or rigidly connecting the transformer base to building steel without isolation pads can transform the same mechanical vibration into a much louder perceived noise for nearby occupants. Even structural changes unrelated to the transformer itself, such as installing a new raised floor or drywall partition, can create resonance that amplifies the hum without any change in the transformer’s internal condition.

How Installation Conditions Amplify Dry-type Power Transformer Noise

Installation conditions amplify Dry-type Power Transformer noise when rigid mounting, resonant foundations, reflective walls, or small rooms act like acoustic amplifiers, turning normal mechanical vibration into loud, annoying hum for people nearby.

When manufacturers design a Dry-type Power Transformer, they typically measure and optimize its noise in controlled factory conditions. The transformer is placed on a test floor, often with some isolation, and sound levels are measured at specified distances and positions following standards such as IEC 60076-10. Once you install that same Dry-type Power Transformer on-site, however, it becomes part of a much more complicated mechanical and acoustic system that can either damp or amplify the vibration.

For example, if a Dry-type Power Transformer is mounted directly on a concrete floor without vibration pads, its core and winding vibration can be transmitted into the slab. The slab can then act as a large sound radiator, especially if the room has hard surfaces that reflect sound. Corners, narrow electrical rooms, and low ceilings further concentrate and reflect the sound, sometimes increasing the perceived noise by more than 10 dB compared to measurements taken in an open space. In practical terms, that can make the Dry-type Power Transformer sound twice as loud to human ears, even if its mechanical vibration has not changed.

Resonance also matters: if the natural frequency of the mounting structure or nearby walls is close to the dominant vibration frequency of the Dry-type Power Transformer (often around 100 or 120 hertz), these structures will vibrate more strongly. That makes hum especially noticeable in adjacent rooms, corridors, and floors. The same Dry-type Power Transformer mounted with isolation springs or pads on a stiff base frame can sound much quieter, because less vibration energy reaches the building structure and less sound is radiated into occupied spaces.

By thinking of the installation as part of the system, you can often address “loud transformer” complaints without touching the windings or core at all. Proper mounting, isolation, and room acoustic treatment can be as important as the transformer’s own design for keeping a Dry-type Power Transformer quiet.

Which Electrical Problems Can Cause Abnormal Noise In A Dry-type Power Transformer?

Electrical problems that can cause abnormal noise in a Dry-type Power Transformer include overvoltage, unbalanced phases, high harmonic distortion, loose or overheating connections, partial discharge in insulation, and incipient winding faults that change the way magnetic forces act on the core and coils.

While many noise issues in a Dry-type Power Transformer are mechanical or installation-related, electrical conditions play a major role in how loud the transformer becomes. Overvoltage increases magnetic flux in the core, pushing it closer to saturation. When the core approaches saturation, magnetostriction increases nonlinearly, and the core laminations can vibrate much more, causing a noticeable jump in hum level. Unbalanced phase voltages and loads cause uneven magnetic forces and can create beat frequencies that make the sound pulsate or throb instead of remaining steady.

Harmonic currents from non-linear loads are particularly important for modern Dry-type Power Transformer installations in commercial and industrial buildings. Third harmonics and higher-order harmonics produce additional flux components at multiples of the fundamental frequency. These harmonics can excite different vibration modes in the core and windings, making the hum harsher or adding high-frequency buzzing. If the transformer was originally specified without considering high harmonic loading, its audible noise under real operating conditions may significantly exceed what was predicted from standard sinusoidal tests.

Another serious cause of abnormal noise is partial discharge and insulation degradation inside a Dry-type Power Transformer. Epoxy resin cast windings are designed for low partial discharge and high dielectric strength, but contamination, moisture ingress, or aging can lead to localized discharges that produce crackling or sizzling sounds, quite different from a smooth hum. Manufacturers emphasize that high-quality casting processes and controlled insulation systems are used to keep partial discharge levels very low, contributing to both reliability and low noise. A sudden appearance of irregular crackling or hissing noise in a Dry-type Power Transformer can be an early warning sign of insulation problems and should be investigated immediately using appropriate testing.

How To Diagnose The Source Of Noise In A Dry-type Power Transformer

To diagnose noise in a Dry-type Power Transformer, you should first distinguish normal hum from abnormal sounds, then systematically check loading, electrical parameters, mechanical tightness, mounting, and room acoustics, using both listening and measurement tools to pinpoint whether the cause is electrical, mechanical, or environmental.

The diagnostic process starts with listening carefully. Ask: has the Dry-type Power Transformer always been this loud, or did it change recently? Is the noise a smooth hum, a harsh buzz, a metallic rattle, or a crackling hiss? A steady low-frequency hum suggests normal magnetostriction; rattling indicates loose hardware; sharp buzzing or sizzling may point to electrical issues such as arcing or partial discharge. Document when the noise is worse: at high load, during certain times of day, or after ambient temperature changes.

Next, evaluate the operating conditions of the Dry-type Power Transformer. Check voltage, current, and temperature against nameplate ratings and design data. High load current, especially with elevated temperatures, can increase noise. Measure or estimate harmonic distortion if the transformer feeds large non-linear loads. Confirm that the transformer is not overloaded and that phase currents are reasonably balanced. If possible, compare current noise levels with factory test data or typical noise specifications for similar dry-type units under IEC 60076-10 and related standards.

Then move to a mechanical and installation inspection. With the Dry-type Power Transformer safely de-energized and locked out according to your site’s safety procedures, check that core clamping bolts and structural fasteners are tight within the manufacturer’s recommended torque range. Inspect windings, support blocks, and enclosure panels for signs of looseness, corrosion, or cracking. Confirm that the transformer’s base is flat, that any vibration pads are intact, and that there are no rigid conduits or cable trays acting as vibration bridges to sensitive areas. In many cases, a combination of listening, a sound level meter, and a structured checklist can quickly identify whether the noise is primarily electrical, mechanical, or acoustic in nature before more advanced tests are required.

Practical Ways To Reduce Noise From A Dry-type Power Transformer

Practical ways to reduce noise from a Dry-type Power Transformer include optimizing loading and voltage, tightening mechanical structures, improving mounting with vibration isolation, treating the room acoustics, and, if necessary, upgrading to a low-noise transformer design that uses advanced core and casting technology.

From an electrical standpoint, start by ensuring that the Dry-type Power Transformer operates within its rated voltage, current, and temperature range. Where possible, avoid sustained overvoltage, reduce unnecessary overloading, and manage harmonic-producing loads with filters or separate transformers. Reducing flux density and current reduces magnetostriction forces and winding vibration, which directly lowers hum. In some cases, selecting a transformer with a higher kVA rating than the minimum needed can lead to quieter operation because it runs further below its thermal and magnetic limits.

Mechanically, many noise complaints can be solved by improving clamping and isolation. With the Dry-type Power Transformer de-energized, re-torque core bolts and structural fasteners according to the manufacturer’s instructions. Replace worn or hardened isolation pads with new ones. Ensure that the transformer base frame is stiff and that it is not bridging directly into light, resonant building elements. If necessary, add resilient mounts or spring isolators to decouple vibration from the structure. These measures reduce the transfer of mechanical energy from the Dry-type Power Transformer into floors and walls, often producing a noticeable reduction in audible noise in adjacent spaces.

Room acoustic treatment is another powerful tool. Absorbing materials on walls and ceilings near the Dry-type Power Transformer can reduce reflected sound, and enclosures with acoustic lining can shield occupied areas from direct noise while still allowing sufficient ventilation. When planning new installations, placing the Dry-type Power Transformer away from critical occupied spaces, avoiding resonant corners, and designing a dedicated electrical room with appropriate acoustic absorption can prevent noise issues before they start. If you are replacing an older unit, consider specifying a Dry-type Power Transformer with low-loss, low-noise design features such as cold-rolled oriented silicon steel cores with multi-step miter joints, optimized clamping, and high-quality epoxy resin casting, which together can reduce both no-load losses and mechanical vibration compared to older designs.

To summarize practical options, the following table lists common causes and corresponding mitigation strategies for a noisy Dry-type Power Transformer:

These actions, implemented systematically, can restore a Dry-type Power Transformer to acceptable noise levels and extend its reliable service life.

When Is A Noisy Dry-type Power Transformer A Safety Risk?

A noisy Dry-type Power Transformer becomes a safety risk when the sound suddenly changes, includes crackling or arcing noises, is accompanied by overheating, odors, or visible damage, or indicates severe overloading or insulation breakdown that could lead to failure or fire.

Most of the time, increased noise from a Dry-type Power Transformer is a comfort or reliability issue rather than an immediate hazard. However, certain sound patterns and associated symptoms should be treated as warning signs. If the hum changes quickly from smooth to very harsh, or if you hear intermittent popping, crackling, or sizzling, it could indicate loose high-voltage connections, partial discharge in resin insulation, or arcing at terminals. These conditions can damage insulation, generate heat, and, in extreme cases, evolve into faults that threaten the transformer and nearby equipment.

Excessive loading of a Dry-type Power Transformer can also turn into a safety risk. Operating well above rated load for extended periods leads to high temperatures in windings and core, accelerating insulation aging and potentially causing hot spots. If the transformer is simultaneously noisy and running near temperature limits, or if protective devices trip repeatedly, you should treat the situation as urgent. Technical guidance notes that Dry-type Power Transformers are designed for maintenance-free operation with low loss and low noise when used within rating; persistent overload undermines these assumptions and may cause insulation breakdown and failure.

Environmental factors matter as well. A Dry-type Power Transformer installed in a confined, poorly ventilated room may overheat more easily. If you observe a combination of loud noise, rising temperature, smell of hot insulation or resin, or visible discoloration on windings or enclosure, you should shut down the transformer following your formal safety procedures and call qualified service personnel. Likewise, any noise accompanied by visible sparking, smoke, or tripping of upstream protection should be treated as an immediate safety event. In short, treat noise as one diagnostic input alongside temperature, protection behavior, and visual inspection when assessing the safety status of your Dry-type Power Transformer.

Conclusion

A Dry-type Power Transformer will always produce some humming noise due to magnetostriction and electromagnetic forces in its core and windings, but a sudden increase in volume, a change in tone, or additional rattling or crackling sounds usually means that mechanical, installation, or electrical issues are driving the transformer outside its intended operating envelope and should be systematically diagnosed and corrected.

By understanding the physics behind transformer hum, you can separate normal behavior from warning signs. A Dry-type Power Transformer that meets IEC and NEMA noise limits, uses high-quality epoxy resin cast windings and optimized silicon steel cores, and is properly clamped and mounted will normally operate with low, steady hum that blends into the background of a typical building. When noise grows louder or rougher, a structured inspection of loading, voltage, harmonics, mechanical tightness, isolation, and room acoustics can usually identify the root cause and point to practical solutions, from re-torquing bolts and adding isolation pads to adjusting load profiles or upgrading to a low-noise design.

Ultimately, noise is both a comfort issue for occupants and a valuable diagnostic signal for engineers. Treat the sound of your Dry-type Power Transformer as an ongoing health indicator: establish what “normal” sounds like after installation, monitor changes over time, and respond promptly to abnormal patterns. Doing so will help you maintain reliability, protect equipment and people, and ensure that your Dry-type Power Transformer continues to deliver safe, efficient power with minimal disruption to the spaces it serves.
