The reliability of a power grid is intrinsically linked to the thermal management of its most expensive assets. A Three Phase Oil Immersed Transformer is subject to massive thermal stresses during its operation, as the process of voltage transformation inevitably results in energy losses. These losses manifest as heat within the core and windings. Without sophisticated cooling strategies, the dielectric strength of the insulating oil would diminish, and the cellulose insulation would become brittle, leading to premature aging or catastrophic failure of the Oil Immersed Distribution Transformer.
Power transformer cooling methods are standardized systems designed to dissipate internal heat using various combinations of natural or forced circulation of oil and air; the most common methods include ONAN (Oil Natural Air Natural) for standard distribution, ONAF (Oil Natural Air Forced) for increased capacity, and OFAF (Oil Forced Air Forced) for high-capacity power transmission in a Three Phase Oil Immersed Transformer.
Selecting the appropriate cooling method is not merely a technical choice but an economic one that impacts the total cost of ownership and the operational footprint of the unit. In the following sections, we will break down the nomenclature of these systems, explore the physics behind heat transfer in a Three Phase Oil Immersed Transformer, and compare the efficiency of different configurations. Whether you are dealing with a standard Oil Immersed Distribution Transformer or a high-voltage Oil Natural Air Forced Transformer, understanding these cooling classes is essential for modern electrical engineering.
Why Is Cooling Important in Power Transformers?
What Does the ONAN Cooling Method Mean in Power Transformers?
What Is the ONAF Cooling System and When Is It Used?
How Does the OFAF Cooling Method Work in Power Transformers?
What Is OFWF Cooling and Where Is It Applied?
How Do You Select the Right Cooling Method for a Transformer?
Perspectives from Industry Specialists on Cooling Technology
Conclusion
FAQ

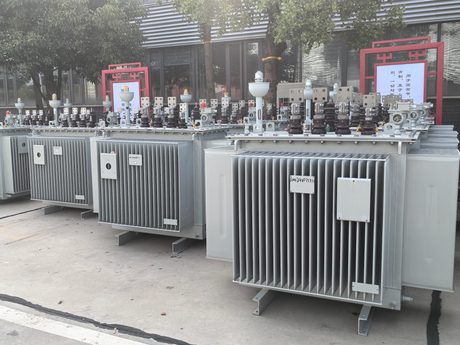

Cooling is vital in a Three Phase Oil Immersed Transformer to prevent the degradation of internal insulation and to ensure the unit can handle its rated load without exceeding safe thermal limits.
The primary reason for cooling any Three Phase Oil Immersed Transformer is to protect the solid insulation. In an Oil Immersed Distribution Transformer, the copper windings are wrapped in paper and submerged in mineral oil. As heat is generated by $I^2R$ losses and hysteresis, the temperature rises. For every 8°C to 10°C increase above the rated temperature, the life of the insulation in a Three Phase Oil Immersed Transformer is effectively halved. Effective cooling ensures that the "hot spot" temperature remains within manageable levels.
Furthermore, cooling affects the physical density and chemical stability of the insulating oil. In a Three Phase Oil Immersed Transformer, the oil acts as both a coolant and a dielectric barrier. If the oil overheats, it can undergo oxidation, producing sludge and acids that further attack the windings of the Oil Immersed Distribution Transformer. By maintaining a steady temperature, the cooling system preserves the oil's ability to prevent electrical arcs and internal short circuits.
From a capacity perspective, the cooling method determines the maximum power a Three Phase Oil Immersed Transformer can safely deliver. For example, upgrading an Oil Immersed Distribution Transformer with external fans to create an Oil Natural Air Forced Transformer allows it to carry a higher load than its base rating. This flexibility is crucial for utility companies managing fluctuating demand across the grid, allowing them to extract more value from a single Three Phase Oil Immersed Transformer installation.

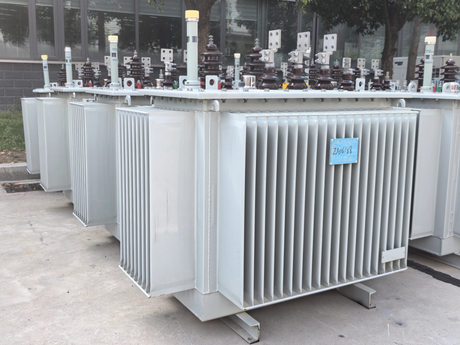

ONAN stands for Oil Natural Air Natural, a cooling method where both the internal oil and the external air circulate via natural convection to dissipate heat from the Three Phase Oil Immersed Transformer.
In an ONAN-rated Three Phase Oil Immersed Transformer, the process is entirely passive. As the windings heat up, the surrounding oil becomes less dense and rises to the top of the tank. It then enters the radiator banks, where it loses heat to the ambient air. As the oil cools, it becomes denser and sinks back to the bottom of the Oil Immersed Distribution Transformer tank. This cycle, known as the thermosiphon effect, requires no pumps or external power, making it the most reliable method for a Three Phase Oil Immersed Transformer.
The "Air Natural" part of the acronym refers to the way heat is removed from the radiators. Ambient air moves across the radiator fins naturally as it is heated by the metal surface. This makes the ONAN Oil Immersed Distribution Transformer very quiet and virtually maintenance-free, as there are no moving parts like fans or pumps to fail. It is the standard cooling configuration for the majority of Three Phase Oil Immersed Transformer units used in residential and light industrial areas.
However, because the cooling relies on natural movement, the radiators on an ONAN Three Phase Oil Immersed Transformer must be relatively large to provide sufficient surface area. This increases the overall dimensions of the Oil Immersed Distribution Transformer. Despite the larger footprint, the simplicity of ONAN makes it the preferred choice for an Oil Immersed Distribution Transformer rated below 30 MVA, where reliability and low noise are prioritized over power density.
The ONAF or Oil Natural Air Forced Transformer system uses external electric fans to blow air across the radiators, significantly increasing the heat dissipation rate of a Three Phase Oil Immersed Transformer compared to natural convection.
An Oil Natural Air Forced Transformer operates on the same internal principle as an ONAN unit—the oil still circulates naturally via the thermosiphon effect. However, the addition of fans on the radiator banks changes the external cooling dynamics. By forcing air over the fins, the Oil Natural Air Forced Transformer can remove heat much faster, allowing the Three Phase Oil Immersed Transformer to handle an increased load—often up to 133% of its base ONAN rating.
This method is typically used when a Three Phase Oil Immersed Transformer needs to handle peak loads that exceed its normal capacity. The fans are usually controlled by temperature sensors; they only kick in when the oil temperature in the Oil Immersed Distribution Transformer reaches a certain set point. This ensures that the Oil Natural Air Forced Transformer remains energy-efficient, using auxiliary power only when absolutely necessary to protect the internal components of the Three Phase Oil Immersed Transformer.
In modern substations, the Oil Natural Air Forced Transformer is a popular choice because it offers a "dual rating" (e.g., 20/26 MVA). This means the Three Phase Oil Immersed Transformer can operate at 20 MVA under ONAN conditions and 26 MVA under ONAF conditions. This versatility makes the Oil Natural Air Forced Transformer ideal for growing urban areas where power demand may spike during summer months, requiring the Oil Immersed Distribution Transformer to work harder without overheating.
OFAF stands for Oil Forced Air Forced, a system where both the oil and the air are moved mechanically using pumps and fans to achieve maximum cooling efficiency in a high-capacity Three Phase Oil Immersed Transformer.
The OFAF method is reserved for very large Three Phase Oil Immersed Transformer units where natural convection is insufficient to remove the massive amounts of heat generated. In this setup, an oil pump is integrated into the cooling circuit of the Oil Immersed Distribution Transformer. The pump forces the hot oil through the radiators at a high velocity, while fans simultaneously force air over the radiator surfaces. This dual-forced approach allows for a very compact Three Phase Oil Immersed Transformer design relative to its power output.
By forcing the oil to move, the OFAF system eliminates the slow "warm-up" period required for a thermosiphon to start in a standard Oil Immersed Distribution Transformer. The heat transfer from the windings to the oil is much more uniform, reducing the risk of internal hot spots within the Three Phase Oil Immersed Transformer. However, because it relies on pumps, this cooling method requires more frequent maintenance and a reliable auxiliary power source to keep the Oil Immersed Distribution Transformer operational.
While highly effective, the OFAF method is rarely used for a standard Oil Immersed Distribution Transformer. It is typically seen in generator step-up transformers or major transmission substations. For most distribution needs, an Oil Natural Air Forced Transformer provides a better balance of complexity and performance. The OFAF Three Phase Oil Immersed Transformer is the "heavy-duty" athlete of the transformer world, designed for constant high-intensity heat rejection.
OFWF or Oil Forced Water Forced cooling uses a heat exchanger where oil is pumped through a chamber cooled by circulating water, offering the most efficient heat transfer for a Three Phase Oil Immersed Transformer in space-constrained or high-temperature environments.
Water is a much more efficient heat transfer medium than air. In an OFWF Three Phase Oil Immersed Transformer, the oil is pumped through a heat exchanger where it comes into close contact with pipes carrying cold water. This allows a massive amount of heat to be removed from the Oil Immersed Distribution Transformer in a very small physical space. This is significantly more compact than even an Oil Natural Air Forced Transformer, making it ideal for underground substations or hydroelectric power plants.
The application of OFWF in a Three Phase Oil Immersed Transformer is specialized. Because water and electricity are a dangerous combination, the heat exchanger must be designed with double-walled tubes to prevent any leakage of water into the Oil Immersed Distribution Transformer tank. Despite these complexities, the OFWF system allows a Three Phase Oil Immersed Transformer to operate in locations where ambient air temperatures are too high for effective air cooling, or where there is no room for large radiator banks.
One drawback of this method for a Three Phase Oil Immersed Transformer is the need for a continuous water supply and a water treatment system to prevent scaling in the pipes. Unlike an Oil Natural Air Forced Transformer, which uses the "free" air around it, the OFWF Oil Immersed Distribution Transformer has higher operational costs. However, for specific industrial and power generation sites, it is the only viable way to keep a high-power Three Phase Oil Immersed Transformer within safe temperature limits.
Selecting the right cooling method involves balancing the MVA rating, the expected load profile, ambient environmental conditions, and the available maintenance budget for the Three Phase Oil Immersed Transformer.
When choosing between ONAN and an Oil Natural Air Forced Transformer, engineers first look at the capacity. For a small Oil Immersed Distribution Transformer (e.g., 500 kVA to 2500 kVA), ONAN is almost always the best choice due to its simplicity. As the rating of the Three Phase Oil Immersed Transformer increases toward 10 MVA or 20 MVA, the size of the radiators required for ONAN becomes prohibitive, making the Oil Natural Air Forced Transformer configuration much more attractive.
| Cooling Method | Power Rating Suitability | Maintenance Level | Noise Level | Ideal Environment |
| ONAN | Small to Medium | Very Low | Silent | Residential/Standard |
| ONAF | Medium to Large | Low/Medium | Moderate | Urban/Fluctuating Load |
| OFAF | Very Large | High | High | Transmission Substations |
| OFWF | Extremely Large | Very High | Low | Hydro/Underground |
Environmental factors also play a massive role. In a dusty or salty coastal environment, the fans on an Oil Natural Air Forced Transformer may require frequent cleaning to prevent the radiators from clogging. In such cases, a slightly oversized ONAN Three Phase Oil Immersed Transformer might be more cost-effective over its 30-year lifespan. Conversely, in a confined indoor space, the high efficiency of an Oil Immersed Distribution Transformer with forced cooling is necessary to prevent heat build-up in the room.
Finally, the load profile dictates whether you need an Oil Natural Air Forced Transformer. If the Three Phase Oil Immersed Transformer will run at a steady 70% load year-round, ONAN is sufficient. But if the unit must handle 120% load during heatwaves or industrial shifts, the ONAF fans provide the necessary safety margin. Selecting the right cooling for an Oil Immersed Distribution Transformer is essentially an exercise in optimizing the "thermal headroom" of the Three Phase Oil Immersed Transformer.
Understanding how different market leaders view Three Phase Oil Immersed Transformer cooling provides a clearer picture of global trends and best practices.
Taishan Transformer Platform: They emphasize that the transition from ONAN to ONAF is one of the most cost-effective ways to increase substation capacity. Their perspective is that for a Three Phase Oil Immersed Transformer, the "A" (Air) side of the equation is often the bottleneck. By focusing on high-efficiency fan designs, they argue that an Oil Natural Air Forced Transformer can be made much more compact than traditional designs. They also highlight that for an Oil Immersed Distribution Transformer, the choice of cooling mineral oil is just as important as the mechanical fans.
Giga Energy Platform: This source focuses heavily on the maintenance and reliability aspect of the Three Phase Oil Immersed Transformer. They point out that while OFAF and OFWF systems are technically superior in heat rejection, the ONAN system remains the "gold standard" for rural and remote Oil Immersed Distribution Transformer sites. Their view is that the Oil Natural Air Forced Transformer represents the ideal middle ground for the majority of utility applications, provided that the control systems for the fans are robust and weather-protected.
Thermal management is the silent guardian of the power grid. Every Three Phase Oil Immersed Transformer depends on its cooling system to survive the harsh realities of electrical resistance and magnetic friction. From the quiet reliability of the ONAN Oil Immersed Distribution Transformer to the high-performance capabilities of the Oil Natural Air Forced Transformer, these cooling methods are what allow our electrical infrastructure to scale and adapt to modern demands.
As we move toward a more digital and power-hungry future, the efficiency of the Three Phase Oil Immersed Transformer will become even more critical. Innovations in biodegradable oils and smart fan controls are making the Oil Natural Air Forced Transformer more sustainable and intelligent. By carefully matching the cooling method to the specific needs of the installation, engineers can ensure that every Oil Immersed Distribution Transformer delivers safe, reliable power for decades to come.
In summary, the choice between ONAN, ONAF, and OFAF is a decision that balances physical space, initial cost, and long-term reliability. For most distribution needs, the Three Phase Oil Immersed Transformer with ONAN or ONAF cooling remains the most effective solution, providing the durability needed to keep the lights on in our communities.
In a Three Phase Oil Immersed Transformer, ONAN relies on natural air movement, while ONAF uses fans to force air across the radiators. This allows an Oil Natural Air Forced Transformer to carry a higher load than an ONAN unit of the same size.
Often, yes. Many an Oil Immersed Distribution Transformer is built with radiator brackets that can accommodate fans. Adding fans converts it into an Oil Natural Air Forced Transformer, effectively increasing its power rating.
For high-voltage and outdoor applications, the Three Phase Oil Immersed Transformer is generally superior because oil is a much better coolant and insulator than air. However, dry-type transformers are preferred for indoor locations where fire safety is a primary concern.
On an Oil Natural Air Forced Transformer, fans should be inspected at least once a year for bearing wear and dust accumulation. This ensures the Three Phase Oil Immersed Transformer remains protected during peak load periods.
